Genie TZ-50
Aerial
Equipment Specifications
Horizontal Reach | 29 ft 2 in | 8.89 m |
---|---|
Max Platform Height | 49 ft 6 in | 15.09 m |
Platform Capacity | 500 lbs | 227 kg |
Up and Over Clearance | 22 ft | 6.7 m |
Weight | 4,400 lb | 1,996 kg |
Horizontal Reach | 29 ft 2 in | 8.89 m |
---|---|
Max Platform Height | 49 ft 6 in | 15.09 m |
Platform Capacity | 500 lbs | 227 kg |
Up and Over Clearance | 22 ft | 6.7 m |
Weight | 4,400 lb | 1,996 kg |

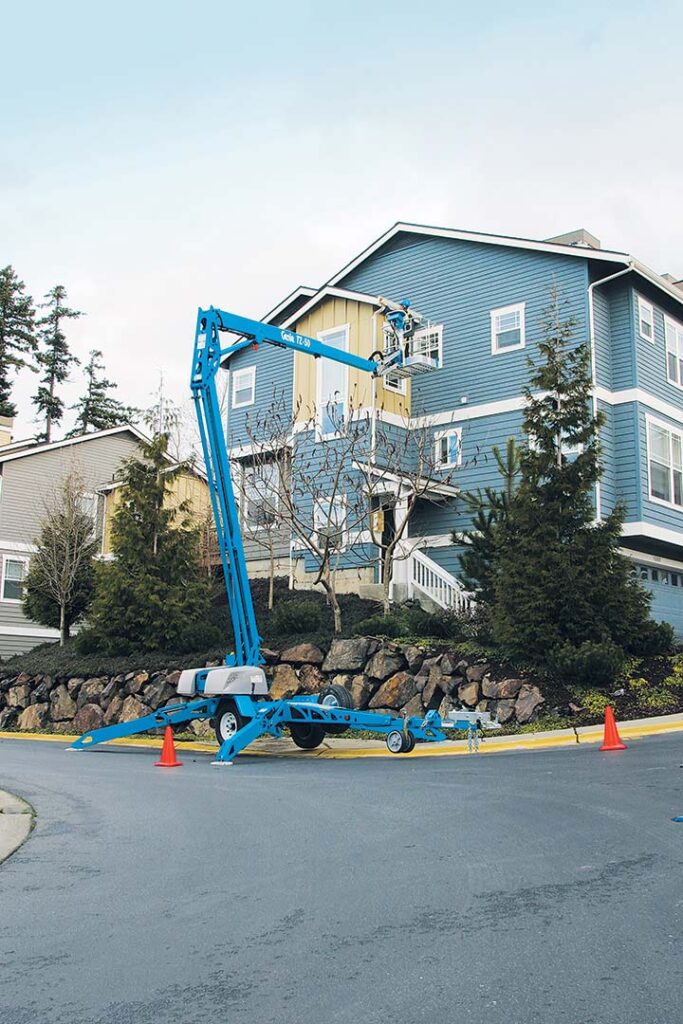

For the ultimate in reach and range, the Genie® TZ™-50 trailer mounted boom offers outstanding up, out and over capabilities in a compact, lightweight package that is easy to maneuver in congested work areas.
Overview
- Ground and platform controls use symbols to simplify operation
- Optional Drive and Set™ feature lets operators drive the unit from the platform when fully lowered
- 359˚non-continuous turntable rotation for versatile positioning
- Illuminated outrigger indicators
- Tilt alarm/sensor for added safety
- Drive and set option includes high capacity battery
- Non-marking outrigger foot pads
- Spare tire
- Wheel chocks
- 2 inch ball coupler (lever lock or Bulldog™)
- 2 5/16 inch ball coupler (lever lock or Bulldog™)
- 2 1/2 inch (6.53 cm) I.D. pintle ring coupler
- Clevis coupler
- Battery charge indicator (BCI)
- Flashing beacon
- High capacity battery
- Horn
- 160 degree hydraulic platform rotation
- Fluorescent tube caddy
- Tool tray
