PRINCETON PB50.4+
All Truck Mounted Forklifts
Equipment Specifications
| Technical Data - ANSI STANDARD | B56.14 |
|---|---|
| Technical Data - CAPACITY @ 24" LOAD CENTER | 5000 lbs |
| Technical Data - CENTER OF GRAVITY (FROM FORK FACE) | 15" |
| Technical Data - DIESEL ENGINE | 48 HP |
| Technical Data - DRIVE WHEELS | 3 |
| Technical Data - ELECTRICAL SYSTEM | 12 Volt |
| Technical Data - ENGINE EMISSION COMPLIANCE | EPA Tier4 Final |
|---|---|
| Technical Data - FACE OF FORK TO CENTER OF FRONT TIRE | 20.5" |
| Technical Data - FORK CARRIAGE WIDTH (CLASS) | 47.25" (II) |
| Technical Data - FORK SECTION | 48 x 6 x 2 |
| Technical Data - FRAME OPENING | 56.5" |
| Technical Data - GROUND CLEARANCE | 10.5" |
| Technical Data - HEIGHT TO TOP OF CANOPY | 98" |
| Technical Data - LIFT HEIGHT | 120" / 144" |
| Technical Data - MAST CARRIAGE TRAVEL | 31" |
| Technical Data - MAST HEIGHT - COLLAPSED | 98" / 110" |
| Technical Data - MAST HEIGHT - RAISED | 157.5" / 182.5" |
| Technical Data - Maximum Gradability (4-Way Mode) | 30% (15%) |
| Technical Data - MAXIMUM RPM | 2750 RPM |
| Technical Data - MAXIMUM SPEED | 7 mph |
| Technical Data - OVERALL WIDTH (4-WAY MODE) | 99.5" (108.5") |
| Technical Data - OVERHANG | 56" |
| Technical Data - SIDESHIFT | 5" |
| Technical Data - STEERING | Hydrostatic |
| Technical Data - TILT OF MAST (FORWARD/BACKWARD) | 7° / 6° |
| Technical Data - TIRE OUTSIDE DIAMETER (FRONT/REAR) | 31.5" / 31" |
| Technical Data - TIRE TYPE | 31.5 x 13 - 16.5 (SS) | 31 x 15.5 - 15 (TG) |
| Technical Data - TIRE WIDTH (FRONT/REAR) | 13" / 15.5" |
| Technical Data - TURNING RADIUS | 77" |
| Technical Data - TYPE | 4-Way |
| Technical Data - UNLADEN WEIGHT (OPTIONAL) | 6010 lbs |
| Technical Data - UNLADEN WEIGHT | 5880 lbs |
| Technical Data - WHEELBASE | 68" |
| Technical Data - WORKING PRESSURE (ATTACHMENTS) | 2500 psi |

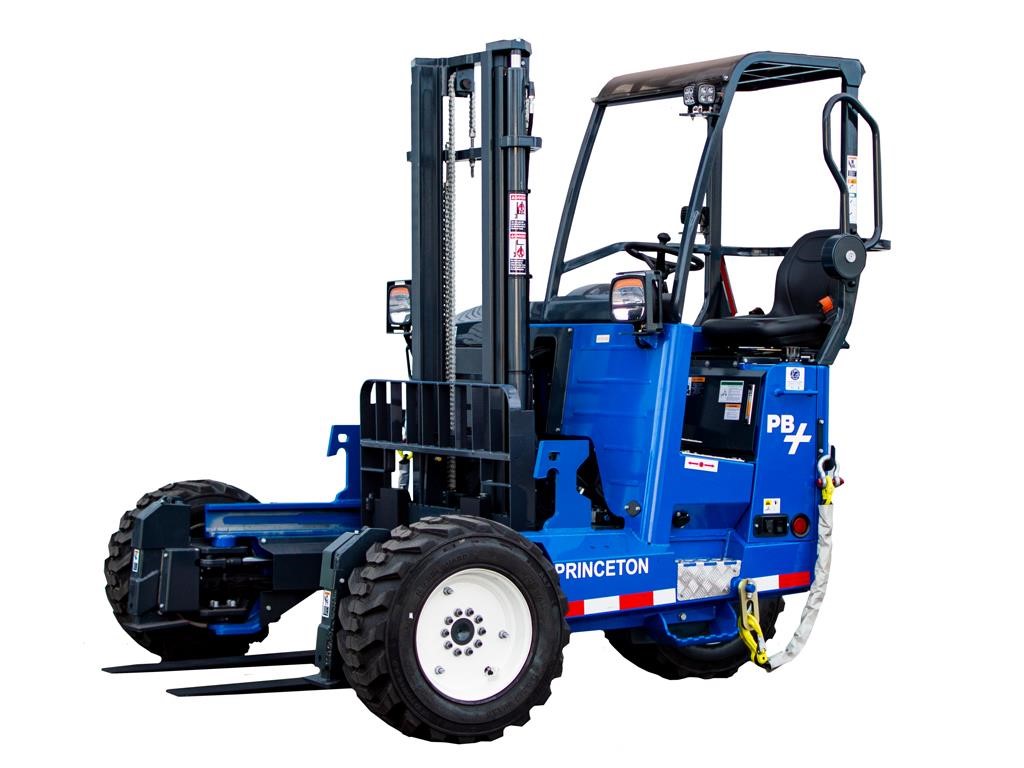

PB50.4+ — PRINCETON PIGGYBACK
Combining 4-Way functionality with our medium duty PB50 platform, the PiggyBack® PB50.4+ offers versatility in a more compact package.
APPLICATIONS
• Drywall
• General Building Materials
• Lumber
• Roofing
Princetons new PB50.4+ Forklift add 4-way functionality to our medium-duty machine & offer 5000lbs of lifting capacity in compact yet powerful package. With the flip-of-a-switch, PB50.4+ convert into side-directional mode permitting the unit to be driven sideways to maneuver through restricted areas. Customers delivering lighter building materials, roofing, insulation, tile & agricultural products will find this new forklift to be everything they need and more the PB50.4+ forklift has excellent stability. While weighing in at only about 5000lbs the machine feels sure footed and rugged. Engineers designed the machine to have excellent ground clearance AND a low center of gravity. Even more impressive, the machine was designed to have a shorter overall length. The PB50.4+ can be configured to a 56” overhang which allows for mounting to even 48 foot-long trailers.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
