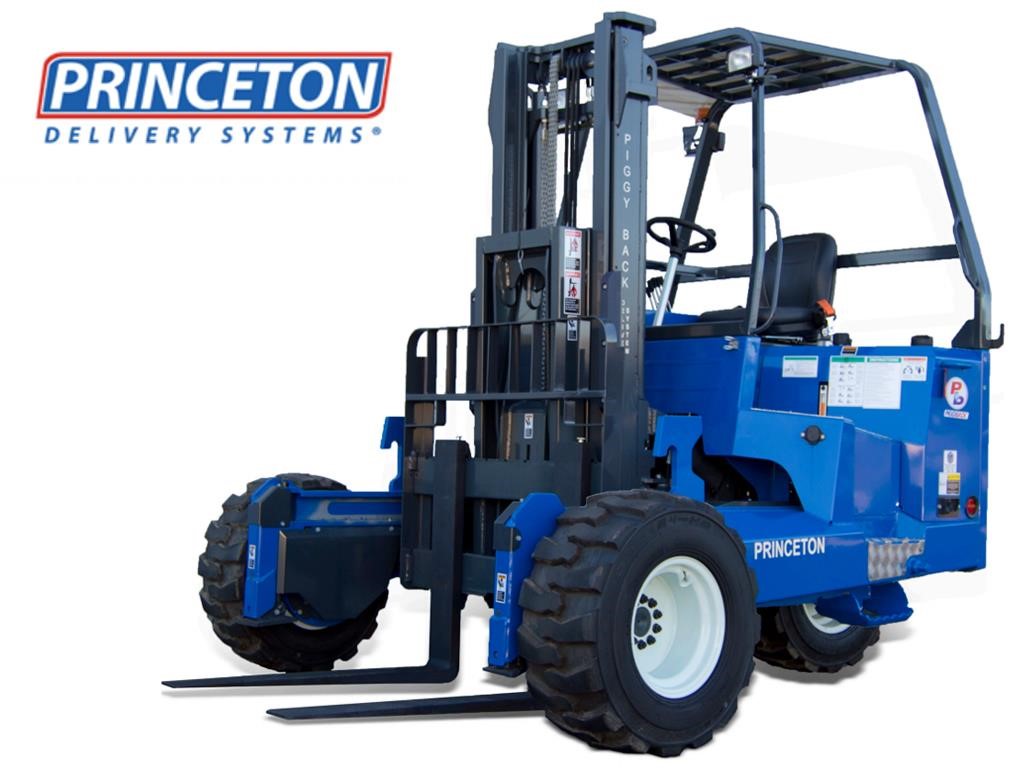

PRINCETON PB55.3X
All Truck Mounted Forklifts
Equipment Specifications
| Technical Data - ANSI STANDARD | B56.14 |
|---|---|
| Technical Data - CAPACITY @ 24" LOAD CENTER | 5500 lbs |
| Technical Data - CENTER OF GRAVITY (FROM FORK FACE) | 30" |

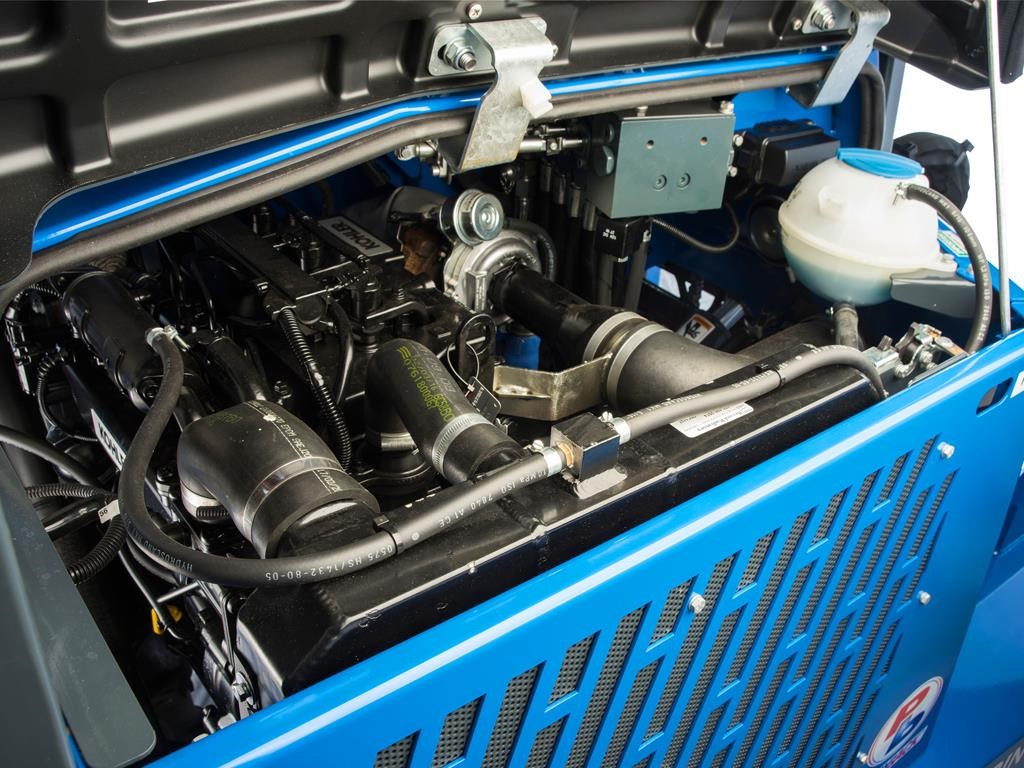

| Technical Data - DIESEL ENGINE | 56 HP |
| Technical Data - DRIVE WHEELS | 3 |
| Technical Data - ELECTRICAL SYSTEM | 12 Volt |
| Technical Data - ENGINE EMISSION COMPLIANCE | EPA Tier4 Final |
|---|---|
| Technical Data - FACE OF FORK TO CENTER OF FRONT TIRE | 9" |
| Technical Data - FORK CARRIAGE WIDTH (CLASS) | 48.25" (III) |
| Technical Data - FORK SECTION | 45 x 4 x 2" |
| Technical Data - FRAME OPENING | 57.75" |
| Technical Data - GROUND CLEARANCE | 11" |
| Technical Data - HEIGHT TO TOP OF CANOPY | 101" |
| Technical Data - LIFT HEIGHT | 120" / 144" |
| Technical Data - MAST CARRIAGE TRAVEL (REACH) | 27" (48") |
| Technical Data - MAST HEIGHT - COLLAPSED | 97.25" / 109.25" |
| Technical Data - MAST HEIGHT - RAISED | 185" / 211" |
| Technical Data - MAXIMUM GRADABILITY | 30% |
| Technical Data - MAXIMUM RPM | 2700 RPM |
| Technical Data - MAXIMUM SPEED | 7 mph |
| Technical Data - OVERALL WIDTH (4-WAY MODE) | 101" |
| Technical Data - OVERHANG | 86" |
| Technical Data - SIDESHIFT | 5" |
| Technical Data - STEERING | Hydrostatic |
| Technical Data - TILT OF MAST (FORWARD/BACKWARD) | 10° / 8° |
| Technical Data - TIRE OUTSIDE DIAMETER (FRONT/REAR) | 31" / 31" |
| Technical Data - TIRE TYPE | 31 x 15.5 - 15 8 12-Ply (TG) | 31 x 15.5 - 15 8-Ply (TG) |
| Technical Data - TIRE WIDTH (FRONT/REAR) | 15.5" / 15.5" |
| Technical Data - TURNING RADIUS | 91" |
| Technical Data - TYPE | Pantograph |
| Technical Data - UNLADEN WEIGHT (OPTIONAL) | 7240 lbs |
| Technical Data - UNLADEN WEIGHT | 7190 lbs |
| Technical Data - WHEELBASE | 83.5" |
| Technical Data - WORKING PRESSURE (ATTACHMENTS) | 2500 psi |
PB55.3X+ —PRINCETON PIGGYBACK
The new PB+ series machines have been redesigned with new features on the inside and out to increase performance, safety, options, and simplify maintenance. The advantages really add up with the PiggyBack PB55.3X+. The 5,500 lb. capacity PB55X+ is the first unit in the industry equipped with a standard "Double Reach" feature. This unique feature, which adds an extending scissors reach system to the standard moving mast, doubles the length of the reach of the PB55.3X+ across the bed. With the PB55.3X+, your driver now can unload an entire truck or trailer from one side, even from positions where tanks or tandems are located.
APPLICATIONS
• Brick
• Block & Pavers
• Drywall
• General Building Materials
• Lumber
• Roofing
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
