PRINCETON PB70.3+
All Truck Mounted Forklifts
Equipment Specifications
| Technical Data - ANSI STANDARD | B56.14 |
|---|---|
| Technical Data - CAPACITY @ 24" LOAD CENTER | 7000 lbs |
| Technical Data - CENTER OF GRAVITY (FROM FORK FACE) | 27" |
| Technical Data - DIESEL ENGINE | 56 HP |
| Technical Data - DRIVE WHEELS | 3 |
| Technical Data - ELECTRICAL SYSTEM | 12 Volt |
| Technical Data - ENGINE EMISSION COMPLIANCE | EPA Tier4 Final |
|---|---|
| Technical Data - FACE OF FORK TO CENTER OF FRONT TIRE | 15" |
| Technical Data - FORK CARRIAGE WIDTH (CLASS) | 48.25" (III) |
| Technical Data - FORK SECTION | 45 x 4 x 2" |
| Technical Data - FRAME OPENING | 57.75" |
| Technical Data - GROUND CLEARANCE | 11" |
| Technical Data - HEIGHT TO TOP OF CANOPY | 101" |
| Technical Data - LIFT HEIGHT | 144" |
| Technical Data - MAST CARRIAGE TRAVEL | 27" |
| Technical Data - MAST HEIGHT - COLLAPSED | 109.25" |
| Technical Data - MAST HEIGHT - RAISED | 181" |
| Technical Data - MAXIMUM GRADABILITY | 30% |
| Technical Data - MAXIMUM RPM | 2700 RPM |
| Technical Data - MAXIMUM SPEED | 7 mph |
| Technical Data - OVERALL WIDTH | 101" |
| Technical Data - OVERHANG | 80" |
| Technical Data - SIDESHIFT | 5" |
| Technical Data - STEERING | Hydrostatic |
| Technical Data - TILT OF MAST (FORWARD/BACKWARD) | 10° / 8° |
| Technical Data - TIRE OUTSIDE DIAMETER (FRONT/REAR) | 31" / 31" |
| Technical Data - TIRE TYPE | 31 x 15.5 - 15 12-Ply (RT) | 31 x 15.5 - 15 12-Ply (RT) |
| Technical Data - TIRE WIDTH (FRONT/REAR) | 15.5" / 15.5" |
| Technical Data - TURNING RADIUS | 91" |
| Technical Data - TYPE | Standard |
| Technical Data - UNLADEN WEIGHT (OPTIONAL) | 6700 lbs |
| Technical Data - UNLADEN WEIGHT | 6580 lbs |
| Technical Data - WHEELBASE | 83.5" |
| Technical Data - WORKING PRESSURE (ATTACHMENTS) | 2500 psi |

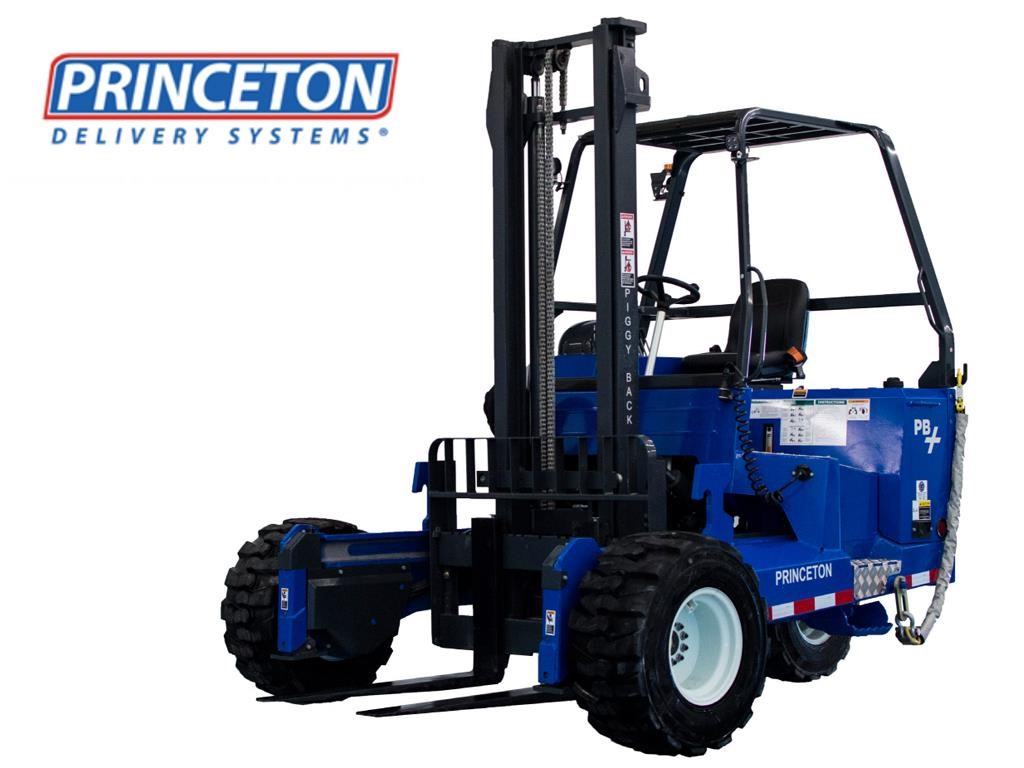

PB70.3+ — PRINCETON PIGGYBACK
he PB70.3+ Princeton PiggyBack® Delivery System is the most stable, reliable and powerful unit of its kind the industry. It is also the only unit that has 7,000 lb capacity, rated by rough terrain standards. Anti-stall hydraulics, 31" pneumatic sealed tires, center seating, a 56 HP diesel engine and excellent stability make this the most flexible truck mounted forklift for rough terrain deliveries. This unit can deliver a variety of materials faster and safer…almost anywhere on a job site.

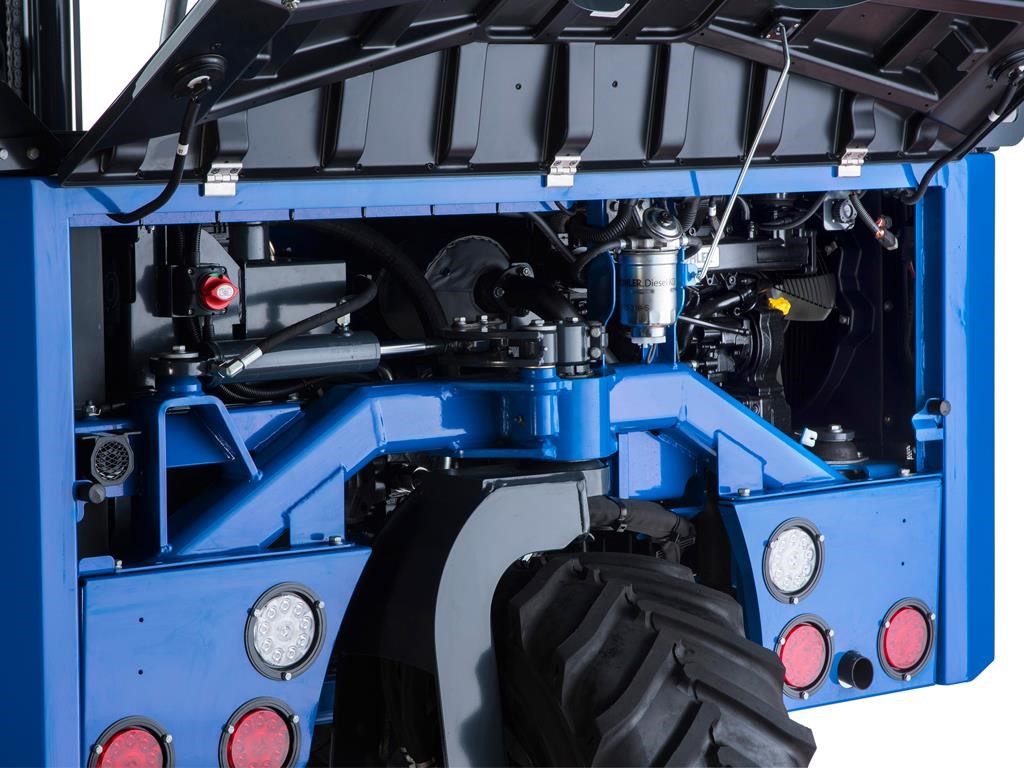

The new PB+ series machines have been redesigned with new features on the inside and out to increase performance, safety, options, and simplify maintenance.
APPLICATIONS
• Drywall
• General Building Materials
• Lumber
• Moving & Storage
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
