PRINCETON PB80.3+
All Truck Mounted Forklifts
Equipment Specifications
| Technical Data - ANSI STANDARD | B56.14 |
|---|---|
| Technical Data - CAPACITY @ 24" LOAD CENTER | 8000 lbs |
| Technical Data - CENTER OF GRAVITY (FROM FORK FACE) | 27" |
| Technical Data - DIESEL ENGINE | 56 HP |
| Technical Data - DRIVE WHEELS | 3 |
| Technical Data - ELECTRICAL SYSTEM | 12 Volt |
| Technical Data - ENGINE EMISSION COMPLIANCE | EPA Tier4 Final |
|---|---|
| Technical Data - FACE OF FORK TO CENTER OF FRONT TIRE | 9" |
| Technical Data - FORK CARRIAGE WIDTH (CLASS) | 48.25" (III) |
| Technical Data - FORK SECTION | 45 x 4 x 2" |
| Technical Data - FRAME OPENING | 57.75" |
| Technical Data - GROUND CLEARANCE | 11" |
| Technical Data - HEIGHT TO TOP OF CANOPY | 101" |
| Technical Data - LIFT HEIGHT | 144" |
| Technical Data - MAST CARRIAGE TRAVEL | 27" |
| Technical Data - MAST HEIGHT - COLLAPSED | 109.25" |
| Technical Data - MAST HEIGHT - RAISED | 181" |
| Technical Data - MAXIMUM GRADABILITY | 30% |
| Technical Data - MAXIMUM RPM | 2700 RPM |
| Technical Data - MAXIMUM SPEED | 7 mph |
| Technical Data - OVERALL WIDTH | 101" |
| Technical Data - OVERHANG | 80" |
| Technical Data - SIDESHIFT | 5" |
| Technical Data - STEERING | Hydrostatic |
| Technical Data - TILT OF MAST (FORWARD/BACKWARD) | 10° / 8° |
| Technical Data - TIRE OUTSIDE DIAMETER (FRONT/REAR) | 31" / 31" |
| Technical Data - TIRE TYPE | 31 x 15.5 - 15 12-Ply (RT) | 31 x 15.5 - 15 12-Ply (RT) |
| Technical Data - TIRE WIDTH (FRONT/REAR) | 15.5" / 15.5" |
| Technical Data - TURNING RADIUS | 91" |
| Technical Data - TYPE | Standard |
| Technical Data - UNLADEN WEIGHT (OPTIONAL) | |
| Technical Data - UNLADEN WEIGHT | 6970 lbs |
| Technical Data - WHEELBASE | 83.5" |
| Technical Data - WORKING PRESSURE (ATTACHMENTS) | 2500 psi |

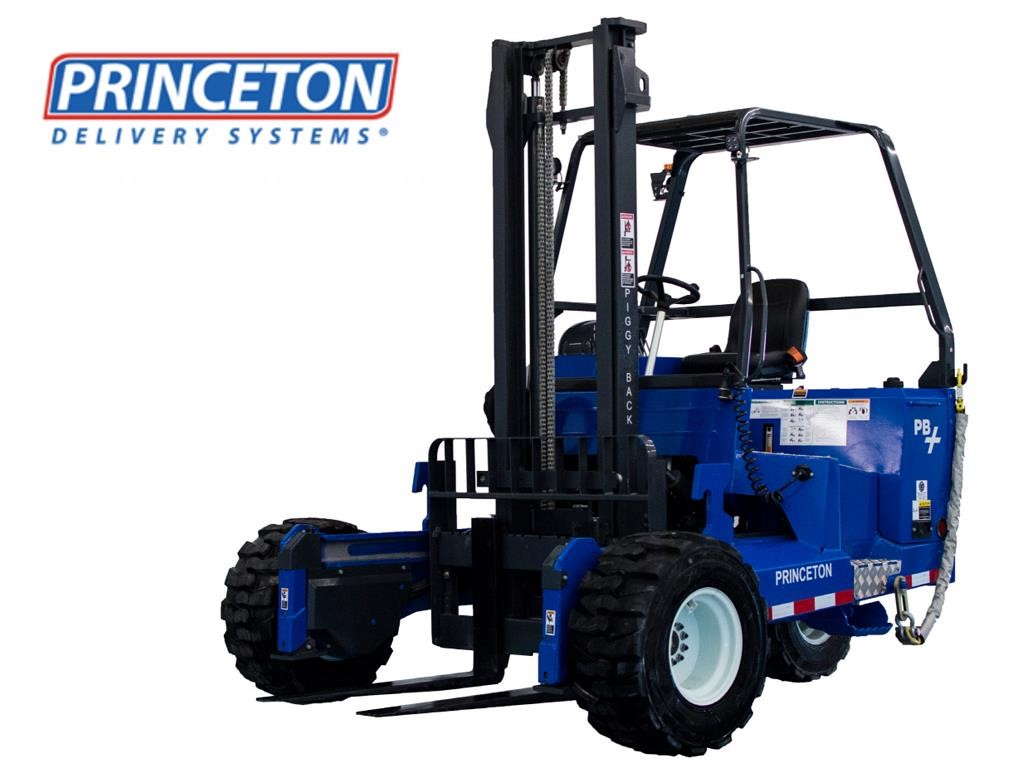

PB80.3+ — PRINCETON PIGGYBACK
The 8000 lb capacity PB80.3+ is designed for those who handle heavy products or just simply need to handle more product at one time as with the PB55.3+ a drywall handling package is optional. This package feature load support arms that provide added support a wide loads when traveling on rough terrain. Also, like the PB55.3+, the PB80.3+ offers center seating to assure that your operator has a clear view of not only the load but also both front tires. This enable the operator to both position the load more accurately anywhere on the job site & minimize the chance of running over unforeseen obstacles.
The new PB+ series machines have been redesigned with new features on the inside & out to increase performance, safety, options & simplify maintenance.
APPLICATIONS
• Drywall
• General Building Materials
• Lumber
• Moving & Storage
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
