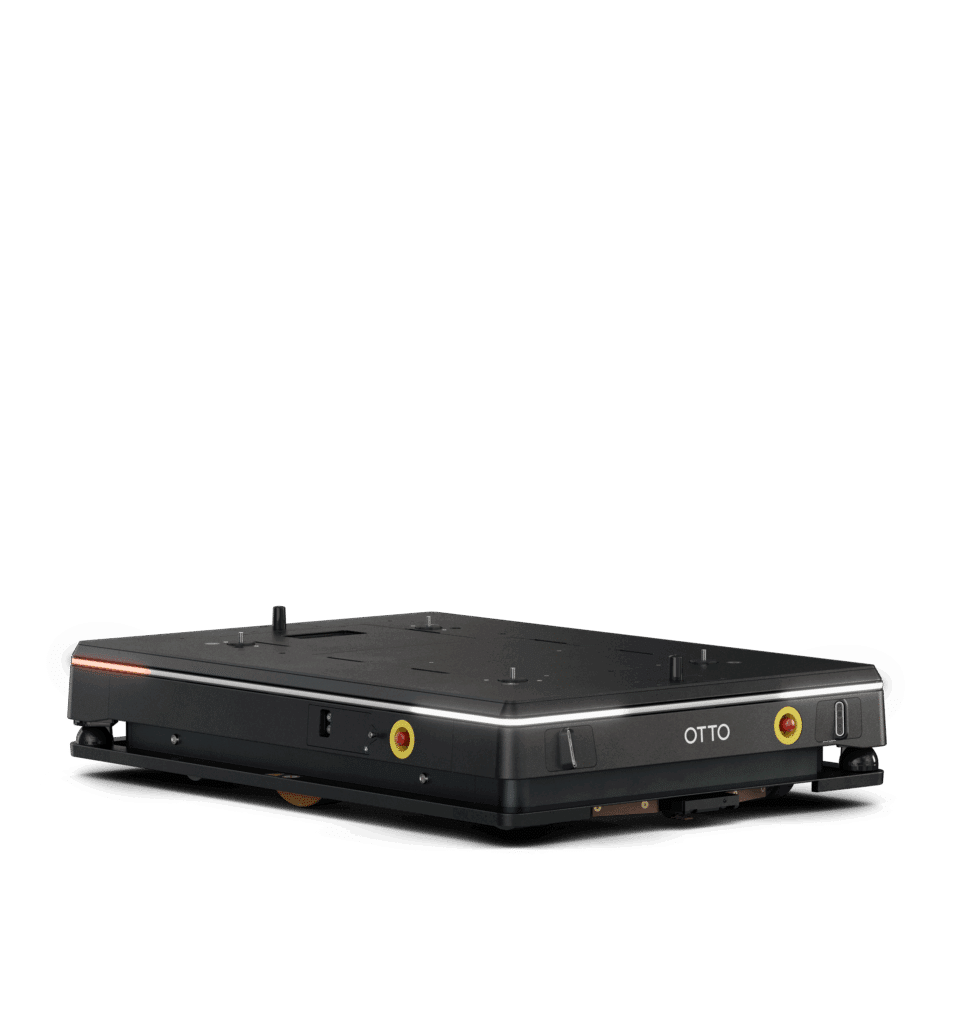

OTTO Motors OTTO 1500
Autonomous Mobile Robots
The new, improved OTTO 1500 is a workhorse AMR designed to move heavy payloads through demanding environments faster than any other AMR on the market, with zero compromise to safety.
| Adaptive Fieldsets | Intelligent PL-d rated switching fieldsets (patent-pending) |
|---|---|
| Battery Capacity | 80 Ah |
| Battery Charging Options | Autonomous Opportunity Charging (Default), Manual Charging |
| Battery Life | 3,000 full charge cycles |
| Battery Voltage | 52.8 V |
| Charge Time (10% to 90%) | 60 min |
| Communication | 802.11 a/b/g/n/ac/ax, 2.4 Ghz & 5 Ghz; 2x Long-range Omnidirectional Antennae |
| Computer | Solid-state Military Spec Computer with dedicated GPU |
| Dimensions | 1837 x 1283 x 351 mm (72.3 x 50.5 x 13.85 in) |
| E-Stop | 4 E-Stops (1 per side) + user E-Stop circuit interface |
| Ground Clearance | 16 mm (5/8 in) |
| Intelligent Braking | Redundant monitoring with safety-system interlock |
| IP Classification | IP20 |
| Manual Control | Pendant-based manual control. Guided autonomous control available via OTTO software interface. |
| Mass | 627kg (1382 lbs) |
| Max. Charge Rate | 80 A |
| Max. Docking Speed | 0.3 m/sec (0.7 mph) |
| Max. Humidity | 95%, non-condensing |
| Max. Payload | 1900 kg (4190 Ibs) |
| Max. Speed | 2.0 m/s (4.5 mph) |
| Max. Turning Speed | 1.5 rad/sec (90°/sec) |
| Min. Aisle Width (One Way) | 1915 mm (78 in) |
| Min. Aisle Width (Two Way) | 3570 mm (146 in) |
| Power Interface | 24 VDC, 10A, regulated, unswitched; 52.8 VDC nominal, 50A, unregulated |
| Runtime (10% to 90%) | 10 hr |
| Safety Interface | Dual-channel E-Stop breakout, 2 safety-rated GPIO, 1 interface fault line |
| Sensors | 4x Intel RealSense Cameras, 2x SICK Microscan3 (360° FOV), Embedded 6-axis IMU |
| Signal Interface | 1x Ethernet, 1x USB 3.1, 1x HDMI; 1 CAN Bus, 5 GPIO (2 safety rated); 1 interface control line |
| Standards Compliance | ISO EN 12100, ISO EN 13849-1, ISO 3691-1 (supercedes EN 1525), EN 60204-1, CE, FCC |
| Suspension | Passive, Rocker |
| Temperature | 0 to 40°C |
| Traversable Gap | 16 mm (5/8 in) |
| Turning Radius | Turn in place |
- Every detail of the new OTTO 1500 has been crafted to maximize your operation’s productivity. Our formula is simple Move the most goods, as fast as possible, with the least downtime.
- OTTO 1500 delivers 1900kg of materials at top speeds of 2m/s with an agility unlike any other AMR in the market. OTTO 1500 has been designed to maximize fleet productivity and deliver the best ROI in the industry.
- OTTO’s software is unrivaled in the industry. Unlike traditional industrial automation, each OTTO 1500 gets smarter and more productive with every update. OTTO releases new software updates every year to ensure that your OTTO AMR fleet gets more valuable with every budget cycle.
- The new OTTO 1500 builds upon the proven and trusted OTTO 1500 chassis first introduced in 2015. OTTO 1500 has experienced over 4,000,000 hours of operational runtime with nearly a decade of vehicle engineering and continuous improvement.
