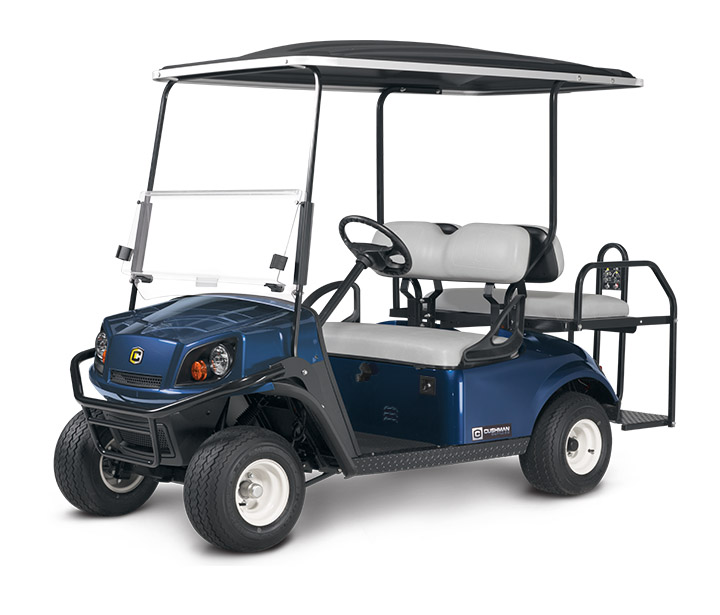

Cushman Shuttle 2+2
Carts & Utility Vehicles
Overview
Versatility rules the day with the Shuttle™ 2+2 personnel carrier. With a rear seat that converts to a flat cargo area, you can haul guests, gear and everything in between. Standard headlights and brush guard keep you prepared for whatever the day holds.
Cushman equipment only available at our Concord, CA location.
| Air Cleaner | Replaceable Dry Cartridge |
|---|---|
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Battery Charger | - |
| Bed Load Capacity | 250 lb (113 kg) |
| Body & Finish | Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) |
| Cargo Deck Capacity | 32.0 in (81 cm) |
| Cargo Deck Material | 40.0 in (102 cm) W x 32.0 in (81 cm) L |
| Cooling System | Air Cooled |
| Curb Weight | 896 lb (406 kg) |
| Drive Train | Continuously Variable Transmission (CVT) |
| Electrical System | Starter/Generator. Solid State Regulator |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Fuel Capacity | 6 Gallon (22.7 L) Tank |
| Gear Selection | Dash-Mounted Forward-Neutral-Reverse |
| Ground Clearance | 4.5 in (11 cm) |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Key or Pedal Start | Pedal |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Outside Clearance Circle | 19 ft ( 5.8 m) |
| Overall Height | 46.5 in (118 cm) (Top of steering wheel) 77.0 in (196cm) (Top of Sun Canopy) |
| Overall Length | 108.5 in (276 cm) |
| Overall Width | 48.5 in (123 cm) |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Power Source | 4-Cycle, 24.5 ci (401cc) |
| Rear Axle Ratio | 11.47:1 (Forward) 15.78:1 (Reverse) |
| Seating Capacity | 4-Person |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Speed | 14 mph +/- 0.5 mph (22.5 kph +/- 0.8 kph) |
| Standard Color | Patriot Blue |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Tires | 18 x 8.50 - 8 (4-Ply Rated) |
| Transaxle | Differential w/ Helical Gears |
| Valve Train | Single Cylinder OHV |
| Vehicle Load Capacity | 800 lb (363 kg) |
| Weight w/o Batteries | 861 lb (391 kg) |
| Wheel Base | 65.5 in (166 cm) |
| Wheel Track | 38.0 in (97 cm) Front 38.5 in (98 cm) Rear |
- 13.5-hp Kawasaki® Gas Engine
- 250-lb Deck Load Capacity
- 4-Passenger Seating
- 48V DC Electric Drivetrain
- 72V AC Electric Drivetrain
- 800-lb Vehicle Load Capacity
| Shuttle 2+2 Gas | Shuttle 2+2 48V DC Electric | Shuttle 2+2 72V AC Electric | |
|---|---|---|---|
| Cargo Deck Capacity | 32.0 in (81 cm) | 250 lb | 250 lb |
| Cargo Deck Material | 40.0 in (102 cm) W x 32.0 in (81 cm) L | High Density Polyethylene | High Density Polyethylene |
| Power Source | 4-Cycle, 24.5 ci (401cc) | 48V DC | 72V AC |
| Valve Train | Single Cylinder OHV | Shunt Wound | AC Induction |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 3.0 HP (2.2kW) Continuous | 22.4 HP |
| Electrical System | Starter/Generator. Solid State Regulator | 48V | 72V |
| Battery (Qty/Type) | One, 12V Maintenance Free | Six, 8V Deep Cycle | Six, 12V Deep Cycle |
| Battery Charger | – | 48 VDC Delta Q, 120/230V AC, UL/CSA | 72V DC Delta Q, 120/230V AC, UL/CSA |
| Air Cleaner | Replaceable Dry Cartridge | – | – |
| Lubrication | Pressurized Oil System | – | – |
| Oil Filter | Spin-On | – | – |
| Cooling System | Air Cooled | – | – |
| Fuel Capacity | 6 Gallon (22.7 L) Tank | – | – |
| Speed Controller | – | 250 Amp Solid State Controller | 350 Amp Solid State Controller |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive | Motor Shaft Direct Drive |
| Rear Axle Ratio | 11.47:1 (Forward) 15.78:1 (Reverse) | 12.44:1 | 17:1 |
| Weight w/o Batteries | 861 lb (391 kg) | 658 lb (298 kg) | 794 lb (360 kg) |
| Curb Weight | 896 lb (406 kg) | 1036 lb (470 kg) | 1268 lb (575 kg) |
