Equipment Specifications
| Top Speed | 25 mph (40 kmh) |
|---|---|
| Batteries | Maintenance-free Distance AGM or Li-Ion |
| Charger | AGM: Onboard 1 kW or Li-Ion: 4 Hour Fast Charger |
| Length x Width x Height | 167 in (424 cm) X 55.5 in (141 cm) X 76 in (193 cm) |
| Turning Radius | 220 in (559 cm) |
| Front Suspension | MacPherson Strut 5.6 in (14 cm) Travel |
- Specifications
- Description
- All-Weather Comfort
- Quiet & Efficient Air Conditioning
- AC Powered by Dometic
| Top Speed | 25 mph (40 kmh) |
|---|---|
| Batteries | Maintenance-free Distance AGM or Li-Ion |
| Charger | AGM: Onboard 1 kW or Li-Ion: 4 Hour Fast Charger |
| Length x Width x Height | 167 in (424 cm) X 55.5 in (141 cm) X 76 in (193 cm) |
| Turning Radius | 220 in (559 cm) |
| Front Suspension | MacPherson Strut 5.6 in (14 cm) Travel |
| Rear Suspension | Independent Trailing Arm 6 in (15 cm) Travel |
| Wheels | Std 13 in DOT street-rated 155/80 R13, Optional 16 in Premium Wheels |
| Step Height | 15 in (38 cm) |
| Gross Vehicle Weight | 3,000 lbs (1,361 kg) |
| Bed Capacity / Options | 330 lbs (150 kg) / Trunk Back, S Box, S Bed w/ Sides |
| Doors, Heat, Fan, Defrost | Std w/ Rear Passenger Center Open Double Doors |
| Electronic Power Steering | Optional |
| Seating | Optional 2nd Row Seating and 3rd Row Seating with Flip Seats |
| Exterior Colors | White, Black, Arctic Frost, Tidal Blue |

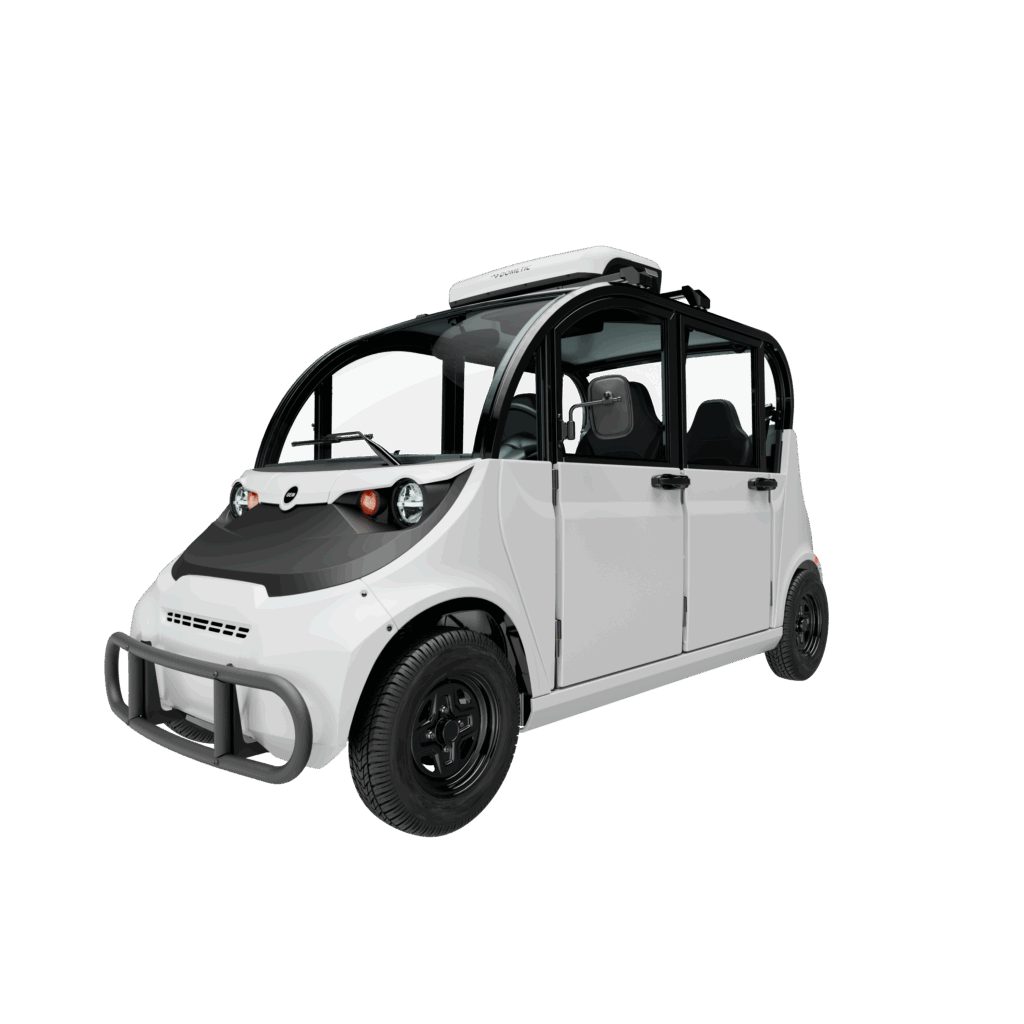

The Most Comfortable Low-Speed Vehicle Now with Heat, Defrost and Air Conditioning
GEM is already the most comfortable low-speed vehicle (LSV) on the market. Now GEM HVAC takes the leading LSV to a whole new level. The HVAC system transforms GEM into an even more comfortable and versatile vehicle for fleet managers. GEM often replaces trucks, vans and cars for organizations looking for a cost-effective, safe and sustainable way to transform their local fleets. GEM HVAC now enables you to do that without sacrificing the ability to keep the operators and passengers warm or cool on local trips.

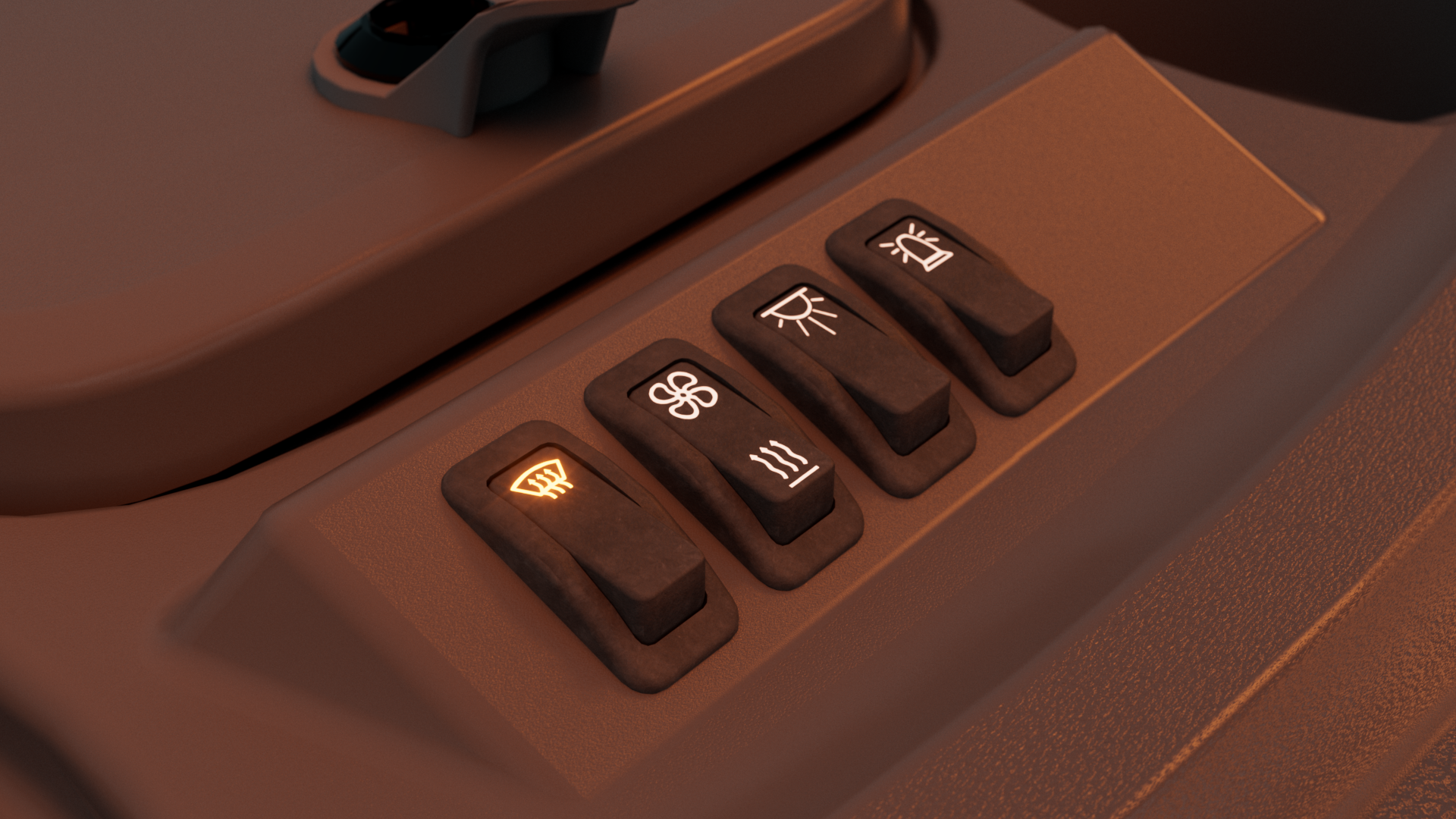

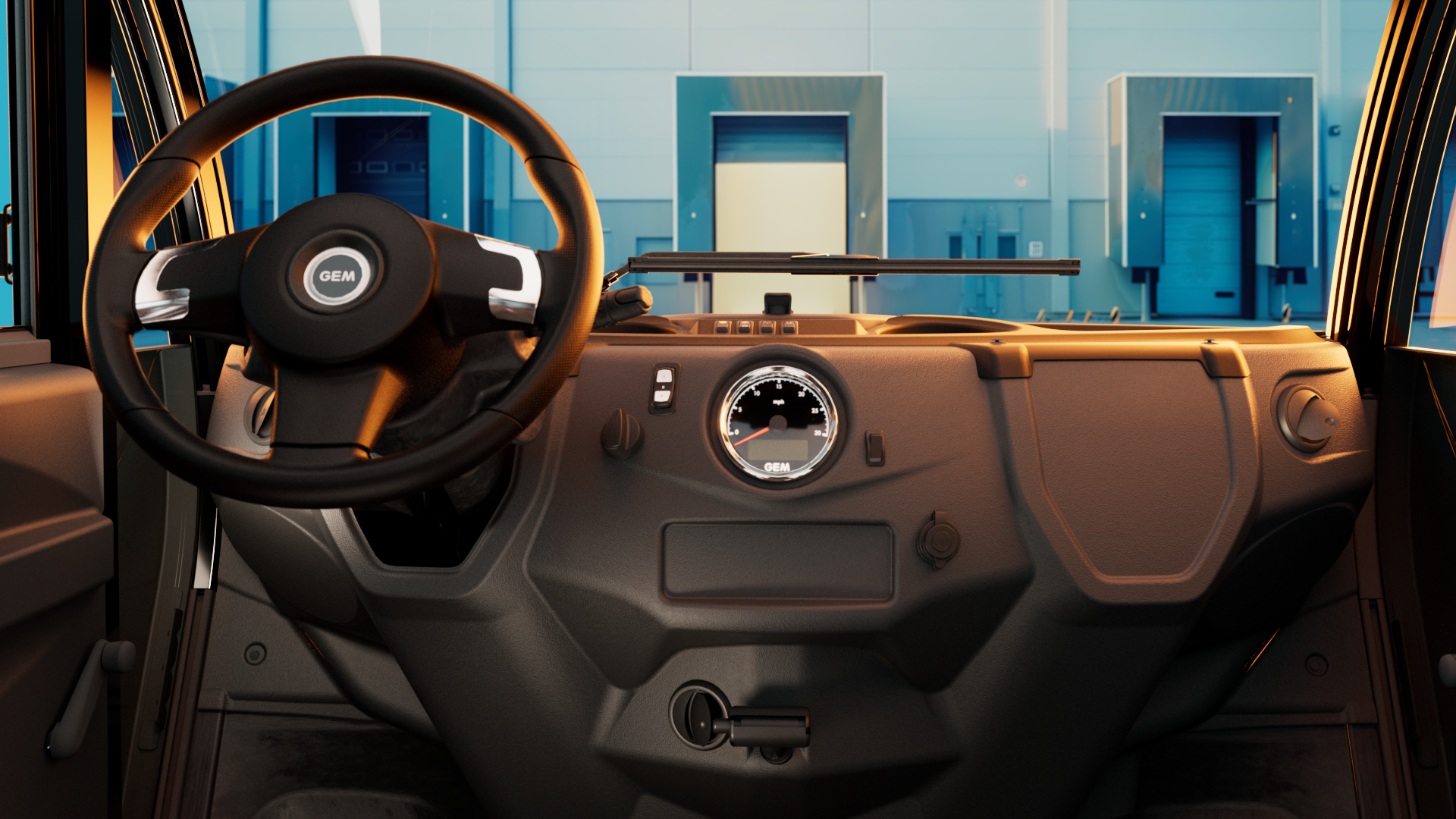

- In-cab heat with three dash integrated vents
- In-windshield defrost and wiper with washer
- Removable hard doors with roll up windows
- Fully integrated heat & AC systems that charge with the vehicle
- Highly efficient AC or heat draws an avg. of 20%* of battery in 4 hours on max settings
- Dometic AC is proven in millions of professional truck applications; comes with 2-year warranty

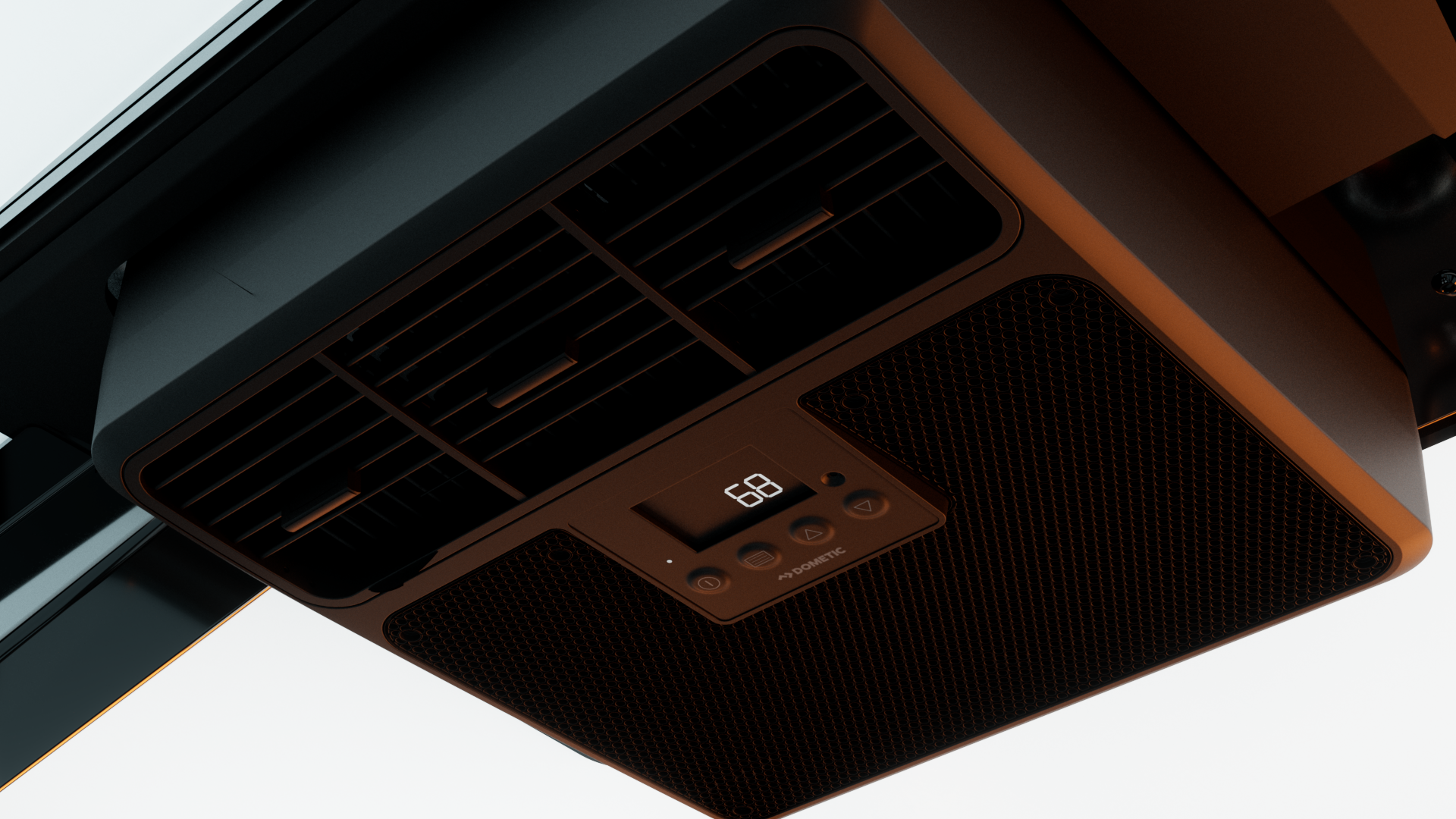

- Three AC vents to direct cool air flow; adjustable forward/back & left/right

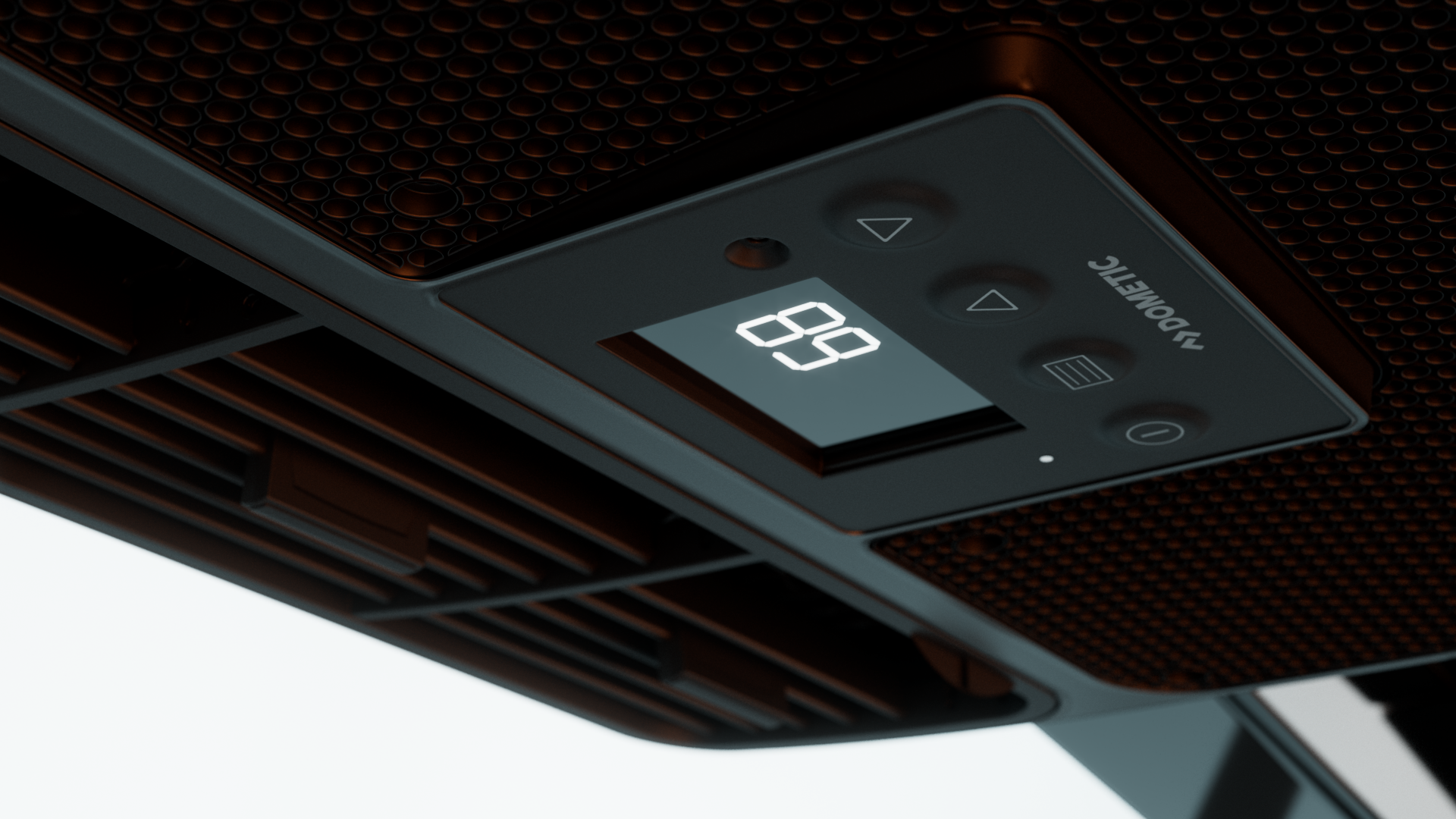

- Four cooling modes (Auto, Eco, Boost, Manual); Turbo Boost delivers fast cooling when needed
- Quiet operation with integrated inverter compressor; ≈ 30% quieter than 110V RV units
- 2,000 W (≈6,824 BTU) DC-powered AC cools cab to low of 62° F or 34° F below external temp.**
*Dependent on battery size: 16 kW Li-Ion = 16% in 4 Hours, 8 kW Li-Ion or Distance AGM = 24% in 4 Hours; **Dependent on external temperature, sun load, vehicle size, and humidity
GEM HVAC was developed in partnership with Dometic, a global leader in mobile climate solutions. The Dometic solution equips GEM with a powerful, fleet-proven A/C system. The same technology that has been trusted by millions of professional truck operators around the world for decades.
“Dometic is excited to partner with Waev in the fast-growing electric low-speed vehicle market with air conditioning now available in GEM HVAC models. The sleek design of our 12V RTX AC system, paired with GEM’s factory-engineered integration, helps keep occupants cool while enjoying their vehicle.”
– Tim Hall, regional president of Dometic Land Vehicles Americas.
