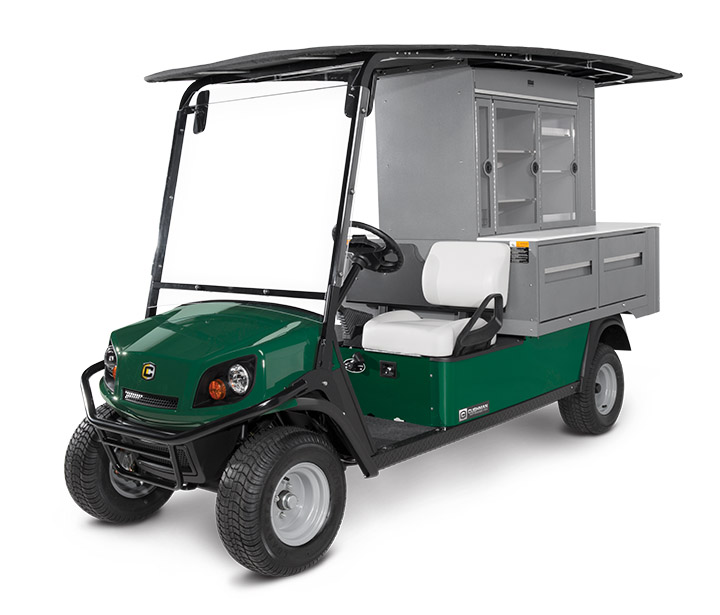

Cushman Refresher® FS4
Carts & Utility Vehicles
Overview
The Refresher® FS4™ with FlexServe™ Technology is the ultimate crowd pleaser for golfers and golf professionals alike. That’s because it provides an unprecedented combination of storage and flexibility, allowing you to elevate expectations on and off the course.
Cushman equipment only available at our Concord, CA location.
| Air Cleaner | Industrial Rated Dry Filter |
|---|---|
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Body & Finish | Injection Molded TPO, Painted (Front) Steel. Base Coat/Clear Coat (Rear) |
| Cargo Deck Capacity | 21.1 cu ft (.59 m3) Merchandising 11.1 cu ft (.31 m3) Cold Storage |
| Cargo Deck Material | 5000 Series Aluminum - Super Durable TGIC Polyester Powder Coating |
| Cooling System | Air Cooled |
| Curb Weight | 1508 lb (684 kg) |
| Drive Train | Continuously Variable Transmission (CVT) |
| Electrical System | Starter/Generator, Solid State Regulator |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Fuel Capacity | 6.0 Gallon (22.7 L) Tank |
| Gear Selection | Forward-Reverse |
| Ground Clearance | 4.5 in (11 cm) |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Key or Pedal Start | Pedal |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Outside Clearance Circle | 26’ 8” Left 25’ 2” Right |
| Overall Height | 49.0 in (124 cm) (No Canopy) 80.0 in (203 cm) (Canopy) |
| Overall Length | 147.0 in (373 cm) |
| Overall Width | 54.0 in (137 cm) |
| Parking Brake | Mechanical Hand Brake |
| Power Source | 4 cycle, 24.5 cu in (401 cc) |
| Rear Axle Ratio | 16.53:1 (Forward) 16.81:1 (Reverse) |
| Seating Capacity | 1-Person Std. 2-Person Optional |
| Service Brake | Four Wheel Hydraulic Front Disc/Rear Drum |
| Speed | 12 mph +/- 0.5 mph (19 kph +/-0.8 kph) |
| Standard Color | Forest Green |
| Steering | Self-compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Heavy Duty Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Tires | Load Star 205/65-10 |
| Transaxle | Differential with Helical Gears |
| Valve Train | Single Cylinder OHV |
| Vehicle Load Capacity | 1015 lb (460 kg) |
| Weight w/o Batteries | 1470 lb (661 kg) |
| Wheel Base | 93.5 in (237 cm) |
| Wheel Track | 39.63 in (101 cm) Front 39.5 in (100 cm) |
- 11.1-cu-ft Drawer Capacity
- 13-sq-ft Work Space
- 13.5-hp EFI Gas Engine
- 21.1-cu-ft of Merchandising
- 4 Cold Storage Drawers
| Refresher FS4 EFI Gas | |
|---|---|
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Body & Finish | Injection Molded TPO, Painted (Front) Steel. Base Coat/Clear Coat (Rear) |
| Standard Color | Forest Green |
| Overall Length | 147.0 in (373 cm) |
| Overall Width | 54.0 in (137 cm) |
| Overall Height | 49.0 in (124 cm) (No Canopy) 80.0 in (203 cm) (Canopy) |
| Wheel Base | 93.5 in (237 cm) |
| Wheel Track | 39.63 in (101 cm) Front 39.5 in (100 cm) |
| Ground Clearance | 4.5 in (11 cm) |
| Cargo Deck Capacity | 21.1 cu ft (.59 m3) Merchandising 11.1 cu ft (.31 m3) Cold Storage |
| Cargo Deck Material | 5000 Series Aluminum – Super Durable TGIC Polyester Powder Coating |
| Power Source | 4 cycle, 24.5 cu in (401 cc) |
| Valve Train | Single Cylinder OHV |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Electrical System | Starter/Generator, Solid State Regulator |
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Key or Pedal Start | Pedal |
| Air Cleaner | Industrial Rated Dry Filter |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Cooling System | Air Cooled |
| Fuel Capacity | 6.0 Gallon (22.7 L) Tank |
| Drive Train | Continuously Variable Transmission (CVT) |
| Transaxle | Differential with Helical Gears |
| Gear Selection | Forward-Reverse |
| Rear Axle Ratio | 16.53:1 (Forward) 16.81:1 (Reverse) |
| Seating Capacity | 1-Person Std. 2-Person Optional |
| Weight w/o Batteries | 1470 lb (661 kg) |
| Curb Weight | 1508 lb (684 kg) |
| Vehicle Load Capacity | 1015 lb (460 kg) |
| Outside Clearance Circle | 26’ 8” Left 25’ 2” Right |
| Speed | 12 mph +/- 0.5 mph (19 kph +/-0.8 kph) |
| Steering | Self-compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Heavy Duty Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Service Brake | Four Wheel Hydraulic Front Disc/Rear Drum |
| Parking Brake | Mechanical Hand Brake |
| Tires | Load Star 205/65-10 |
