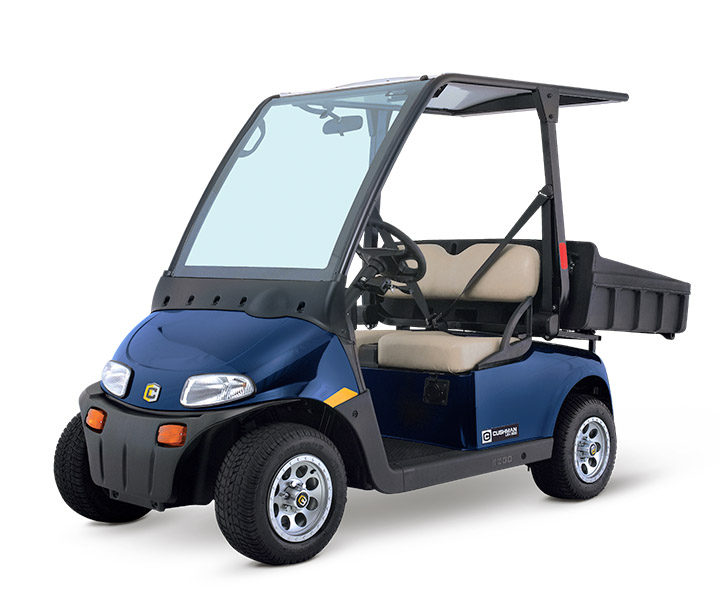

Cushman LSV 800
Carts & Utility Vehicles
Overview
The LSV 800 features a top speed of 25 mph, getting you wherever you need to go faster than traditional utility vehicles. With an automotive glass windshield, three-point seatbelts and standard headlights, taillights and brake lights, you and your crew are equipped to arrive safely.
Cushman equipment only available at our Concord, CA location.
| Battery (Qty/Type) | Six, 8V Deep Cycle, US Batteries |
|---|---|
| Battery Charger | On-board 48V PowerWise™ High Frequency |
| Body & Finish | Injection Molded TPO & Automotive Style Paint |
| Cargo Deck Capacity | 300 lb (136 kg) |
| Cargo Deck Material | Roto-molded Cross-linked Polyethylene |
| Curb Weight | 1381 lb (626 kg) |
| Drive Train | Motor Shaft Direct Drive |
| Electrical System | 48V |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Ground Clearance | 4.5 in (11 cm) |
| Horsepower (KW) | 4.4 hp (3.3 kW) |
| Key or Pedal Start | Pedal |
| Outside Clearance Circle | 19.7 ft (6.0 m) |
| Overall Height | 71.2 in (181 cm) (w/ OPS Roof) 75.2 in (191 cm) (w/ Strobe) |
| Overall Length | 109.0 in (277 cm) |
| Overall Width | 48.5 in (123 cm) |
| Parking Brake | Automatically Applied Electromagnetic |
| Power Source | 48V AC Induction Motor |
| Rear Axle Ratio | 14.76:1 (Forward) |
| Seating Capacity | 2-Person (Bucket Seats) |
| Service Brake | 4-Wheel Hydraulic Disc w/ Motor Regen |
| Speed Controller | 235 Amp AC Controller |
| Speed | 25 mph +/- 0.5 mph (40 kph +/-0.8 kph) |
| Standard Color | Patriot Blue |
| Steering | Double Ended Rack & Pinion |
| Suspension | Independent A-Arm w/ Coil Over Shocks (Front) Mono-Leaf Springs w/ Hydraulic Shocks (Rear) |
| Tires | DOT Street Legal 205-50-10 Radial |
| Towing Capacity | 1800 lb (816 kg) Max Load |
| Transaxle | Helical Gears |
| Vehicle Load Capacity | 800 lb (363 kg) |
| Weight w/o Batteries | 893 lb (405 kg) |
| Wheel Base | 65.9 in (167 cm) |
| Wheel Track | 36.7 in (93 cm) Front 39.7 in (101 cm) Rear |
- 2-Passenger Seating
- 48V AC Electric Drivetrain
- 5.9-cu-ft Cargo Bed
- 800-lb Vehicle Load Capacity
| LSV 800 | |
|---|---|
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Body & Finish | Injection Molded TPO & Automotive Style Paint |
| Standard Color | Patriot Blue |
| Overall Length | 109.0 in (277 cm) |
| Overall Width | 48.5 in (123 cm) |
| Overall Height | 71.2 in (181 cm) (w/ OPS Roof) 75.2 in (191 cm) (w/ Strobe) |
| Wheel Base | 65.9 in (167 cm) |
| Wheel Track | 36.7 in (93 cm) Front 39.7 in (101 cm) Rear |
| Ground Clearance | 4.5 in (11 cm) |
| Cargo Deck Capacity | 300 lb (136 kg) |
| Cargo Deck Material | Roto-molded Cross-linked Polyethylene |
| Power Source | 48V AC Induction Motor |
| Horsepower (KW) | 4.4 hp (3.3 kW) |
| Electrical System | 48V |
| Battery (Qty/Type) | Six, 8V Deep Cycle, US Batteries |
| Battery Charger | On-board 48V PowerWise™ High Frequency |
| Key or Pedal Start | Pedal |
| Speed Controller | 235 Amp AC Controller |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Helical Gears |
| Rear Axle Ratio | 14.76:1 (Forward) |
| Seating Capacity | 2-Person (Bucket Seats) |
| Weight w/o Batteries | 893 lb (405 kg) |
| Curb Weight | 1381 lb (626 kg) |
| Vehicle Load Capacity | 800 lb (363 kg) |
| Bed Load Capacity | 300 lb (136 kg) |
| Towing Capacity | 1800 lb (816 kg) Max Load |
| Outside Clearance Circle | 19.7 ft (6.0 m) |
| Speed | 25 mph +/- 0.5 mph (40 kph +/-0.8 kph) |
| Steering | Double Ended Rack & Pinion |
| Suspension | Independent A-Arm w/ Coil Over Shocks (Front) Mono-Leaf Springs w/ Hydraulic Shocks (Rear) |
| Service Brake | 4-Wheel Hydraulic Disc w/ Motor Regen |
| Parking Brake | Automatically Applied Electromagnetic |
| Tires | DOT Street Legal 205-50-10 Radial |
