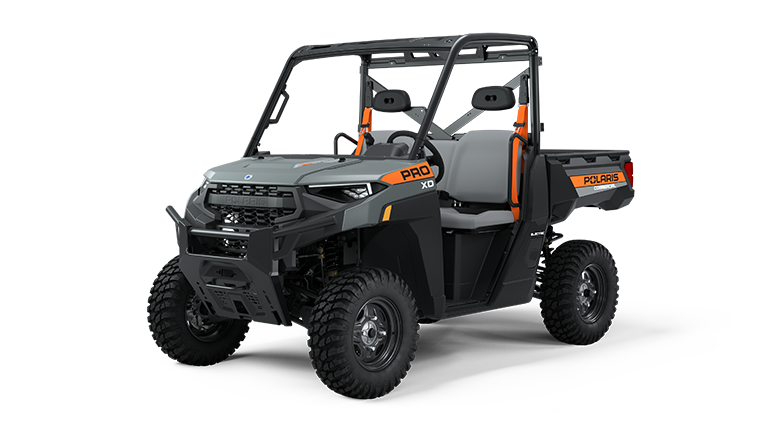

Polaris Pro XD Full-Size Kinetic
Carts & Utility Vehicles
The Pro XD Full-Size Kinetic allows you to give the work day 100% with 0 emissions.
| Battery Range | 45 miles |
|---|---|
| Cooling | Active Air & Liquid |
| Drive System Type | On-Demand 4x4 or High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Type | Internal Permanent Magnet AC Motor |
| Horsepower/Torque | 110 HP / 140 ft lbs |
| Maintenance Interval | 1,000 Miles (500 Miles initial break-in) |
| Cylinders Displacement | 1,000 cc |
| Top Speed | Adjustable up to 40 mph (64 km/h) |
| Top Towing Speed | 10 mph (normal terrain) 5 mph (rough terrain) |
| Transmission/Final Drive | Gates Synchronous Belt H/L/N/P (Electronic Forward/Reverse), Shaft |
| Bed Box Dimensions (L x W x H) | 36.75 x 54.25 x 12.5 in (93.3 x 137.8 x 31.75 cm) |
| Box Capacity | 1,250 lb (567 kg) |
| Estimated Dry Weight | 1,745 lb (792 kg) |
| Ground Clearance | 12 in (30.48 cm) |
| GVWR | 3,600 lb (1,632 kg) |
| Hitch Towing Rating | 2,500 lb (1,134 kg) |
| Overall Vehicle Size (L x W x H) | 120 x 62.5 x 78 in (305 x 159 x 198 cm) |
| Payload Capacity | 1,500 lbs (680.4 kg) |
| Person Capacity | 2 |
| Turning Radius | 13.3 ft (406.4 cm) |
| Wheelbase | 81 in (205.7 cm) |
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
| Parking Brake | Park in Transmission + Separate Mechanical Parking Brake Standard |
| Adjustable Driver Seat | Not Equipped |
| Cargo System | Lock & Ride |
| Charging Kit Included (EVSE) | J1772, Combined Level 1 / Level 2 Mobile |
| Engine Brake System (EBS) | Regenerative braking |
| Hitch Type | Standard 2 in (5 cm) Receiver |
| Instrumentation | Driver's Side Dual-sweep Analog Dials w/ 4" Multi-Color LCD Rider Information Center: Power Use and Regen %, Battery State of Charge %, Range Remaining, Charging Rate, Battery Temperature, Motor Temperature, Accessory Voltage, Speedometer, Odometer, Tripmeter, Gear Indicator, Service Indicator and Codes, Programmable Service Intervals, Seat Belt Reminder, User Selectable Backlighting & Brightness, Clock, Parking Brake Engaged Alarm |
| Lighting | Dual LED Headlamps, 1250lm low beam, 2300lm high beam, Dual LED Taillamps |
| Onboard Battery Charger | 3kW Charger |
| Other Standard Features | Horn, backup alarm, password protected, electronically adjustable speed limiting, Polaris Pulse Electrical System, *Connected vehicle capability with the Polaris app, via RIDE COMMAND+ |
| Tilt Steering | Standard |
| Electronic Power Steering | Standard |
| Front Tires | Wanda OBOR TERRAREX 27x10-14 |
| Hubs | Front: Ductile Iron; Rear: Ductile Iron |
| Rear Tires | Wanda OBOR TERRAREX 27x10-14 |
| Wheels | 14 x 6 Steel - Gloss Black |
| Front Suspension | Dual A-Arm, 10 in (25.4 cm) |
| Rear Suspension | Dual A-Arm, IRS 10" (25.4 cm) Travel |
- 14.9 kWh Lithium-Ion Battery with up to 45 Miles* Range
- 1,000-Mile Maintenance Interval
- Speed Limited
- Kevlar®-Backed Vinyl Seats
- Heavy-Duty Jobsite Tires
- 1,250 lbs Box Capacity & 2,500 lbs Towing
