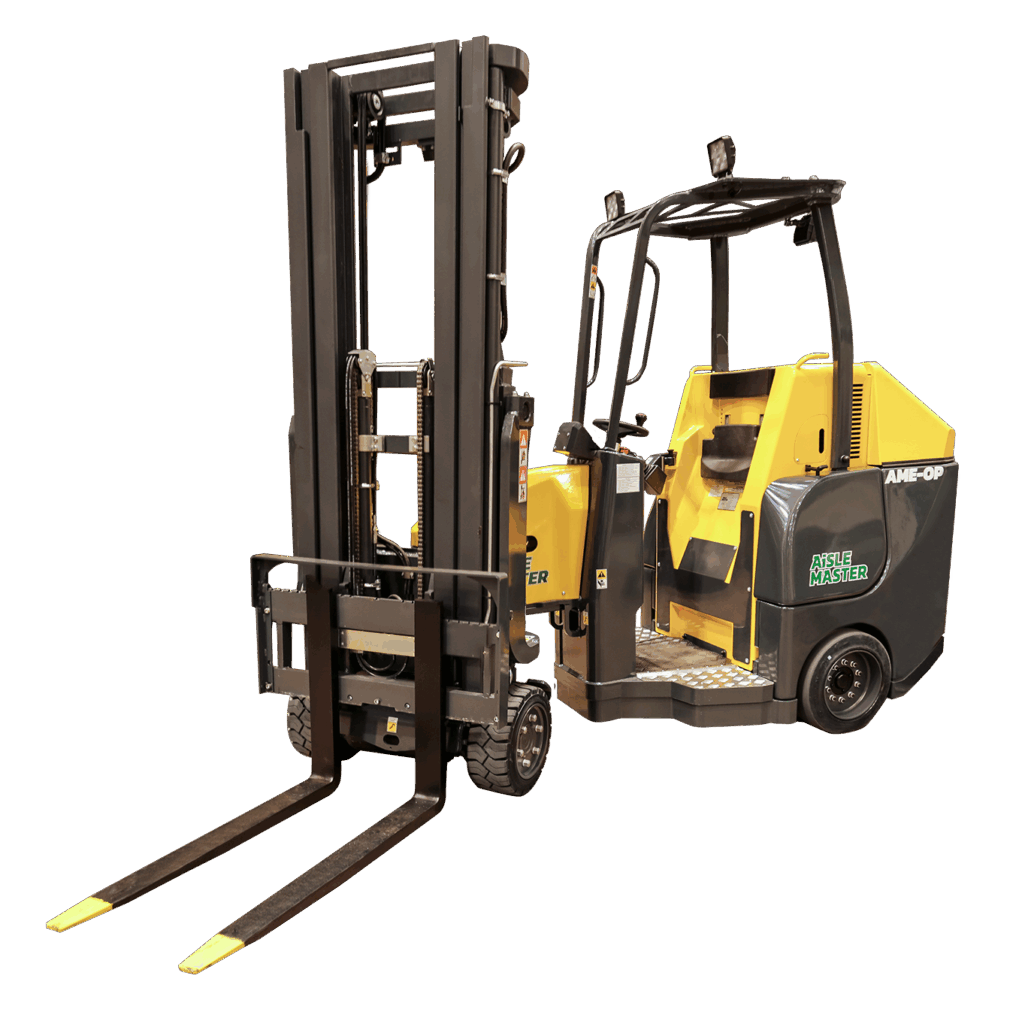

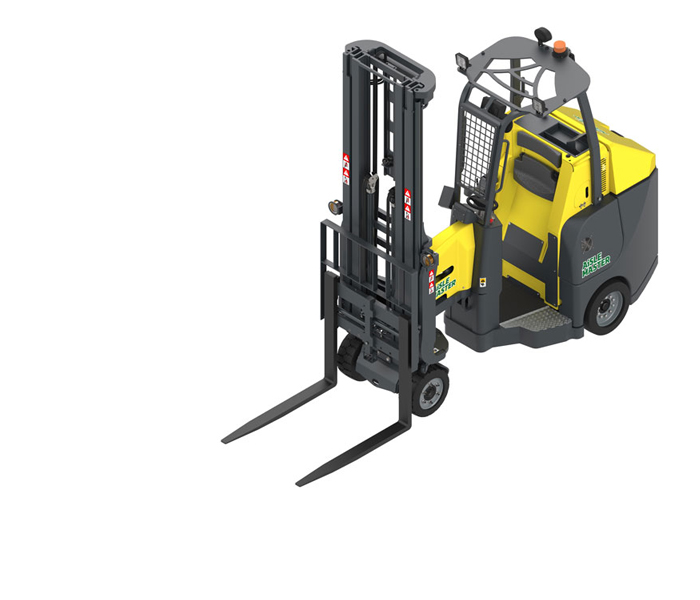

Combilift Aisle Master Order Picker
Aisle-Master
The NEW Aisle Master-OP (AME-OP) is a stand-on electric powered model that combines the advantages of a narrow aisle articulated forklift and an order picker for versatile operation in warehousing applications.
The main benefits of AC electric include enhanced performance levels, leading to increased pallet movements for greater productivity and improved acceleration and gradeability. There are also fewer wearable parts resulting in low maintenance and reduced downtime.
| Battery Voltage | 12%/15% |
|---|---|
| Capacity | 4,400 lbs |
| Chassis Width – Front | 38.6" |
| Chassis Width – Rear | 55.1" |
| Fork Carriage Width | 38.6" |
| Front Tire Size | 16.2x6.9" |
| Gradeability | 12%/15% |
| Ground Clearance | 3.4" |
| Ground Speed | 5.0 mph |
| Height Mast Closed | 53.7" |
| Height Mast Raised | 206.6" |
| Lift Speed Laden/Unladen | 0.9/1.1 ft/s |
| Load Centre | 23.6" |
| Mast Range | 14.1-47.6 ft |
| Mast Tilt (Back/Forward) | 3//1 Degrees |
| Overall Length | 109.4" |
| Overhead Guard Height | 90" |
| Rear Tire Size | 18x9" |
| Step Height | 11" |
| Truck Weight Less Battery | 13,595 lbs |
| Wheel Base | 68.2" |
- A choice of 620/775/930 amp-hour capacity batteries
- AC Traction motor (19.5 kw)
- Ergonomically designed operator’s cab
- Quick & easy battery removal
- Reduced energy consumption
