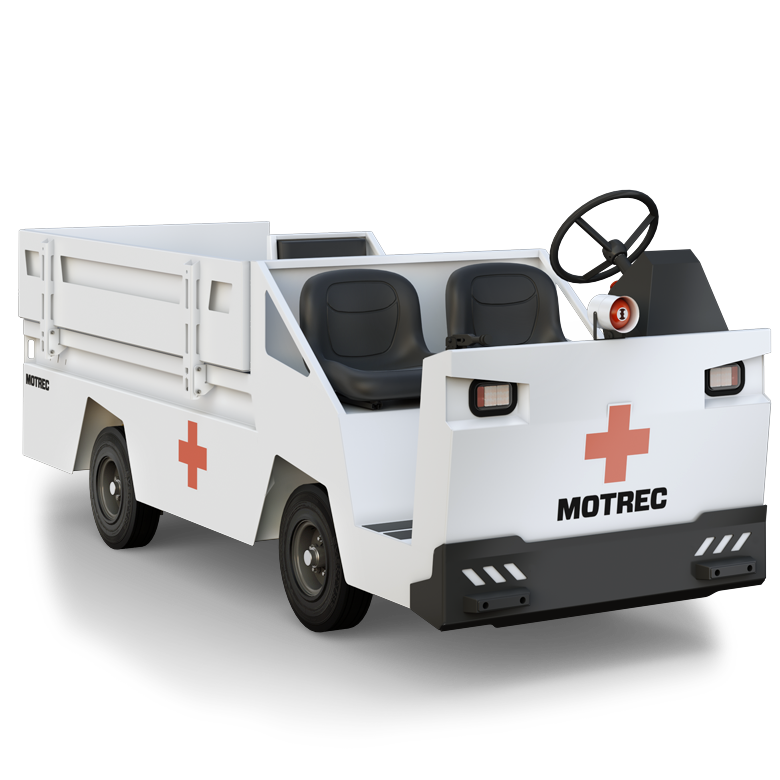

Motrec MX-480 Ambulance
Custom Vehicles
Equipment Features
- AC controller with sealed connectors paired with multifunction display: Allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
- Console on steering column: Complete console on steering column to put all controls and displays conveniently right where your fingers and eyes are. Now with a tilted steering column for a more ergonomic and natural driving posture to reduce operator fatigue and strain.
- High-efficiency asynchronous AC / Direct Drive motor: Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
| Accessories | Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator |
|---|---|
| Battery | Eight 6V-225AH batteries |
| Body | All-steel unibody construction. Powder Coating. |
| Brakes | Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking |
| Charger | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic. |
| Controller | AC Electronic speed controller |
| Deck Length | 82" |
| Deck Width | 44,5" |
| Drive Axle | Helical gear differential |
| Height | 54,5" |
| Indicators | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
| Length | 130" |
| Lights | LED dual headlights & tail/brake lights, dual back-up lights |
| Motor | Brushless AC motor, 15 HP Max (9 HP Continuous) |
| Safety | Deadman seat switch, reverse alarm, horn, automatic parking brake |
| Seats | Two bucket seats on slide adjusters |
| Steering | Automotive steering wheel, tilted steering column |
| Suspension | Dual leaf springs on front and rear |
| Transmission | Direct Drive |
| Voltage | 48V |
| Wheel Base | 65,5" |
| Wheels | 5.7x8 LRD pneumatic tires |
| Width | 44,5" |
Rescue people anywhere, quickly and safely. With its integrated nurse seat, hinged sides and first aid compartment, the MX-480 Ambulance makes a great turnkey solution. Its short turning radius and impressive maneuverability are ideal for confined settings. The long list of options include electric siren, red strobe light, second storage compartment, multi-level cot and IV pole. This zero-emission vehicle can also be equipped with top, windshield and roll-up sides for all-weather protection. Fully customizable and brandable.
| MX-700 / MX-480 AMBULANCE / MX-480 MAINTENANCE TRUCK / MX-480 CRANE TRUCK MX-480 REFUSE HAULER |
6.2 Kwh (120 Ah) | 1.2 Kwh | 4h | 120V or 240V | 83.8 lbs |
| 9.3 Kwh (180 Ah) | 1.2 Kwh | 4h | 125.7 lbs | ||
| 3.6 Kwh | 2.5h | 240V | |||
| 18.6 Kwh (360 Ah) | 3.6 Kwh | 4h | 251.4 lbs |
|
Passengers |
3 |
|---|---|
|
Load Capacity |
2,000 lbs. |
|
Towing Capacity |
6,000 lbs. |
|
Speed |
10 mph |
|
Turning Radius |
139" |
