Motrec MX-480 Crane Truck
Custom Vehicles
Equipment Features
- AC controller with sealed connectors paired with multifunction display allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
- High-efficiency asynchronous AC / Direct Drive motor offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
- Reinforced bolt-on front and rear bumpers protects vehicle components from damage and keeps maintenance costs low. Equipped with anchors for easier towing. Bumpers are easy to replace when needed. An easy, low-cost way to protect your investment.
- AC controller with sealed connectors paired with multifunction display allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
- High-efficiency asynchronous AC / Direct Drive motor offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
- Reinforced bolt-on front and rear bumpers protects vehicle components from damage and keeps maintenance costs low. Equipped with anchors for easier towing. Bumpers are easy to replace when needed. An easy, low-cost way to protect your investment.
- Safely maneuver heavy loads the extendable, rear-facing boom crane offers excellent balance, capacity and reach, and is available in multiple configurations. Four hydraulic outriggers ensure stable hoisting for up to 2,000 lbs.
- Time-saving roll-out battery compartment makes changing batteries extremely quick and easy. Just roll out the compartment to replace the battery with a fresh one and you’re good to go. Keeps vehicles running round-the-clock. Easy maintenance.

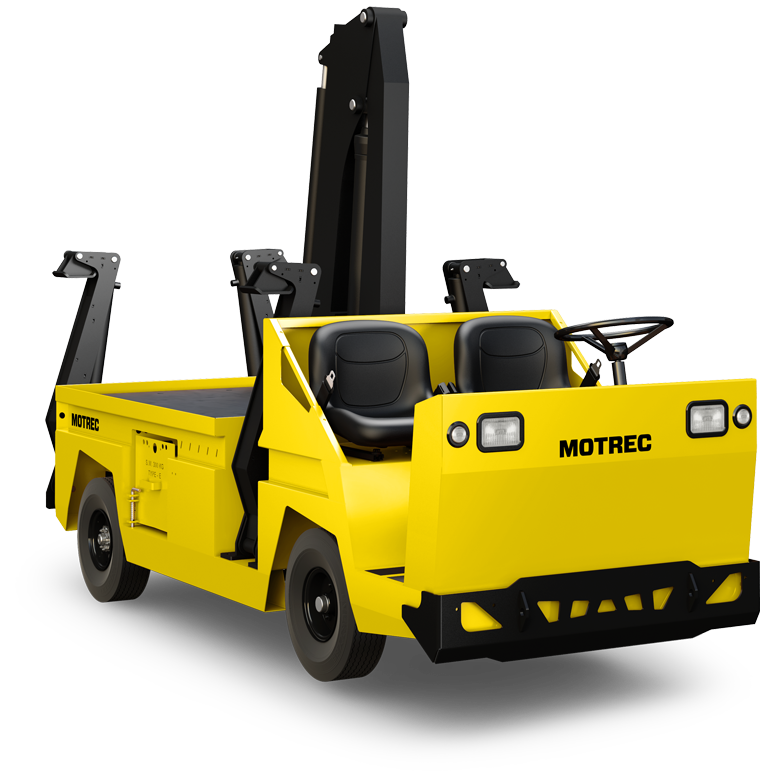

Confidently lift and haul heavy loads of up to 2,000 lbs. The multi-purpose MX-480 Boom Crane is more efficient than a chain block and can access tight spaces other lift systems cannot, thanks to its compact design, 150″ turning radius and extendable, rear-facing boom crane. Standard features include four hydraulic outriggers for worry-free stability, a high-efficiency AC powertrain and controller, direct drive differential and large drum brakes. A sturdy, easy-to-operate vehicle with excellent maneuverability, traction and braking—even when hauling heavy loads.
| MX-700 / MX-480 AMBULANCE / MX-480 MAINTENANCE TRUCK / MX-480 CRANE TRUCK MX-480 REFUSE HAULER |
6.2 Kwh (120 Ah) | 1.2 Kwh | 4h | 120V or 240V | 83.8 lbs |
| 9.3 Kwh (180 Ah) | 1.2 Kwh | 4h | 125.7 lbs | ||
| 3.6 Kwh | 2.5h | 240V | |||
| 18.6 Kwh (360 Ah) | 3.6 Kwh | 4h | 251.4 lbs |
| Crane Truck | |
|---|---|
| Passengers | 2 |
| Load Capacity | 2,000 lbs. |
| Towing Capacity | 6,000 lbs. |
| Speed | 10 mph |
| Turning Radius | 150 " |
| POWERTRAIN | |
| Motor | 15 HP brushless AC motor |
| Drive Axle | Helical gear differential |
| Transmission | Direct drive |
| Controller | AC Electronic speed controller |
| ENERGY | |
| Voltage | 48V |
| Battery | Eight 6V-225AH batteries |
| Charger | High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic. |
| CHASSIS | |
| Body | All-steel unibody construction. Powder Coating. |
| Suspension | Dual leaf springs on front and rear |
| Brakes | Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking |
| Wheels | 5.7×8 LRD pneumatic tires |
| Steering | Automotive steering wheel |
| Seats | Two bucket seats on slide adjusters |
| EQUIPMENT | |
| Lights | LED dual headlights & tail/brake lights |
| Indicators | Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
| Accessories | Bolt-on front bumper, DC/DC converter to equalize battery cells |
| Safety | Deadman seat switch, reverse alarm, horn |
| VEHICLE | |
| Weight | |
| Height | 88" |
| Length | 130.5" |
| Width | 47.5" |
| Wheel Base | 72" |
| DECK | |
| Deck Height | 31" |
| Deck Length | 59.5" |
| Deck Width | 45" |
| BATTERY | |
| Battery Weight | |
| Battery Height | |
| Battery Length | |
| Battery Width |
