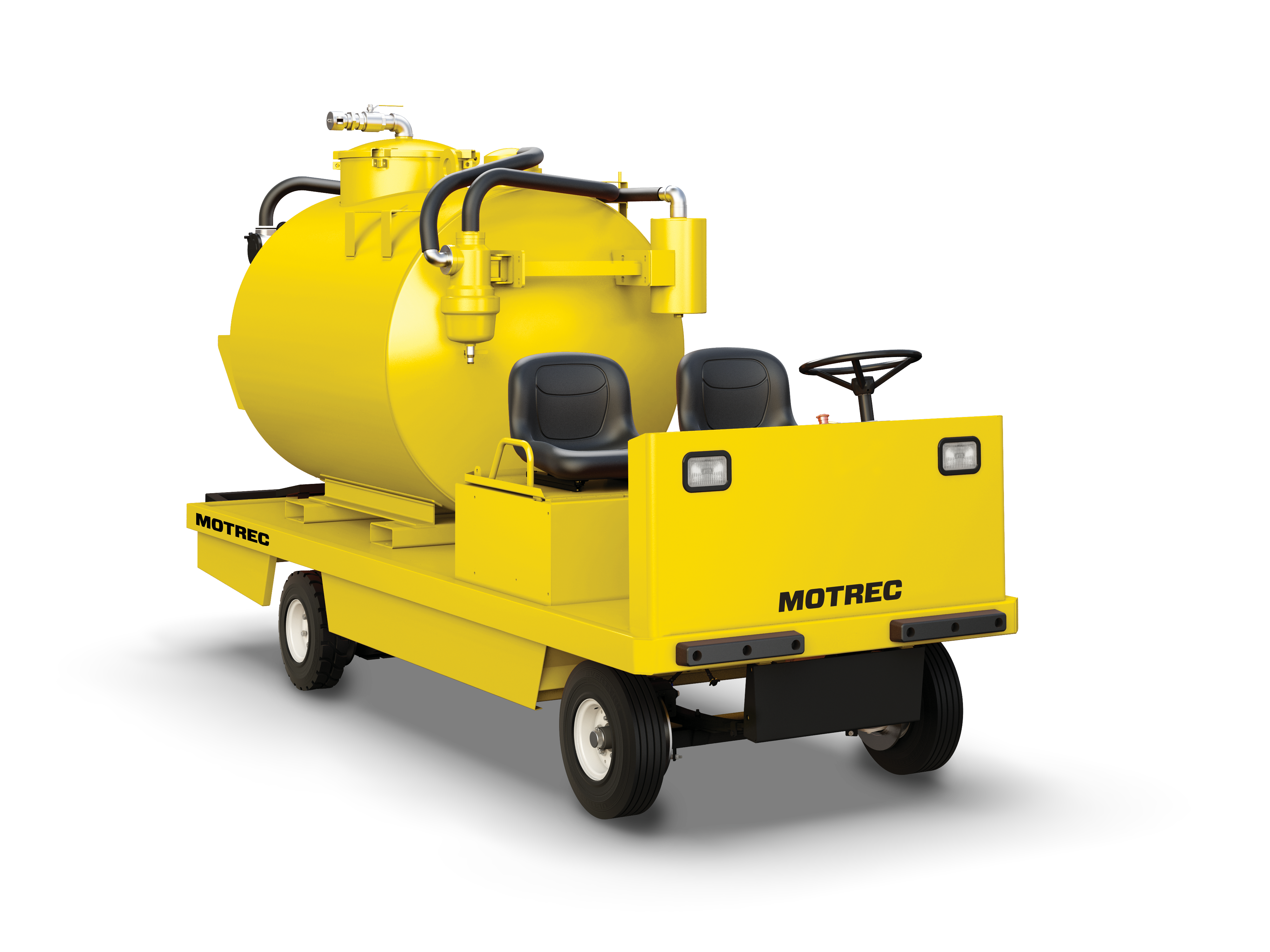

Motrec MX-660 Vacuum Truck
Custom Vehicles
As a vacuum truck, the MX-660 is hard to beat: It has a long deck with a 500-gallon vacuum tank, a 48V-10HP @ 2400 RPM electric vacuum pump motor with 20 in.Hg continuous / 27 in.Hg intermittent vacuum performance, top-and-rear clean-out doors and much more. With our option packages, it quickly becomes a potable water tank or high-pressure washing tank carrier. In fact, with its unlimited configurations, this zero-emission vehicle can adapt to virtually any application.
- Built-to-last all-steel unibody construction offers greater strength, balance and stability for improved performance and safety under any conditions. Exceptionally solid and rigid construction boasting an automotive-inspired heavy-duty chassis. Reinforced at all high-stress areas. Easily accommodates add-on components.
- Heavy-duty powder paint & protection cooked at a high temperature for outstanding rust protection. Base colors include Federal Yellow or Safety Orange; unlimited colors available upon request.
- Smooth-ride wheels in multiple models and options ensures a smooth, comfortable ride over rough floors, resulting in less operator fatigue. Wide range of flexible options: pneumatic or solid; non-marking; traction or rib.
| Vacuum Truck | |
|---|---|
| Passengers | 2 |
| Load Capacity | 3,000 lbs. |
| Towing Capacity | 6,000 lbs. |
| Speed | 7 mph |
| Turning Radius | 150 " |
| POWERTRAIN | |
| Motor | 15 hp |
| Drive Axle | Automotive differential |
| Transmission | Goodyear Synchronous Drive |
| Controller | Electronic solid state |
| ENERGY | |
| Voltage | 48V |
| Battery | Not included |
| Charger | Not included |
| CHASSIS | |
| Body | |
| Suspension | Front and rear leaf springs |
| Brakes | Hydraulic disc brakes on front & rear |
| Wheels | Solid rubber wheels |
| Steering | Automotive steering wheel |
| Seats | Two bucket seats on slide adjusters |
| EQUIPMENT | |
| Lights | LED dual headlights & tail/brake lights |
| Indicators | Digital battery indicator with hour meter |
| Accessories | Deadman seat switch, reverse alarm, digital battery indicator, hour meter, 48V/12VDC converter, horn |
| Safety | Deadman seat switch, reverse alarm, horn |
| VEHICLE | |
| Weight | |
| Height | 55" |
| Length | |
| Width | 54" |
| Wheel Base | 79" |
| DECK | |
| Deck Height | 22" |
| Deck Length | 76" |
| Deck Width | 54" |
| BATTERY | |
| Battery Weight | |
| Battery Height | 20" |
| Battery Length | 22,5" |
| Battery Width | 24,8" |
