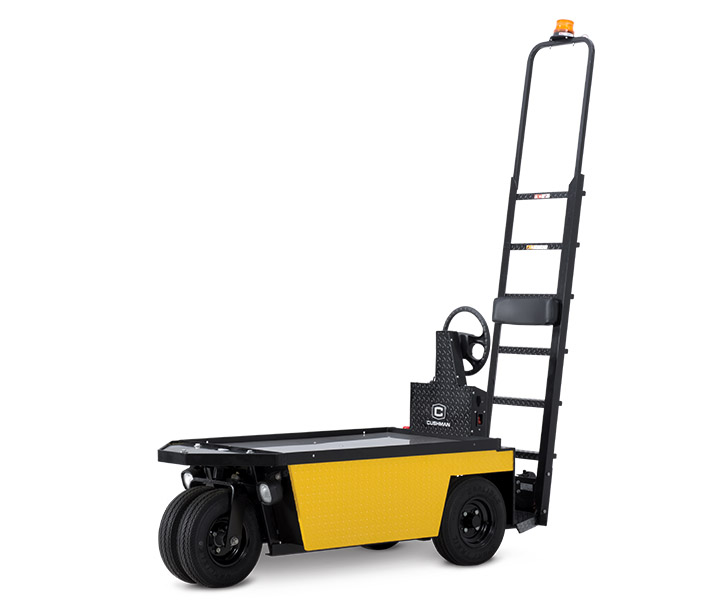

Cushman Stock Chaser

Electric Industrial Vehicles

Overview

With the Stock Chaser, every nook and cranny of your facility is accessible fast. Navigate tight corners and narrow aisles with the agile design. Then, climb the integrated ladder to retrieve items from up above. When other vehicles refuse to make the trek, the Stock Chaser burden carrier does not relent.

Cushman equipment only available at our Concord, CA location.

Battery (Qty/Type)Four, 6V Deep Cycle
Battery Charger24V, 100-240V AC On-Board, UL & CE
Bed Load Capacity750 lb (340 kg)
Body & FinishDiamond Plate Poly Primer and Acrylic
Cargo Deck Capacity9.6-sq-ft
Cargo Deck MaterialPlywood
Curb Weight810 lb (367 kg)
Drive TrainMotor Shaft Direct Drive
Electrical System24V
FrameWelded Steel w/ DuraShield™ Powder Coat
Gear SelectionDash-Mounted Forward-Neutral-Reverse
Ground Clearance4.0 in (10 cm)
Horsepower (KW)8.94 hp (6.67 kW) @ 1490 rpm
Key or Pedal StartPedal
Outside Clearance Circle12.4 ft (3.8 m)
Overall Height48.0 in (122 cm) (w/o Ladder) 78.0 in (198 cm) (w/ 4-step Ladder) 97.0 in (246 cm) (w/ 6-step Ladder)
Overall Length88.4 in (225 cm)
Overall Width29.5 in (75 cm)
Parking BrakeAutomatic
Power Source24V DC Series Wound
Rear Axle Ratio14.78:1
Seating Capacity1-Person (Standing)
Service BrakeRear Wheel Mechanical Drum
Speed ControllerSolid State 275 Amp Rated
Speed8.5 mph max (13.7 kph max)
Standard ColorSafety Yellow
SteeringDirect Chain & Linkage
SuspensionSolid (Front & Rear)
Tires4.80 x 8 (Load Range B)
Towing CapacityNormal Draw Bar: 60 lb (27.2 kg) Max Draw Bar Pull: 715 lb (324 kg)
TransaxleDifferential w/ Helical Gears
Vehicle Load Capacity1000 lb (454 kg)
Weight w/o Batteries522 lb (237 kg)
Wheel Base48.3 in (123 cm)
Wheel Track24.75 in (63 cm) Rear
  • 1000-lb Vehicle Load Capacity
  • 24V Electric Drivetrain
  • 9.6-sq-ft Cargo Deck
  Stock Chaser Electric
Frame Welded Steel w/ DuraShield™ Powder Coat
Body & Finish Diamond Plate Poly Primer and Acrylic
Standard Color Safety Yellow
Overall Length 88.4 in (225 cm)
Overall Width 29.5 in (75 cm)
Overall Height 48.0 in (122 cm) (w/o Ladder) 78.0 in (198 cm) (w/ 4-step Ladder) 97.0 in (246 cm) (w/ 6-step Ladder)
Wheel Base 48.3 in (123 cm)
Wheel Track 24.75 in (63 cm) Rear
Ground Clearance 4.0 in (10 cm)
Cargo Deck Capacity 9.6-sq-ft
Cargo Deck Material Plywood
Power Source 24V DC Series Wound
Horsepower (KW) 8.94 hp (6.67 kW) @ 1490 rpm
Electrical System 24V
Battery (Qty/Type) Four, 6V Deep Cycle
Battery Charger 24V, 100-240V AC On-Board, UL & CE
Key or Pedal Start Pedal
Speed Controller Solid State 275 Amp Rated
Drive Train Motor Shaft Direct Drive
Transaxle Differential w/ Helical Gears
Gear Selection Dash-Mounted Forward-Neutral-Reverse
Rear Axle Ratio 14.78:1
Seating Capacity 1-Person (Standing)
Weight w/o Batteries 522 lb (237 kg)
Curb Weight 810 lb (367 kg)
Vehicle Load Capacity 1000 lb (454 kg)
Bed Load Capacity 750 lb (340 kg)
Towing Capacity Normal Draw Bar: 60 lb (27.2 kg) Max Draw Bar Pull: 715 lb (324 kg)
Outside Clearance Circle 12.4 ft (3.8 m)
Speed 8.5 mph max (13.7 kph max)
Steering Direct Chain & Linkage
Suspension Solid (Front & Rear)
Service Brake Rear Wheel Mechanical Drum
Parking Brake Automatic
Tires 4.80 x 8 (Load Range B)
