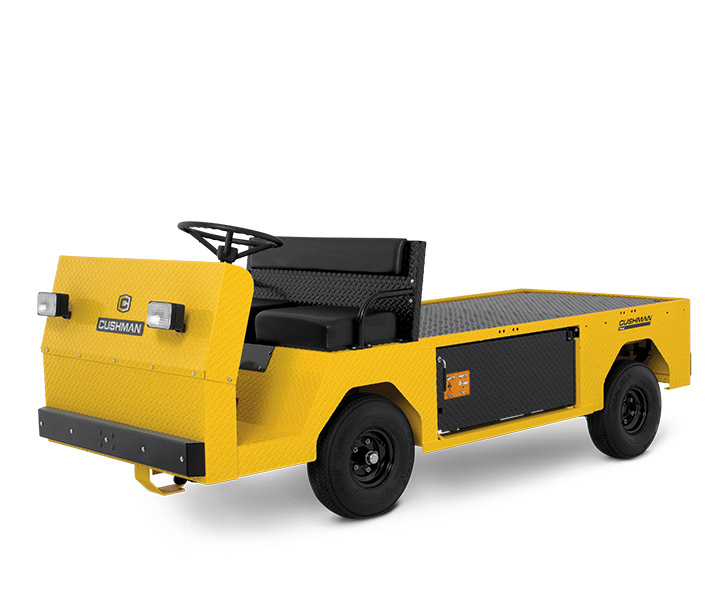

Cushman Titan HD
Electric Industrial Vehicles
Overview
The Titan HD burden carrier is what blue-collar work is all about. The muscle to haul up to 2,500 pounds and tow 4,600 pounds. The tenacity of diamond-plated steel. And a name that’s been earned with every shift.
Cushman equipment only available at our Concord, CA location.
| Battery (Qty/Type) | Six, 6V Deep Cycle, Swing Out |
|---|---|
| Battery Charger | 36V On-Board, Delta Q 120 VAC, UL & CSA |
| Body & Finish | Diamond Plate Patterned. Poly Primer & Acrylic |
| Cargo Deck Capacity | 2200 lb (998 kg) |
| Cargo Deck Material | Heavy Duty Plywood |
| Curb Weight | 1410 lb (640 kg) |
| Drive Train | Motor Shaft Direct Drive |
| Electrical System | 36V DC |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Gear Selection | Dash-Mounted Forward-Neutral-Reverse |
| Ground Clearance | 4.8 in (12 cm) |
| Horsepower (KW) | 8.0 hp (6 kW) @ 1600 rpm |
| Key or Pedal Start | Pedal |
| Outside Clearance Circle | 22.0 ft (6.7 m) |
| Overall Height | 47.0 in (119 cm) |
| Overall Length | 114.0 in (290 cm) |
| Overall Width | 44.5 in (113 cm) |
| Parking Brake | Hand-Operated Mechanical |
| Power Source | 36V DC Series Wound |
| Rear Axle Ratio | 14.76:1 |
| Seating Capacity | 2-Person |
| Service Brake | Rear Wheel Hydraulic Drum |
| Speed Controller | Solid State 400 Amp Rated |
| Speed | 13 mph +/- 0.5 mph (21 kph +/-0.8 kph) |
| Standard Color | Safety Yellow |
| Steering | Rack & Pinion |
| Suspension | Independent, Transverse Leaf Spring, Shocks (Front) Leaf Springs and Shock Absorbers (Rear) |
| Tires | 5.70 x 8 (Load Range C) |
| Towing Capacity | 4600 lb (2087 kg) |
| Transaxle | Differential w/ Helical Gears |
| Vehicle Load Capacity | 2500 lb (1134 kg) |
| Weight w/o Batteries | 1040 lb (472 kg) |
| Wheel Base | 67.0 in (170 cm) |
| Wheel Track | 38.0 in (97 cm) Front 37.0 in (94 cm) Rear |
- 2,500-lb Vehicle Load Capacity
- 2-Passenger Seating
- 36V Electric Drivetrain
- 4,600-lb Towing Capacity
- 8.0-hp @ 1600 rpm
| Titan HD 36V Electric | |
|---|---|
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Body & Finish | Diamond Plate Patterned. Poly Primer & Acrylic |
| Standard Color | Safety Yellow |
| Overall Length | 114.0 in (290 cm) |
| Overall Width | 44.5 in (113 cm) |
| Overall Height | 47.0 in (119 cm) |
| Wheel Base | 67.0 in (170 cm) |
| Wheel Track | 38.0 in (97 cm) Front 37.0 in (94 cm) Rear |
| Ground Clearance | 4.8 in (12 cm) |
| Cargo Deck Capacity | 2200 lb (998 kg) |
| Cargo Deck Material | Heavy Duty Plywood |
| Power Source | 36V DC Series Wound |
| Horsepower (KW) | 8.0 hp (6 kW) @ 1600 rpm |
| Electrical System | 36V DC |
| Battery (Qty/Type) | Six, 6V Deep Cycle, Swing Out |
| Battery Charger | 36V On-Board, Delta Q 120 VAC, UL & CSA |
| Key or Pedal Start | Pedal |
| Speed Controller | Solid State 400 Amp Rated |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Differential w/ Helical Gears |
| Gear Selection | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 14.76:1 |
| Seating Capacity | 2-Person |
| Weight w/o Batteries | 1040 lb (472 kg) |
| Curb Weight | 1410 lb (640 kg) |
| Vehicle Load Capacity | 2500 lb (1134 kg) |
| Bed Load Capacity | 2200 lb (998 kg) |
| Towing Capacity | 4600 lb (2087 kg) |
| Outside Clearance Circle | 22.0 ft (6.7 m) |
| Speed | 13 mph +/- 0.5 mph (21 kph +/-0.8 kph) |
| Steering | Rack & Pinion |
| Suspension | Independent, Transverse Leaf Spring, Shocks (Front) Leaf Springs and Shock Absorbers (Rear) |
| Service Brake | Rear Wheel Hydraulic Drum |
| Parking Brake | Hand-Operated Mechanical |
| Tires | 5.70 x 8 (Load Range C) |
