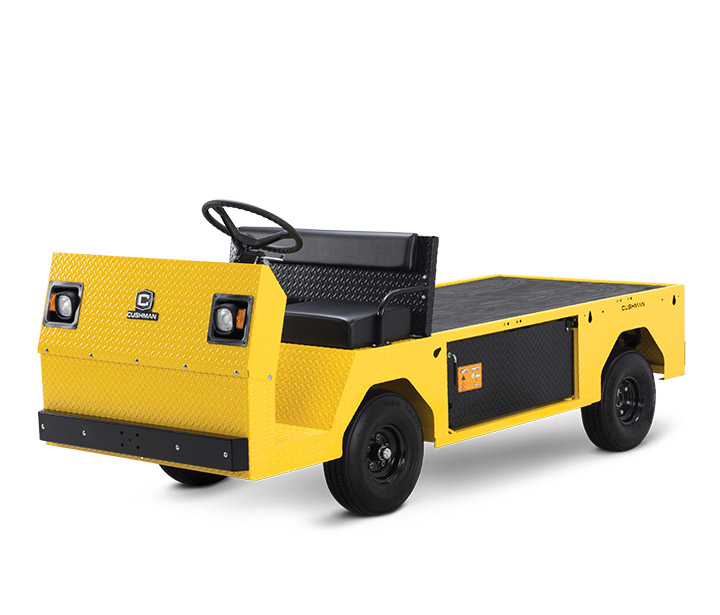

Cushman Titan XD
Electric Industrial Vehicles
Overview
The Titan XD is a force to be reckoned with – featuring AC power and IntelliBrake technology, it has the stamina required to carry load after load. With impressive towing performance up to 8,000 -lbs and hauling strength up to 3,000 -lbs, it’s easy to see how the Titan XD is blue-collar grit wrapped in diamond-plated steel.
Cushman equipment only available at our Concord, CA location.
| Battery (Qty/Type) | Eight, 6V Deep Cycle, Swing Out |
|---|---|
| Battery Charger | 48V On-Board, Delta Q 120V AC, UL & CSA |
| Bed Load Capacity | 2600 lb (1179 kg); 1600 lb (726 kg) EE | 2200 lb (998 kg); 1200 lb (544 kg) EE |
| Body & Finish | Diamond Plate Patterned. Poly Primer & Acrylic |
| Cargo Deck Capacity | 41.5 in (105) W x 75in (191 cm) L | 41.5 in (105) W x 53.5in (136 cm) L |
| Cargo Deck Material | Weather proof deck board |
| Curb Weight | 1756 lb (796 kg) | 1720 lb (780 kg) |
| Drive Train | Motor Shaft Direct Drive |
| Electrical System | 48-Volt |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Gear Selection | Dash-Mounted Forward-Neutral-Reverse |
| Ground Clearance | 4.75 (12.1 cm) at Differential |
| Horsepower (KW) | 17.2 hp (12.8 kw) Peak |
| Key or Pedal Start | Pedal |
| Outside Clearance Circle | 21.25 ft (6.47 m) |
| Overall Height | 47.0 in (119 cm) |
| Overall Length | 114.0 in (290 cm) |
| Overall Width | 44.5 in (113 cm) |
| Parking Brake | IntelliBrake Automatic Parking Brake |
| Power Source | 48-Volt DC |
| Rear Axle Ratio | 17:1 |
| Seating Capacity | 2-Person or 4-Person |
| Service Brake | Front hydraulic disc, Rear hydraulic drum |
| Speed Controller | 450 Amp AC |
| Speed | 14 mph +/- 0.5 mph (21 kph +/-0.8 kph); 5 mph ± .5 (8.1 kph ± .8) |
| Standard Color | Safety Yellow |
| Steering | Rack & Pinion |
| Suspension | Independent, Transverse Leaf Spring, Shocks (Front) Leaf Springs and Shock Absorbers (Rear) |
| Tires | 5.70 x 8 (Load Range C) |
| Towing Capacity | 8000 lb (3628 kg); 3000 lb (1361 kg) EE |
| Transaxle | Differential w/ Helical Gears |
| Vehicle Load Capacity | 3000 lb (1361 kg) |
| Weight w/o Batteries | 1260 lb (572 kg) | 1225 lb (569 Kg) |
| Wheel Base | 72.0 in (183 cm) |
| Wheel Track | 38.0 in (97 cm) Front 38.0 in (97 cm) Rear |
- 2- or 4-Passenger Seating
- 3,000-lb Vehicle Load Capacity
- 48V AC Electric Drivetrain
- 8,000-lb Towing Capacity
| Titan XD Electric | |
|---|---|
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Body & Finish | Diamond Plate Patterned. Poly Primer & Acrylic |
| Standard Color | Safety Yellow |
| Overall Length | 114.0 in (290 cm) |
| Overall Width | 44.5 in (113 cm) |
| Overall Height | 47.0 in (119 cm) |
| Wheel Base | 72.0 in (183 cm) |
| Wheel Track | 38.0 in (97 cm) Front 38.0 in (97 cm) Rear |
| Ground Clearance | 4.75 (12.1 cm) at Differential |
| Cargo Deck Capacity | 41.5 in (105) W x 75in (191 cm) L | 41.5 in (105) W x 53.5in (136 cm) L |
| Cargo Deck Material | Weather proof deck board |
| Power Source | 48-Volt DC |
| Horsepower (KW) | 17.2 hp (12.8 kw) Peak |
| Electrical System | 48-Volt |
| Battery (Qty/Type) | Eight, 6V Deep Cycle, Swing Out |
| Battery Charger | 48V On-Board, Delta Q 120V AC, UL & CSA |
| Key or Pedal Start | Pedal |
| Speed Controller | 450 Amp AC |
| Drive Train | Motor Shaft Direct Drive |
| Transaxle | Differential w/ Helical Gears |
| Gear Selection | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 17:1 |
| Seating Capacity | 2-Person or 4-Person |
| Weight w/o Batteries | 1260 lb (572 kg) | 1225 lb (569 Kg) |
| Curb Weight | 1756 lb (796 kg) | 1720 lb (780 kg) |
| Vehicle Load Capacity | 3000 lb (1361 kg) |
| Bed Load Capacity | 2600 lb (1179 kg); 1600 lb (726 kg) EE | 2200 lb (998 kg); 1200 lb (544 kg) EE |
| Towing Capacity | 8000 lb (3628 kg); 3000 lb (1361 kg) EE |
| Outside Clearance Circle | 21.25 ft (6.47 m) |
| Speed | 14 mph +/- 0.5 mph (21 kph +/-0.8 kph); 5 mph ± .5 (8.1 kph ± .8) |
| Steering | Rack & Pinion |
| Suspension | Independent, Transverse Leaf Spring, Shocks (Front) Leaf Springs and Shock Absorbers (Rear) |
| Service Brake | Front hydraulic disc, Rear hydraulic drum |
| Parking Brake | IntelliBrake Automatic Parking Brake |
| Tires | 5.70 x 8 (Load Range C) |
