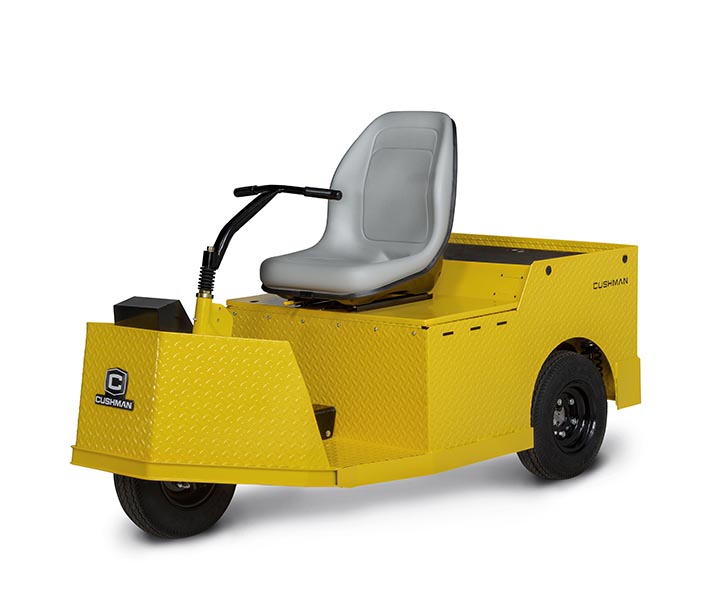

Cushman Tug™ 8k AC

Electric Industrial Vehicles

Overview

Take your towing up a notch. Built for one specific job, the Tug tow tractor gives your facility the power to pull loads that were previously unmovable. No matter the load, you can count on the Tug to pull its weight.

Cushman equipment only available at our Concord, CA location.

Battery (Qty/Type)Six, 8V Deep Cycle
Battery Charger48V DC On-Board, 1000W
Body & Finish4-way Embossed Diamond Pattern
Cargo Deck MaterialHIP Board
Curb Weight936 lb (425 kg)
Drive TrainMotor Shaft Direct Drive GEAR SELECTION
Electrical System48V
FrameWelded Steel w/ DuraShield™ Powder Coat
Gear SelectionDash Mounted (Key Switch)
Horsepower (KW)Continuous 6.7hp (5kw); Peak 15.4hp (11.5kw)
Key or Pedal StartPedal
Outside Clearance Circle9.0 ft (2.8 m)
Overall Height37.0 in (94 cm)
Overall Length76.0 in (193 cm)
Overall Width34.5 in (88 cm)
Parking BrakeTorsion Block (Front) / Coil Over Shock SERVICE BRAKE
Power Source48V DC
Rear Axle Ratio17.05:1
Seating Capacity1-Person
Service Brake2-Wheel Hydraulic Drum
Speed Controller350 AMP AC Programmable. SRO Capable
Speed7.8 mph +/- 0.5 mph (12.6 kph +/- 0.8 kph)
Standard ColorSafety Yellow
SteeringHandlebar
SuspensionTorsion Block (Front) / Coil Over Shock
TiresUSA Trail 4.80 x 8 (Load Range B)
Towing Capacity8000 lb (3629 kg)
Vehicle Load Capacity650 lbs (295 kg)
Weight w/o Batteries508 lb (230 kg)
Wheel Base52.5 in (133 cm)
Wheel TrackN/A Front / 29.7 in (75 cm) Rear
  • 4.9-sq-ft Cargo Deck
  • 48V AC Electric Drivetrain
  • 650-lb Vehicle Load Capacity
  • 8,000-lb Towing Capacity
  Tug 8k AC Electric
Frame Welded Steel w/ DuraShield™ Powder Coat
Body & Finish 4-way Embossed Diamond Pattern
Standard Color Safety Yellow
Overall Length 76.0 in (193 cm)
Overall Width 34.5 in (88 cm)
Overall Height 37.0 in (94 cm)
Wheel Base 52.5 in (133 cm)
Wheel Track N/A Front / 29.7 in (75 cm) Rear
Cargo Deck Material HIP Board
Power Source 48V DC
Horsepower (KW) Continuous 6.7hp (5kw); Peak 15.4hp (11.5kw)
Electrical System 48V
Battery (Qty/Type) Six, 8V Deep Cycle
Battery Charger 48V DC On-Board, 1000W
Key or Pedal Start Pedal
Speed Controller 350 AMP AC Programmable. SRO Capable
Drive Train Motor Shaft Direct Drive GEAR SELECTION
Gear Selection Dash Mounted (Key Switch)
Rear Axle Ratio 17.05:1
Seating Capacity 1-Person
Weight w/o Batteries 508 lb (230 kg)
Curb Weight 936 lb (425 kg)
Vehicle Load Capacity 650 lbs (295 kg)
Towing Capacity 8000 lb (3629 kg)
Outside Clearance Circle 9.0 ft (2.8 m)
Speed 7.8 mph +/- 0.5 mph (12.6 kph +/- 0.8 kph)
Steering Handlebar
Suspension Torsion Block (Front) / Coil Over Shock
Service Brake 2-Wheel Hydraulic Drum
Parking Brake Torsion Block (Front) / Coil Over Shock SERVICE BRAKE
Tires USA Trail 4.80 x 8 (Load Range B)
