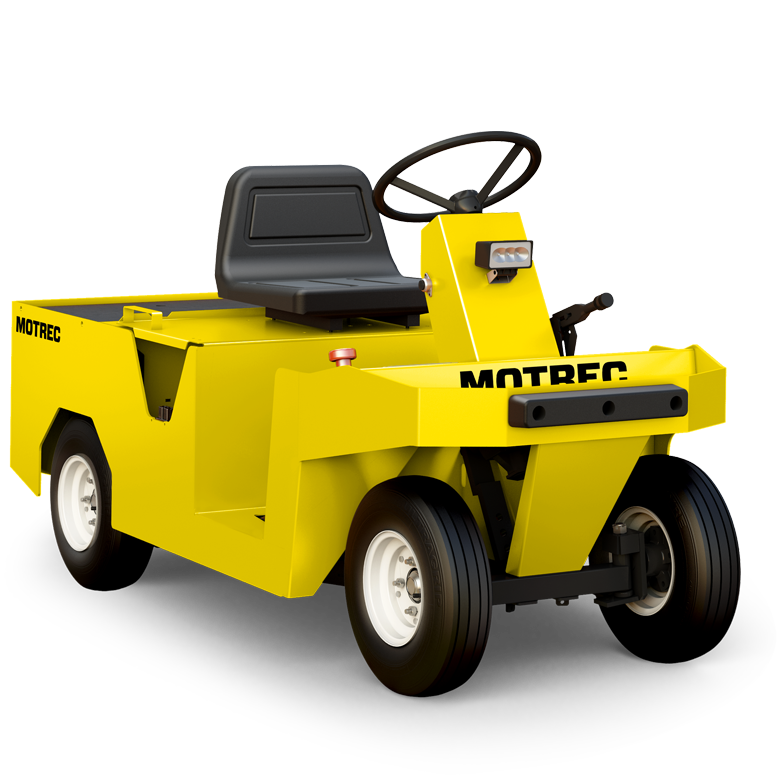

Built on our popular MP-250 base, the more powerful MT-290 is equal parts modern workhorse and mobile workshop. Its efficient AC motor offers impressive acceleration, even when towing loads of 16,000 lbs.* Its all-steel construction and four-wheel vibration dampening design ensure a smooth and stable ride even on bumpy surfaces. This agile, round-the-clock tow tractor effortlessly maneuvers through challenging areas, including doorways. A multi-purpose tugger boasting a long-lasting industrial battery with easy under-the-seat access.

  • + Expand All
  • - Close All
  • SpecificationsTable
    24V Narrow 36V HD 48V
    Powertrain
    Motor 6 hp shunt motor Brushless AC motor, 7.5 HP Intermittent, 10 HP Max Brushless AC motor, 9 HP Intermittent, 15 HP Max
    Drive Axle Differential with automotive ring gear Helical gear differential Helical gear differential
    Transmission Dual V-belt drive Direct drive Direct drive
    Controller SEPEX Electronic speed controller AC Electronic speed controller AC Electronic speed controller
    Energy
    Voltage 24V 36V 48V
    Battery Four 6V-232AH batteries No battery included No battery included
    Charger High-Frequency Charger, improves battery performance, prevents current surge, 50/60HZ, 110/220VAC No charger included No charger included
    Chassis
    Body 14-G diamond-plate steel body, tubular frame All-steel unibody construction All-steel unibody construction
    Brakes Dual self-adjusting mechanical drum brakes on rear, hand lever parking brake, regenerative braking Rear hydraulic drum brakes, regenerative braking Rear hydraulic drum brakes, regenerative braking
    Steering Automotive Steering Wheel Automotive steering wheel Automotive steering wheel
    Equipment
    Indicators Battery status indicator Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
    Accessories Bolt-on bumpers and rear wheel guards, 24V accessories to equalize cells and extend battery life 36V/12V converter for 12-volt accessories, bolt-on front bumper 48V/12V converter for 12-volt accessories, bolt-on bumpers and rear wheel guards
  • Wheels: 4.8x8 LRC pneumatic tires
  • Safety: Reverse alarm, deadman seat switch, horn
  • Seats: Bucket seat on slide adjusters
  • Suspension: Dual leaf springs on rear
  • Lights: LED headlight & tail/brake light
