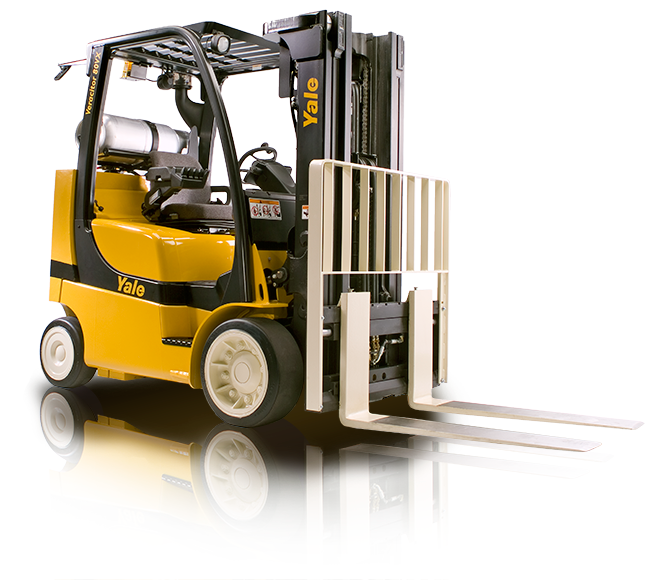

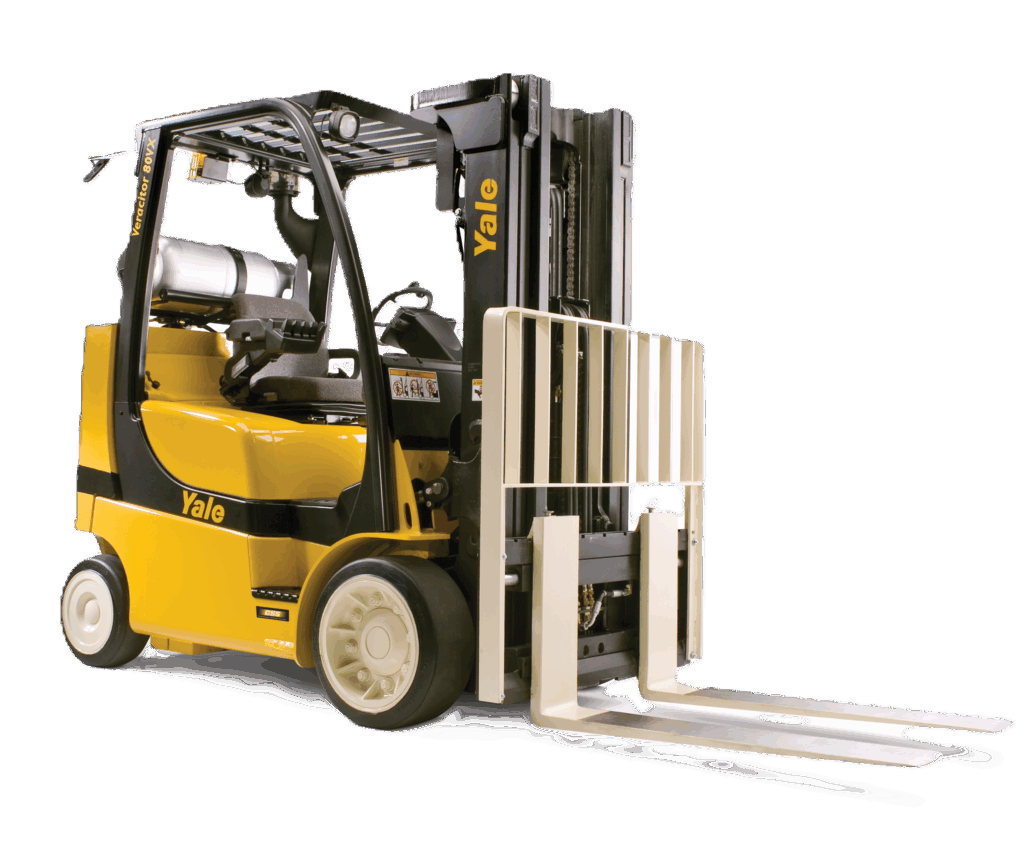

Yale GC080-120VX
Forklifts
Customizable Lift Trucks That Get the Job Done
The Veracitor® GC080-120VX lift truck series delivers maximum performance for medium to heavy duty indoor applications. By supplying various powertrain combinations, the series offers the flexibility to meet your application needs, while also providing standard features and options to maximize the productivity, efficiency and performance of your operations.
| Capacity | 8,000 - 12,000 lbs |
|---|---|
| Max Height | 310 |
| Max Weight | 12000 lbs |
| Series Title | GC080-120VX |
| Type | Internal Combustion Cushion Tire Lift Truck |
| Weight | lbs |
- Advanced transmissions are built for durability and patented controllability, while extending tire and brake life up to 50%
- Combi-cooler contains an individual transmission oil cooler to maximize heat dissipation
- Engine features Yale® Flex Performance Technology™, selectable performance modes that provide the flexibility to maximize fuel economy or productivity to match application requirements
- Ergonomic operator compartment includes optimized step height with non-slip tread, soft touch contoured hand grip and infinitely adjustable steer column
- For applications requiring the use of attachments; Yale® attachment ready models are available with a factory modified front end, which allow for seamless truck and Bolzoni Auramo attachment interface.
- Full venting package draws air into the engine compartment from higher on the truck to enhance airflow and avoid radiator clogging
- Fully sealed wet disc brakes virtually eliminate brake maintenance and often last the life of the truck
- On-demand hydraulic system featuring Accutouch mini-lever controls pumps oil only when required, reducing fuel consumption
- Powertrain combinations include Kubota 3.8L spark-ignited LPG engine
| Model | Model Designation | Load Capacity (lbs.) | Engine | Transmission | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) |
|---|---|---|---|---|---|---|
| GC080VX | Internal Combustion Trucks | 8000 | Kubota 3.8L LPG | Electronically Controlled Powershift 1 & 2 Speeds, Techtronix100 Electronic 1 Speed, Techtronix100X Electronic 2 Speed | 14 | 122 |
| GC080VXBCS | Internal Combustion Trucks | 8000 | Kubota 3.8L LPG | Electronically Controlled Powershift 1 & 2 Speeds, Techtronix100 Electronic 1 Speed, Techtronix100X Electronic 2 Speed | 13.9 | 122 |
| GC100VX | Internal Combustion Trucks | 10000 | Kubota 3.8L LPG | Electronically Controlled Powershift 1 & 2 Speeds, Techtronix100 Electronic 1 Speed, Techtronix100X Electronic 2 Speed | 13.8 | 112 |
| GC100VXBCS | Internal Combustion Trucks | 10000 | Kubota 3.8L LPG | Electronically Controlled Powershift 1 & 2 Speeds, Techtronix100 Electronic 1 Speed, Techtronix100X Electronic 2 Speed | 13.7 | 112 |
| GC120VX | Internal Combustion Trucks | 12000 | Kubota 3.8L LPG | Electronically Controlled Powershift 1 & 2 Speeds, Techtronix100 Electronic 1 Speed, Techtronix100X Electronic 2 Speed | 13.7 | 112 |
| GC120VXPRS | Internal Combustion Trucks | 12000 | Kubota 3.8L LPG | Electronically Controlled Powershift 1 & 2 Speeds, Techtronix100 Electronic 1 Speed, Techtronix100X Electronic 2 Speed | 13.7 | 112 |
