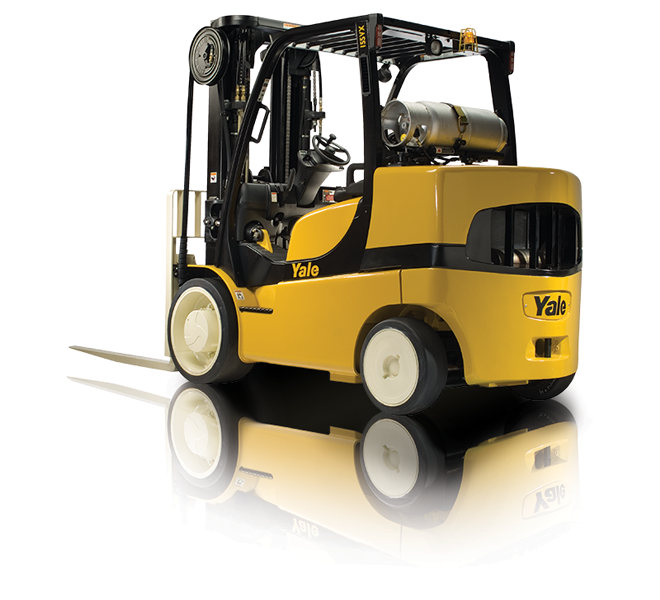

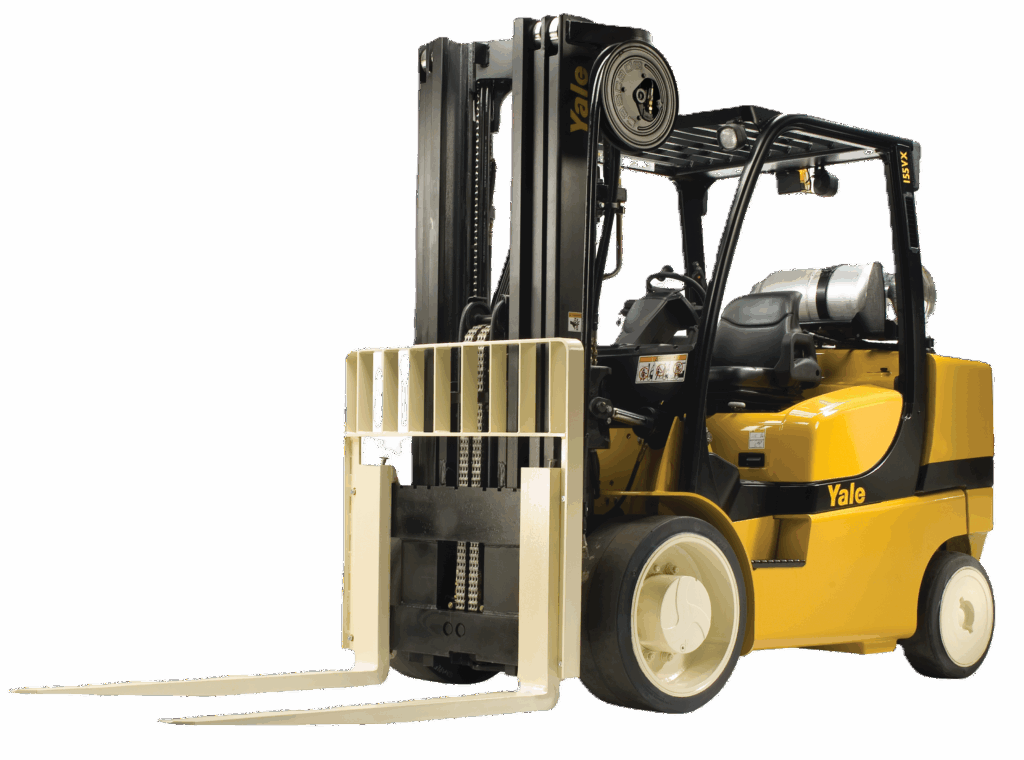

Yale GC135-155VX
Forklifts
Equipment Features
- Ergonomic comfort in the spacious open operator compartment is one of the keys to exceptional productivity.
- Exceptional travel and lift speeds meet the demands of tough applications where paper, steel, machinery and fabricated metal are moved and various attachment usage is required.
- For applications requiring the use of attachments; Yale® attachment ready models are available with a factory modified front end, which allow for seamless truck and Bolzoni Auramo attachment interface.
| Capacity | 13,500 - 15,500 lbs |
|---|---|
| Max Height | 244 |
| Max Weight | 15500 lbs |
| Series Title | GC135-155VX |
| Type | Internal Combustion Cushion Tire Lift Truck |
| Weight | lbs |
- Powerful engines and multiple fuel choices are keys to the outstanding performance of the GC135-155VX.
Exceptional Precision in the Most Rugged Applications

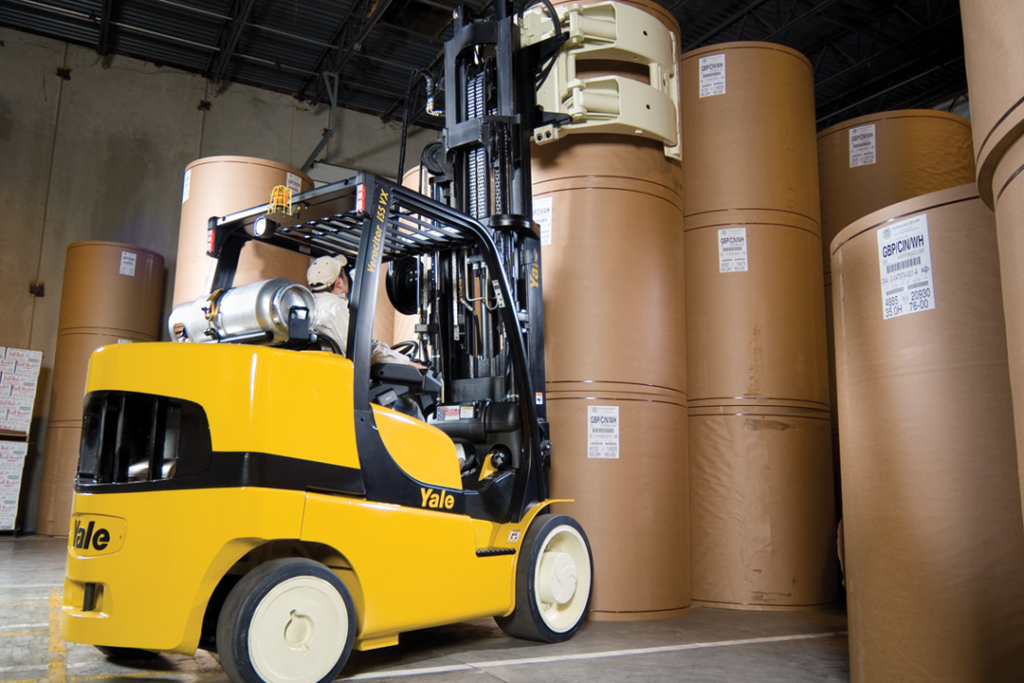

Ideal for indoor heavy duty applications, the GC135-155VX trucks provide the durability and versatility that you need to get the job done. The GC135-155VX series is best suited for the paper, steel, machinery and fabricated metal industries.
Their rugged powertrain and electronic powershift transmission offer smooth direction changes and decrease maintenance requirements. Features such as the O-Ring face seal hydraulic fittings eliminate pipe fittings, creating leak-free joints. Their reliability and innovation will enhance uptime and improve productivity so you can get back to business.
| Model | Model Designation | Load Capacity (lbs.) | Engine | Transmission | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) |
|---|---|---|---|---|---|---|
| GC135VX | Internal Combustion Trucks | 13500 | PSI 4.3L V6, Kubota 3.8L Tier 4I Turbodiesel | 2 Speed electronic Powershift, Techtronix 332 – 3 Speed | 12.3 | 104.3 |
| GC155VX | Internal Combustion Trucks | 15500 | PSI 4.3L V6, Kubota 3.8L Tier 4I Turbodiesel | 2 Speed electronic Powershift, Techtronix 332 – 3 Speed | 12.3 | 104.3 |
