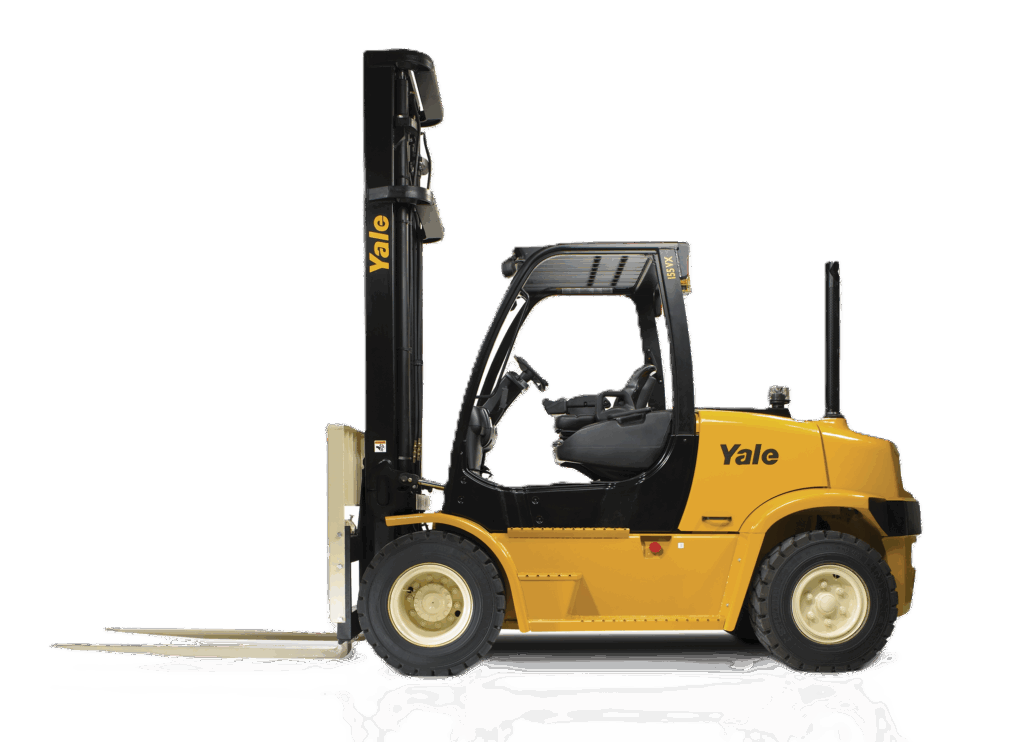

GP135-155VX

  • Yale®
  • Internal Combustion Pneumatic Tire Trucks

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Excellent Efficiency with Ergonomic Advances


The GP135-155VX series offers excellent hourly cost and is meant to lower your cost of acquisition without compromising performance. Its ergonomic advances keep your operators safe and ward off fatigue with innovative features like an optional swivel seat and a rear drive handle with an integrated horn button. The Auto Deceleration System reduces brake pedal usage, saving both operator leg fatigue and enhancing brake life.

The GP135-155VX series provides materials handling solutions in a variety of heavy duty applications. The truck features reliable components such as sealed connectors that allow the truck to be pressure washed and O-ring face seals that eliminate pipe fittings, creating leak-free joints.

  • The GP135-155VX series features multiple powertrain configurations that provide improved efficiency, while enhancing reliability and superior serviceability to reduce your operating costs.
  • Patented Techtronix 332 transmission provides breakthrough features that include the Auto Deceleration System, controlled rollback on ramps and controlled power reversals to move loads more efficiently with less operator fatigue and product damage.
  • Exceptional travel and lift speeds meet the demands of tough applications where steel, heavy machinery and fabricated metal are moved and various attachment usage is required.
  • For applications requiring the use of attachments; Yale® attachment ready models are available with a factory modified front end, which allow for seamless truck and Bolzoni Auramo attachment interface.
  • + Expand All
  • - Close All
  • ModelTable
    Model Model Designation Load Capacity (lbs.) Engine Transmission Maximum Travel Speed (mph) Maximum Lift Speed (ft/min)
    GP135VX Internal Combustion Trucks 13500 Standard: PSI 4.3L V6 LPG Optional: Kubota 3.8L DOC Tier 4 Final Turbodiesel Optional: Kubota 3.8L High Output Tier 4 Final Turbodiesel Standard: 2-Speed Powershift Optional: 3-Speed Techtronix 332 15.2 102
    GP155VX Internal Combustion Trucks 15500 Standard: PSI 4.3L V6 LPG Optional: Kubota 3.8L DOC Tier 4 Final Turbodiesel Optional: Kubota 3.8L High Output Tier 4 Final Turbodiesel Standard: 2-Speed Powershift Optional: 3-Speed Techtronix 332 15.2 90
    GP155SVX Internal Combustion Trucks 15500 Standard: PSI 4.3L V6 LPG Optional: Kubota 3.8L DOC Tier 4 Final Turbodiesel Optional: Kubota 3.8L High Output Tier 4 Final Turbodiesel Standard: 2-Speed Powershift Optional: 3-Speed Techtronix 332 15.2 90
  • Series Title: GP135-155VX
  • Max Height: 232
  • Weight: lbs
  • Max Weight: 15500 lbs
  • Type: Yale Veracitor Forklift Trucks With Pneumatic Tires
  • Capacity: 13,500 – 15,500 lbs
