Combilift Combi WR Walkie Reach Stacker

Combilift Combi WR Walkie Reach Stacker

Combilift Combi WR Walkie Reach Stacker

Combilift Combi WR Walkie Reach Stacker

Combi WR Walkie Reach Stacker

Combilift
Multi-Directional

Find a location to get your local store information and inventory.

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

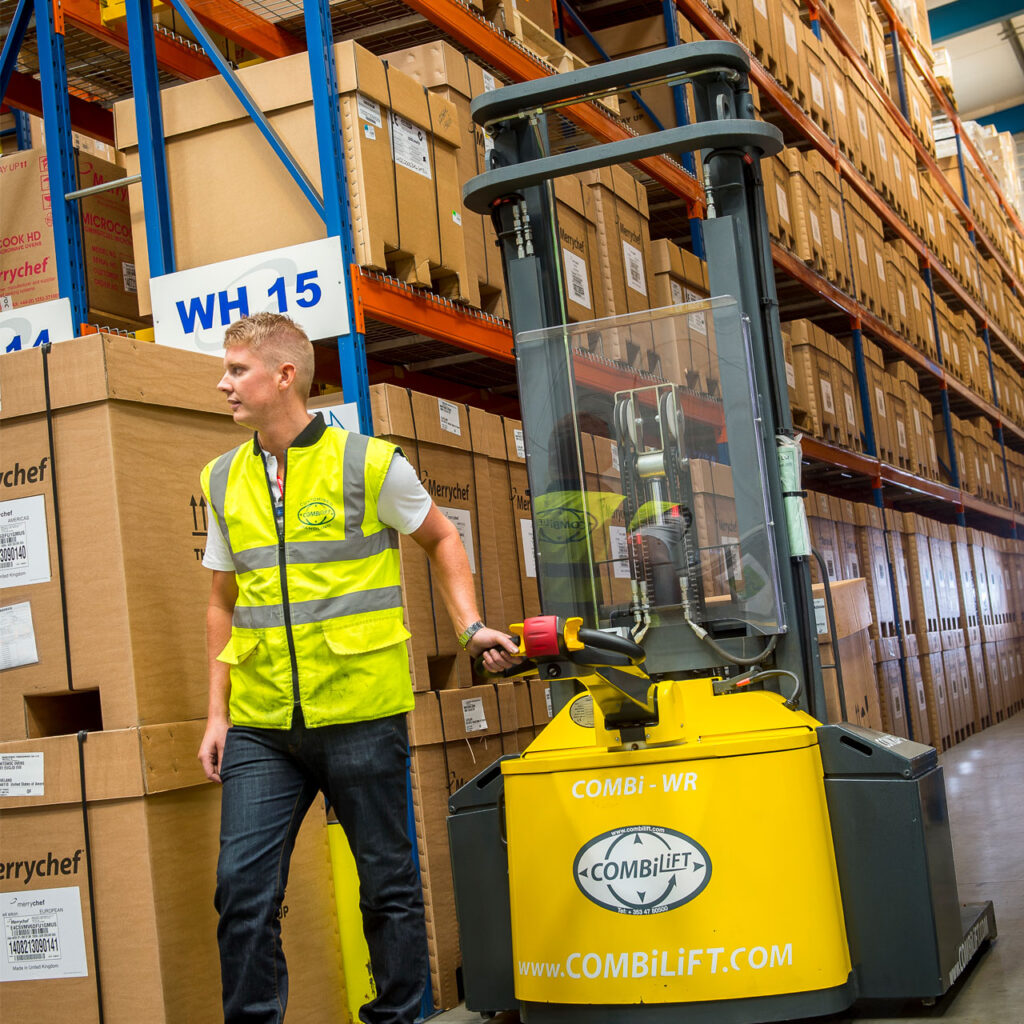

The Combi-WR is the first purpose built pedestrian reach-stacker with the capability to operate in a VNA working aisle – down to 2.1 m. This is achieved through a unique patented multi-position tiller arm that places the operator in the safest possible position.

Incorporating the benefits of AC technology in its traction, pump and steering motors, the Combi-WR has a lift height that can be tailored to your application with load capacities up to 1,450kg.

Electronic power steering and fingertip controls ensure effortless operation, even in the most demanding environments.

Works in a standard VNA working aisle, down to 2.1m
Unique pedestrian walkie reach-stacker
Electronic steering and fingertip controls for precise handling
AC electric motor

Specifications

Leg Height: 127 mm
Capacity: 1450 kg @ 3200 mm Lift
Leg Length: 530 mm
24V / 2.5 kW AC Electric Pump Motor: 24V / 5 kW
Fork Travel: 590 mm
Track Front: 1165 mm
Wheelbase: 1172 mm
Overall Length: 1950 mm
Fork Forward Tilt: 3 degrees
Gradeability: 5%
Overhang Back: 175 mm
Fork Backward Tilt: 3 degrees
Mast Range: 3000 mm to 4900 mm
Width: 1320 mm
Maximum Ground Speed: 6 Km/h
Minimum Outside Radius: 1350 mm
AC Electric Traction Motor: 24V / 2.5 kW
Rear Tyre (Vulkollan): OD250mm/Width75mm
Ground Clearance Under Mast: 80 mm
Fork Side Shift: 80 mm Left / 80 mm Right
Unladen Weight: 2500 kg / 2600 kg / 2700 kg
Load Centre Distance: 600 mm
Length from Face of Fork: 880mm
Frame Opening: 1008 mm
Fork Section: 35mmx100mmx1070mm
Overhang Front: 603 mm
Outside Spread of Fork Arms: 815 mm
Battery Capacity Range: 24V / 270 Ah
Standard Colour*: Yellow and Grey
Front Tyre x (Polyurethane): OD127mm/Width75mm
