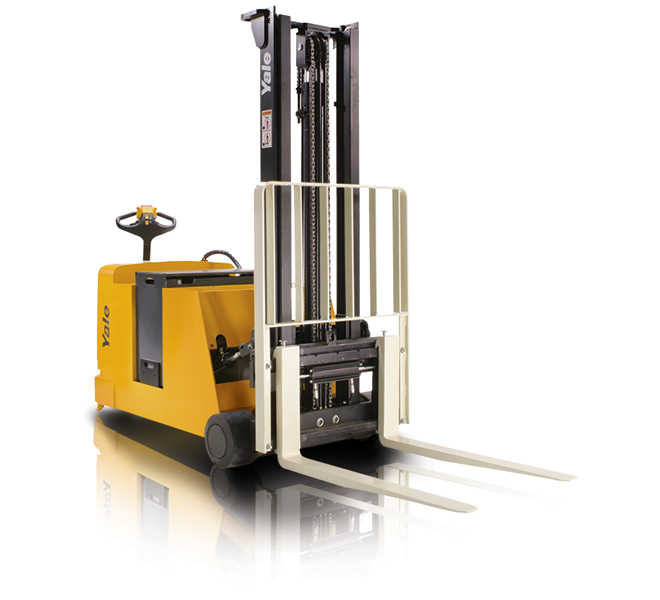

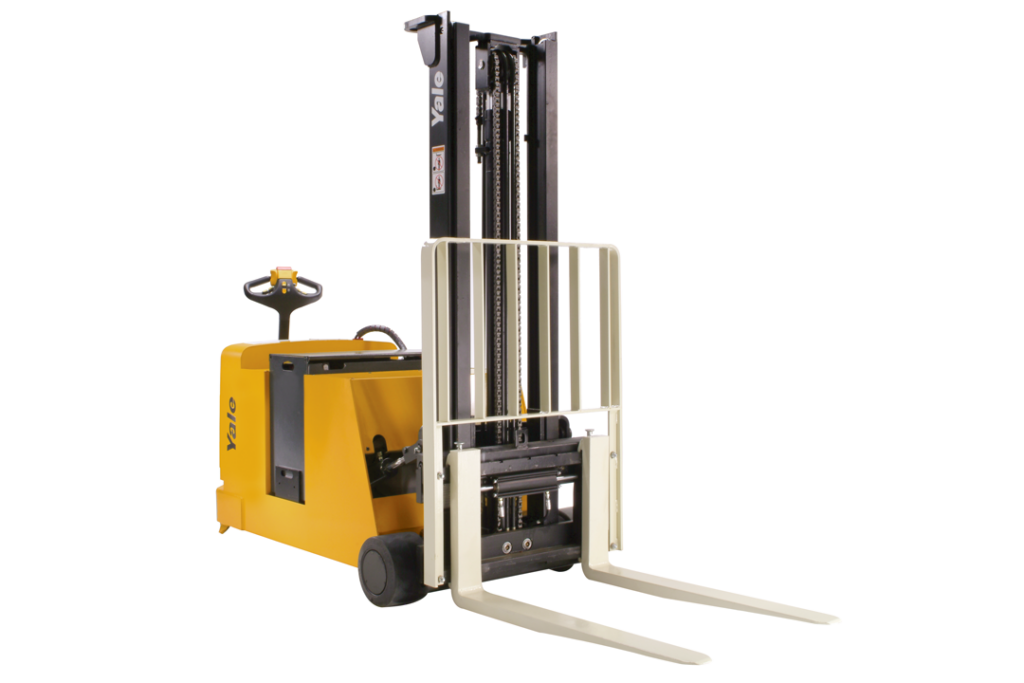

Yale MCW025-040E
Forklifts
Equipment Features
- The MCW025-040E bottom mounted tiller handle design optimizes the operating position and reduces the steering effort.
- The MCW025-040E excels in manufacturing and warehousing applications where load transporting and stacking/retrieving is required.
- The MCW025-040E has been designed using a stationary separately ignited drive motor in conjunction with an advanced transistorized hoist and traction controller to enhance truck performance and reliability.
| Capacity | 2,500 – 4,000 lbs |
|---|---|
| Max Height | 225 |
| Max Weight | 4000 lbs |
| Series Title | MCW025-040E |
| Type | Counterbalanced Stackers |
| Weight | lbs |
- Three performance modes, easily changed by the operator through the control handle, allow you to tailor truck performance to the application.
Efficient Manufacturing and Warehousing with the Superior Stacker
Stacking and warehousing will never be the same with the MCW025-040E stacker truck series. The superior quality of the energy efficient MOSEFT traction and hoist controller allows for greener warehousing that can contribute to your bottom line.
The ergonomic design allow for enhanced operator productivity and reduced fatigue with an innovative control handle, fingertip variable that lifts and lowers, convenient on-board diagnostics and auto deceleration system. The MCW025-040E also features hydraulic control levers, hoist unit and pump that keeps adds to the superior experience with Yale®.
| Model | Model Designation | Load Capacity (lbs.) | Battery | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) | Lower Lift Speed (ft/min) |
|---|---|---|---|---|---|---|
| MCW040-E | Pallet Stackers | 4000 | 24 | 3.1 | 36 | 60 |
| MCW030-E | Pallet Stackers | 3000 | 24 | 3.4 | 36 | 60 |
| MCW025-E | Pallet Stackers | 2500 | 24 | 3.5 | 36 | 60 |
