MSW025F-30F-MSW040E

  • Yale®
  • Pallet Stackers

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Superior Stack Ability and Reliability on the Loading Dock

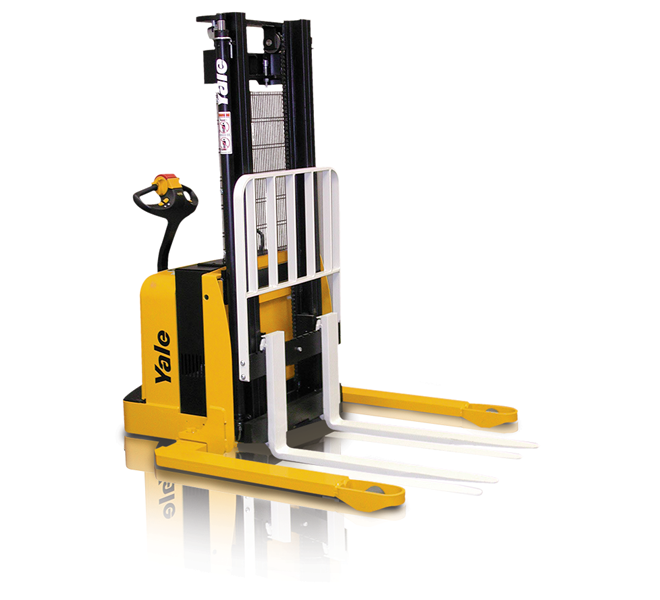

The MSW025F-30F-MSW040E straddle stacker is your reliable lift truck that exceeds application requirements and raises productivity. Ergonomically designed to improve comfort and reduce fatigue, the innovative control handle and fingertip variable lift and lower functions greatly enhance efficiency.

Designed to require less service time, the forklift’s auto deceleration system takes pressure off of the brakes allowing for less wear. Although the truck needs less time in the shop, when maintenance is required, the MSW025F-30F-MSW040E series boast superior serviceability that increases uptime and productivity.
  • The MSW025-030F has been designed using a separately excited drive motor in conjunction with an advanced transistorized hoist and traction controller to enhance truck performance and reliability.
  • The MSW025-030F straddle stacker truck excels in work environments or on a back dock with two or three levels of stacking.
  • The MSW025-030F bottom mounted tiller handle design optimizes the operating position and reduces steering effort.
  • Three performance modes, easily changed by the operator through the control handle, allow you to tailor truck performance to the application.
  • Outriggers are field adjustable to 37', 42' and 49' ID-45', 50' and 57' OD.
  • + Expand All
  • - Close All
  • ModelTable
    Model Model Designation Load Capacity (lbs.) Battery Maximum Travel Speed (mph) Maximum Lift Speed (ft/min) Lower Lift Speed (ft/min)
    MSW025-F Pallet Stackers 2500  24 3.5 30 60
    MSW030-F Pallet Stackers 3000  24 3.5 30 60
    MSW040-E Pallet Stackers 4000  24 3.6 27.5 52.5
  • Type: Electric Straddle Stackers
  • Weight: lbs
  • Max Height: 186
  • Max Weight: 4000 lbs
  • Series Title: MSW025F-30F-MSW040E
  • Capacity: 2,500 – 3,000 lbs
