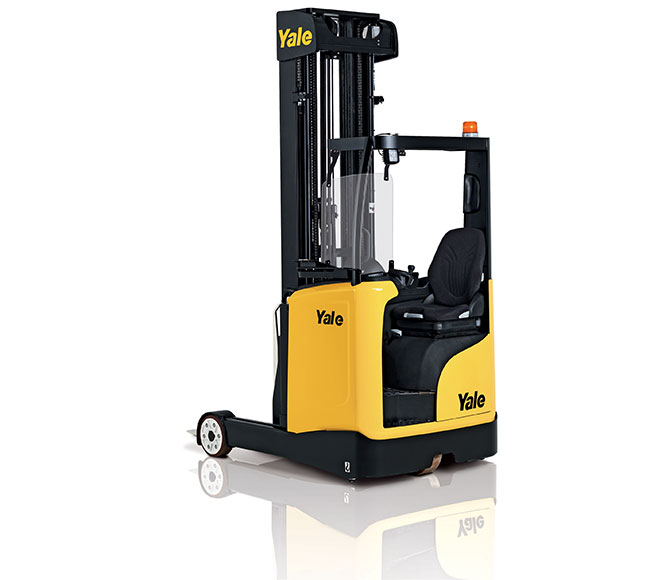

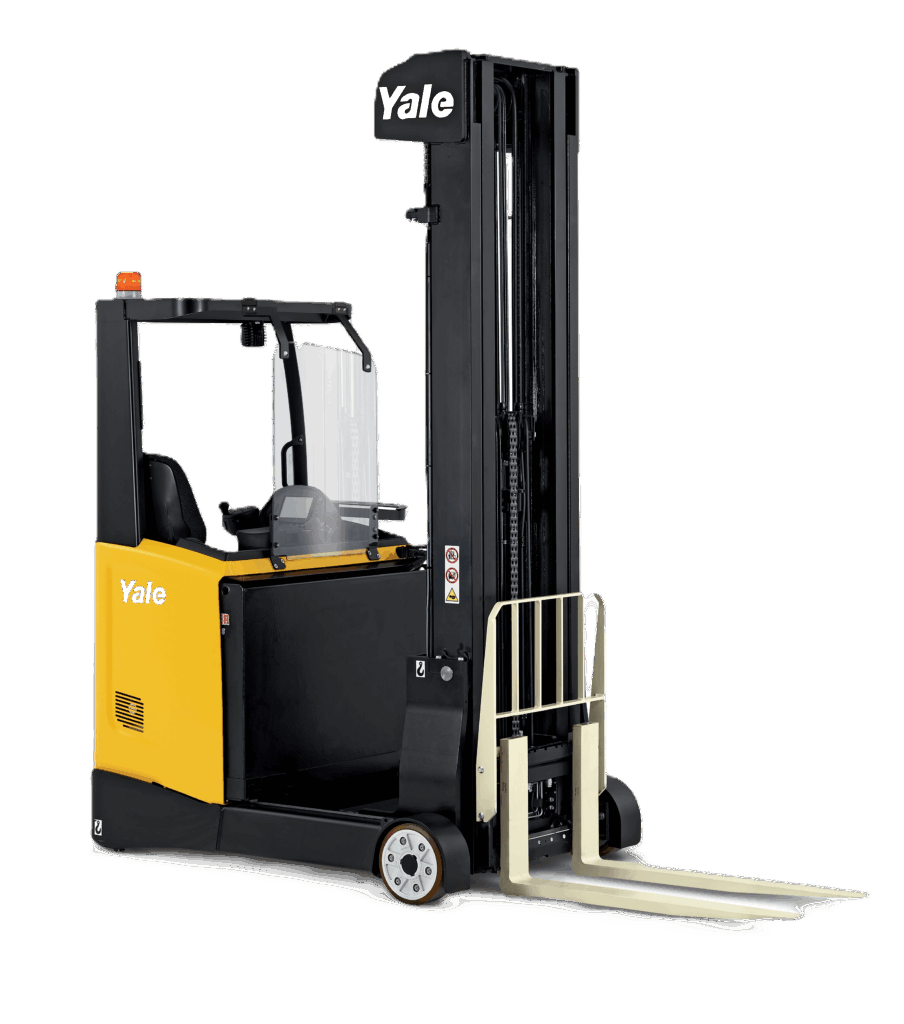

Yale MR14-25
Forklifts
The Flexibility to Reach Higher, Faster
Are you looking for a solution to help your operations reach higher, faster? With seven models ranging in capacity from 3,000 – 5,500 lbs., five chassis options and numerous standard and optional features, the Yale® MR14-25 moving mast reach truck offers a flexible solution designed to help you do just that.
| Capacity | 3,000 - 5,500 lbs |
|---|---|
| Max Height | 501 |
| Max Weight | 5500 lbs |
| Series Title | MR14-25 |
| Type | MR Moving Mast Reach Truck |
| Weight | lbs |
- ‘Get Home’ function can be activated after all functions come to rest, allowing operators to drive the truck to an appropriate place for repair
- 12 month/unlimited hours full truck limited warranty
- 36 month/6,000 hour powertrain limited warranty
- Choice of 180°/360° steering for seamless direction changes in narrow aisles
- Dual CANbus technology identifies operator errors and malfunctions, helping determine problems for a fast fix
- Ergonomically designed side seated compartment, full suspension adjustable seat and adjustable steering column
- Lifetime frame warranty
- Maximum travel speeds of 8.7 mph, mast speeds up to 143 fpm and lifting heights up to 502”
- Optional cold storage cabin provides a more comfortable work environment in -22°F (-30°C) conditions
- Optional hydraulically operated extendable forks provide up to 30% more storage density
- Premium touch screen display allows continuous awareness of operational status, by providing PIN access, height preselect, fleet management information, weight indication, lift interrupt override and creep speed selection, when equipped with applicable options
- Robust mast design provides higher residual capacities and stable load handling, enabling faster put away and retrieval times
- Standard Accutouch mini-lever or optional joystick for simplified control
| Model | Load Capacity (lbs.) | Battery | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) | Lower Lift Speed (ft/min) |
|---|---|---|---|---|---|
| MR14 | 3000 | 48 | 8.7 | 143 | 108.3 |
| MR16 | 3500 | 48 | 8.7 | 143 | 108.3 |
| MR16N | 3500 | 48 | 8.7 | 143 | 108.3 |
| MR16HD | 3500 | 48 | 8.7 | 143 | 108.3 |
| MR20 | 4500 | 48 | 8.7 | 126 | 108.3 |
| MR20HD | 4500 | 48 | 8.7 | 133 | 108.3 |
| MR25 | 5500 | 48 | 8.7 | 126 | 108.3 |
