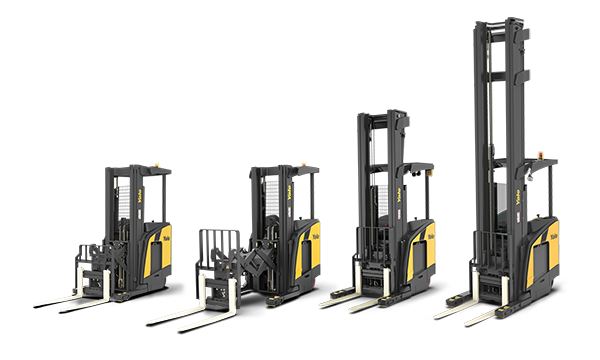

Yale NR/NDR-DC/EC
Forklifts
Equipment Features
- A raised overhead guard increases operator head clearance and helps improve line of sight at the 2nd and 3rd pick positions
- A redesigned mast combined with innovative design features such as frame profile, notched load backrest and lowered reach mechanism creates best-in-class forward visibility
- Access the motor and control compartments without the need for tools
| Capacity | 3,000 - 4,500 lbs |
|---|---|
| Max Height | 422 |
| Max Weight | 4000 lbs |
| Series Title | NR/NDR-DC/EC |
| Type | Yale Narrow Aisle Reach Trucks |
| Weight | lbs |
- Disassemble the pantograph in 4 steps without removing the carriage, saving up to 45 minutes per truck compared to leading competitors*
- Get more out of a single battery charge by using up to 20% less energy*
- Help increase productivity by as much as 7% per truck, per shift by moving at least one pallet more per hour than the leading competitor*
- Industry exclusive, forward stance with aft travel control handle and automotive steering provides natural steering familiarity in both directions
- Introducing a new multifunction, touch screen display
- Optional fork laser level line
- Optional wireless camera with built in LED lights
- Optional, industry exclusive Yale® Smart Ride suspended floor system helps reduce up to 60% of shock and vibration compared to conventional mat
- Patented, industry exclusive operator sensing system features a pedal-free design allowing operators freedom to adjust stance
- Save up to $2500** per truck, per year in scheduled maintenance costs compared to the competition
- Set and adjust mast rollers within minutes without shims, gauges or disassembly
- Shave seconds with industry-leading lift/lower cycle times
- Two operator compartment options (side stance and forward stance)
- Unlike competitors, an adjustable steer tiller, armrest and backrest are standard features on the side stance model
- Up to 1,000lb more capacity to height than previous model
Take performance to new heights with the new narrow aisle reach truck
Take performance to new heights with the new narrow aisle reach truck—a warehouse workhorse that can help you overcome the challenges in today’s warehouse applications. With a 3,000-4,500lb capacity range and single or deep reach capabilities, the Yale® NR/NDR030-040DC and NR/NDR030-045EC combine the latest technology with next-level performance to help exceed expectations in high-density warehousing.
| Model | Load Capacity (lbs.) | Battery | Maximum Travel Speed (mph) | Maximum Lift Speed (ft/min) | Lower Lift Speed (ft/min) |
|---|---|---|---|---|---|
| NDR030DC | 3000 | 24/36 | 6.5 | 66/77 | 85 |
| NR035DC | 3500 | 24/36 | 6.5 | 66/77 | 85 |
| NR040DC | 4000 | 24/36 | 6.5 | 66/77 | 85 |
| NDR030EC | 3000 | 36 | 7.5 | 150 | 110/140† |
| NDR035EC | 3500 | 36 | 8 | 175 | 140/160‡ |
| NR035EC | 3500 | 36 | 7.5 | 130 | 110 |
| NR040EC | 4000 | 36 | 7.5 | 150 | 110/140† |
| NR045EC | 4500 | 36 | 8 | 175 | 140/160‡ |
