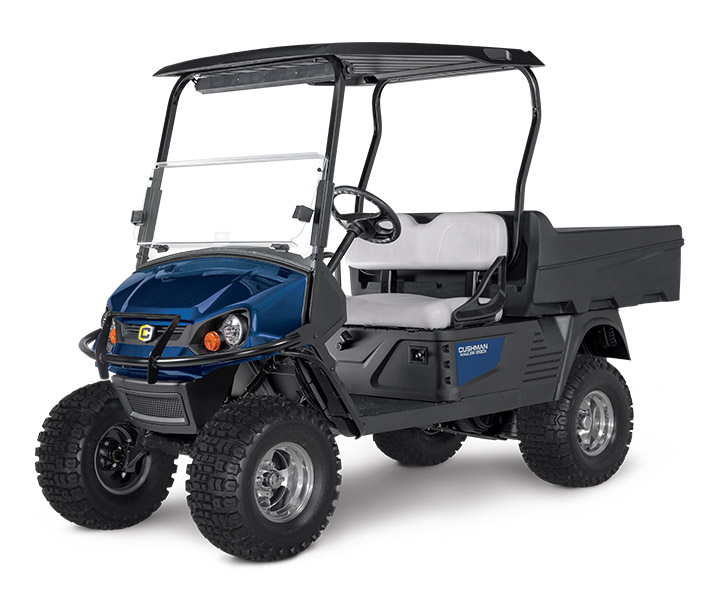

Cushman Hauler® 1200X
Agriculture & Construction
Overview
The Hauler® 1200X never backs down from a challenge. Armed with rugged tires, a lifted suspension and a dependable EFI gas engine, it can take large loads of cargo wherever you need them.
Cushman equipment only available at our Concord, CA location.
| Air Cleaner | Replaceable Dry Cartridge |
|---|---|
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Bed Load Capacity | 500 lb (227 kg) |
| Body & Finish | Injection Molded TPO |
| Cargo Deck Capacity | 12-cu-ft (0.34 m3) |
| Cargo Deck Material | Roto-Molded Polyethylene |
| Cooling System | Air Cooled |
| Curb Weight | 1003 lb (455 kg) |
| Drive Train | Continuously Variable Transmission (CVT) |
| Electrical System | Starter/Generator. Solid State Regulator |
| Frame | Welded Steel with DuraShield™ Powder Coat |
| Fuel Capacity | 6.0 Gallon (22.7 L) Tank |
| Gear Selection | Forward - Reverse |
| Ground Clearance | 7 in (17.8 cm) |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Key or Pedal Start | Pedal |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Outside Clearance Circle | 23.5 ft (7.2 m) |
| Overall Height | 52.5 in (133 cm) (w/o Roof) 77.0 in (195.6 cm) (w/ Struts & Roof) |
| Overall Length | 119 in (302.3 cm) |
| Overall Width | 49.4 in (125.5 cm) |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Power Source | 4-Cycle, 24.5 ci (401cc) Cylinder |
| Rear Axle Ratio | 11.47:1(Forward) 14.35:1(Reverse) |
| Seating Capacity | 2-Person |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Speed | 16.5 mph ± 0.5 mph (26.6 kph ± 0.8 kph) |
| Standard Color | Forest Green / Patriot Blue |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Tires | 20 x 8.00 - 10 |
| Towing Capacity | 1200 lb (544 kg) max |
| Transaxle | Differential w/ Helical Gears |
| Valve Train | Single Cylinder OHV |
| Vehicle Load Capacity | 900 lb (408 kg) |
| Wheel Base | 77.5 in (196.9 cm) |
| Wheel Track | 38.0 in (96.5 cm) Front 38.5 in (97.8 cm) Rear |
- 1,200-lb Towing Capacity
- 12-cu-ft Cargo Bed
- 13.5-hp EFI Gas Engine
- 2-Passenger Seating
- 500-lb Bed Load Capacity
- 900-lb Vehicle Load Capacity
| Hauler 1200X Sell Sheet | View Link |
|---|
| Hauler 1200X Gas | |
|---|---|
| Frame | Welded Steel with DuraShield™ Powder Coat |
| Body & Finish | Injection Molded TPO |
| Standard Color | Forest Green / Patriot Blue |
| Overall Length | 119 in (302.3 cm) |
| Overall Width | 49.4 in (125.5 cm) |
| Overall Height | 52.5 in (133 cm) (w/o Roof) 77.0 in (195.6 cm) (w/ Struts & Roof) |
| Wheel Base | 77.5 in (196.9 cm) |
| Wheel Track | 38.0 in (96.5 cm) Front 38.5 in (97.8 cm) Rear |
| Ground Clearance | 7 in (17.8 cm) |
| Cargo Deck Capacity | 12-cu-ft (0.34 m3) |
| Cargo Deck Material | Roto-Molded Polyethylene |
| Power Source | 4-Cycle, 24.5 ci (401cc) Cylinder |
| Valve Train | Single Cylinder OHV |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Electrical System | Starter/Generator. Solid State Regulator |
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Key or Pedal Start | Pedal |
| Air Cleaner | Replaceable Dry Cartridge |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Cooling System | Air Cooled |
| Fuel Capacity | 6.0 Gallon (22.7 L) Tank |
| Drive Train | Continuously Variable Transmission (CVT) |
| Transaxle | Differential w/ Helical Gears |
| Gear Selection | Forward – Reverse |
| Rear Axle Ratio | 11.47:1(Forward) 14.35:1(Reverse) |
| Seating Capacity | 2-Person |
| Curb Weight | 1003 lb (455 kg) |
| Vehicle Load Capacity | 900 lb (408 kg) |
| Bed Load Capacity | 500 lb (227 kg) |
| Towing Capacity | 1200 lb (544 kg) max |
| Outside Clearance Circle | 23.5 ft (7.2 m) |
| Speed | 16.5 mph ± 0.5 mph (26.6 kph ± 0.8 kph) |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Tires | 20 x 8.00 – 10 |
