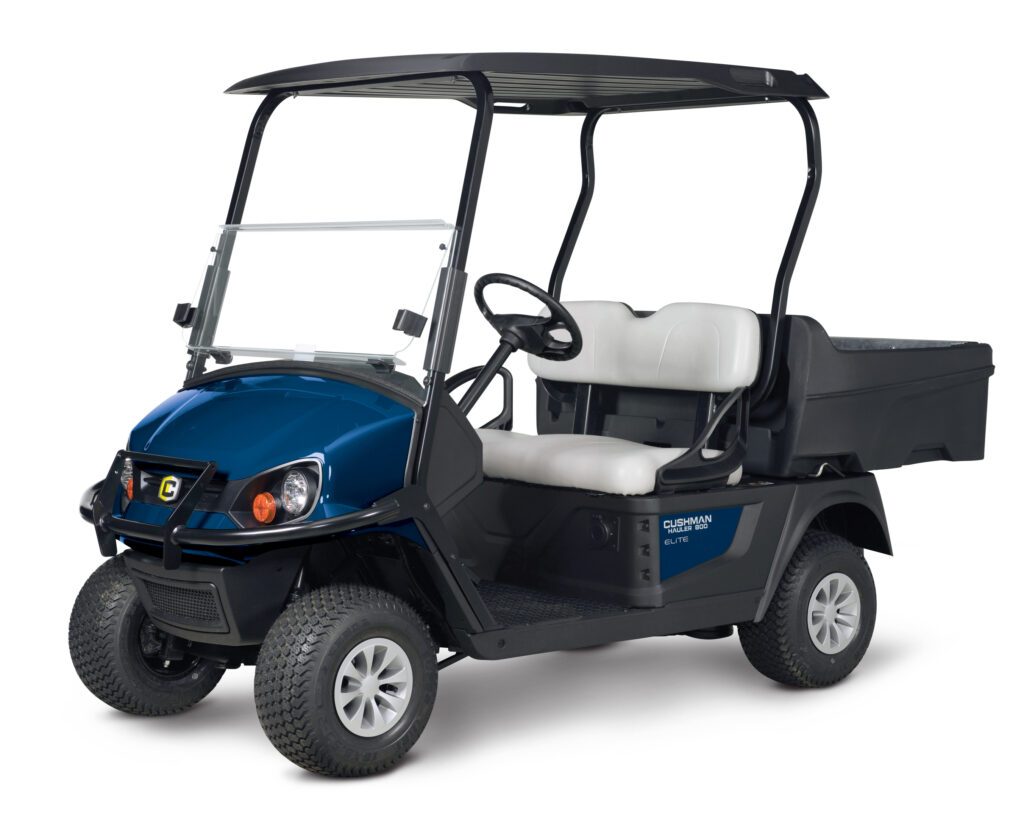

Cushman Hauler® 800 ELiTE
Golf & ProTurf
Overview
With faster charge time, consistent performance, increased range and a lightweight footprint, Hauler 800 ELiTE vehicles are designed to maximize productivity and decrease energy costs. A highly customizable bed, functional dash and a range of options make Hauler 800 ELiTE vehicles a must have for your crew.
Cushman equipment only available at our Concord, CA location.
| Battery (Qty/Type) | Two Lithium Ion 56 Volt |
|---|---|
| Bed Load Capacity | 400 lb (181 kg) |
| Body & Finish | Injection Molded TPO (front), Injection Molded PP (rear) |
| Cargo Deck Capacity | 8.4 cu ft (0.24 m3) |
| Curb Weight | 803 lb (364 kg) |
| Drive Train | Motor Shaft Direct Drive |
| Electrical System | 56-Volt |
| Frame | Welded steel with E-Shield ecoat plus DuraShield™ powder coat |
| Gear Selection | Dash Mount Forward-Neutral-Reverse |
| Ground Clearance | 4.3 in (11 cm) |
| Horsepower (KW) | 11.7 HP (8.7 kW) Peak |
| Key or Pedal Start | Pedal |
| Outside Clearance Circle | 18.9 ft (5.76 m) |
| Overall Height | 47 in (120 cm) |
| Overall Length | 110 in (280 cm) |
| Overall Width | 49 in (125 cm) |
| Parking Brake | Self-compensating, Single Point Engagement |
| Power Source | 56-Volt AC Drive |
| Rear Axle Ratio | 16.99:1 |
| Seating Capacity | 2 Person |
| Service Brake | Rear Wheel Mechanical Self-adjusting Drum |
| Speed | 14.5 +/-0.5 mph (23.3 +/- 0.8 kph) |
| Standard Color | Forest Green or Patriot Blue |
| Steering | Self-Compensating Rack and Pinion |
| Suspension | Leaf Springs with Hydraulic Shock Absorbers |
| Tires | 18 x 8.5 - 8 (6 ply rated) |
| Towing Capacity | 900 lb (408 kg) |
| Transaxle | Differential with Helical Gears |
| Vehicle Load Capacity | 800 lb (360 kg) |
| Wheel Base | 65.5 in (166 cm) |
| Wheel Track | 37.0 in (94 cm) Front / 38.0 in (97 cm) Rear |
- 325-lb Bed Load Capacity
- 400-lb Bed Load Capacity
- 5-Year Battery Warranty
- 56V AC Lithium
- 725-lb Vehicle Load Capacity
- 8.4-cu-ft Cargo Bed
- 800-lb Vehicle Load Capacity
- Cost Saving Efficiency
- Lightweight Footprint
- Zero Maintenance Batteries
| Hauler 800 ELiTE Series Sell Sheet | View Link |
|---|
| Hauler 800 ELiTE | Hauler 800X ELiTE | |
|---|---|---|
| Overall Height | 47 in (120 cm) | 51 in (130 cm) |
| Ground Clearance | 4.3 in (11 cm) | 5.5 in (14 cm) |
| Curb Weight | 803 lb (364 kg) | 797 lb (361 kg) |
| Vehicle Load Capacity | 800 lb (360 kg) | 725 lb (328 kg) |
| Bed Load Capacity | 400 lb (181 kg) | 325 lb (147.4 kg) |
| Towing Capacity | 900 lb (408 kg) | 500 lb (230 kg) |
| Speed | 14.5 +/-0.5 mph (23.3 +/- 0.8 kph) | 16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph) |
| Steering | Self-Compensating Rack and Pinion | Self-Compensating Rack and Pinion |
