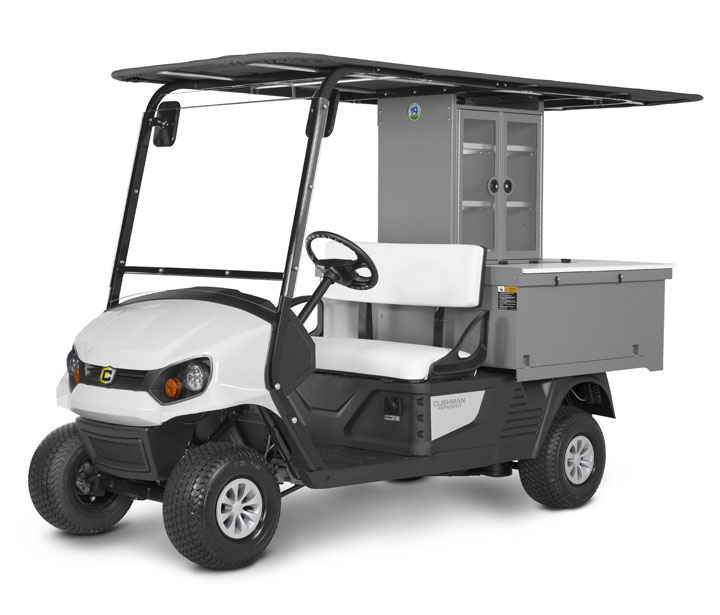

Cushman Refresher® Oasis
Golf & ProTurf
Overview
The Refresher Oasis was built for long days and busy events. With its industry-leading can capacity and enough merchandising space for your most popular items, stopping to restock is yesterday’s problem. Now available in a 72-Volt AC electric drivetrain or a 13.5hp EFI gas engine.
Cushman equipment only available at our Concord, CA location.
| Air Cleaner | Industrial Rated Dry Filter |
|---|---|
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Battery Charger | - |
| Body & Finish | Injection Molded TPO, Painted |
| Cargo Deck Capacity | 6.7 cu ft (.19 m3) Merchandising 500 Can Beverage Capacity |
| Cargo Deck Material | 5000 Series Aluminum - Super Durable TGIC Polyester Powder Coating |
| Cooling System | Air Cooled |
| Curb Weight | 1175 lb (532.971 kg) |
| Drive Train | Continuously Variable Transmission (CVT) |
| Electrical System | Starter/Generator, Solid State Regulator |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Fuel Capacity | 6.65 Gallon (25.2 L) Tank |
| Gear Selection | Forward-Reverse |
| Ground Clearance | 3.5 in (9.0 cm) |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Key or Pedal Start | Pedal |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Outside Clearance Circle | 21.5 ft (6.5 m) |
| Overall Height | 47.4 in (120.40 cm) (No Canopy) 73.3 in (1866 cm) (Canopy) |
| Overall Length | 117.0 in (297.18 cm) |
| Overall Width | 50.8 in (129.032 cm) |
| Parking Brake | Self-Compensating Single Point Engagement |
| Power Source | 4 cycle, 24.5 cu in (401 cc) |
| Rear Axle Ratio | 16.53:1 (Forward) 16.81:1 (Reverse) |
| Seating Capacity | 2 Person |
| Service Brake | Rear Wheel Mechanical Self-Adjusting Drum |
| Speed | 11 mph ± 0.5 mph (17.7 kph ± 0.8 kph) |
| Standard Color | Forest Green |
| Steering | Self-compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Tires | 18 x 8.5 – 8 |
| Transaxle | Differential with Helical Gears |
| Valve Train | Single Cylinder OHV |
| Vehicle Load Capacity | 1066 lb (483 kg) |
| Weight w/o Batteries | 1135 lb (514.83 kg) |
| Wheel Base | 76.0 in (193.04 cm) |
| Wheel Track | 35.0 in (89 cm) Front 38.5 in (98 cm) Rear |
- 12.1-sq-ft Work Space
- 13.5-hp EFI Gas Engine
- 3.4-cu-ft Trash Capacity
- 4 Cold Storage Drawers
- 50-mile range on a single charge
- 500-Can Capacity
- 6.7-cu-ft of Merchandising
- 72-Volt AC Electric
| Refresher Oasis EFI Gas | Refresher Oasis 72-Volt | |
|---|---|---|
| Body & Finish | Injection Molded TPO, Painted | Injection Molded TPO, Painted |
| Overall Length | 117.0 in (297.18 cm) | 117.0 in (297.18 cm) |
| Overall Height | 47.4 in (120.40 cm) (No Canopy) 73.3 in (1866 cm) (Canopy) | 47.4 (120.40 cm) (No Canopy) 76.0in (186.18 cm) (Canopy) |
| Power Source | 4 cycle, 24.5 cu in (401 cc) | 72-Volts |
| Valve Train | Single Cylinder OHV | – |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 22.4HP (16.7 kW) – Measured at Peark Torque |
| Electrical System | Starter/Generator, Solid State Regulator | 72 Volt |
| Battery (Qty/Type) | One, 12V Maintenance Free | Nine 8-Volt Deep Cycle |
| Battery Charger | – | 900 Watt 72V DC |
| Air Cleaner | Industrial Rated Dry Filter | – |
| Lubrication | Pressurized Oil System | – |
| Oil Filter | Spin-On | – |
| Cooling System | Air Cooled | Motor Shaft Direct Drive |
| Fuel Capacity | 6.65 Gallon (25.2 L) Tank | – |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward-Reverse | Forward-Neutral-Reverse |
| Rear Axle Ratio | 16.53:1 (Forward) 16.81:1 (Reverse) | 17:1 |
| Weight w/o Batteries | 1135 lb (514.83 kg) | 1105 lb (501.22kg) |
| Curb Weight | 1175 lb (532.971 kg) | 1670 lb (757.50 kg) |
| Speed | 11 mph ± 0.5 mph (17.7 kph ± 0.8 kph) | 11 mph ± 0.5 mph (17.7 kph ± 0.8 kph) Forward 10 mph ± 0.5 mph (16 kph ± 0.8 kph) Reverse |
