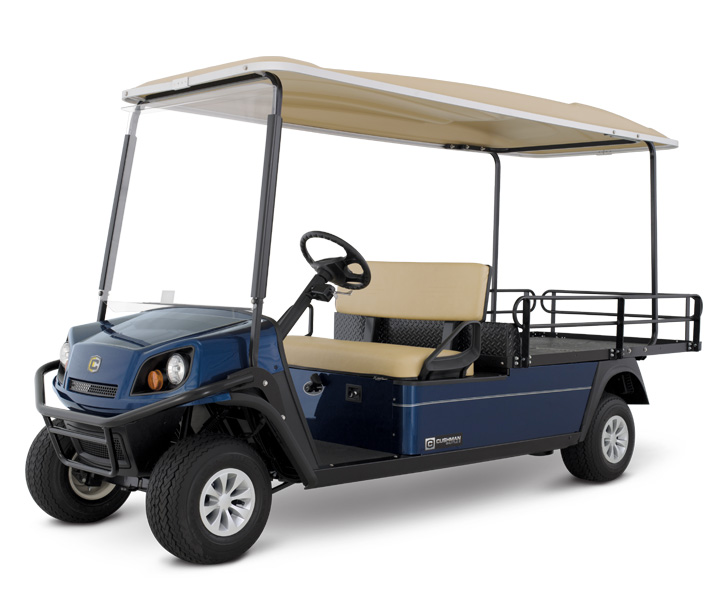

Cushman Shuttle 2
Electric Industrial Vehicles
Overview
This vehicle was built for big hauling and big possibilities with a 20.9-sq-ft cargo deck. Whether you’re hauling tools and supplies or luggage and catering, the Shuttle™ 2 personnel transport vehicle makes sure that you’re driven to get it done right.
Cushman equipment only available at our Concord, CA location.
| Air Cleaner | Replaceable Dry Cartridge |
|---|---|
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Battery Charger | - |
| Body & Finish | Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) |
| Cargo Deck Capacity | 20.9-sq-ft (1.94 m2) |
| Cooling System | Air Cooled |
| Drive Train | Continuously Variable Transmission (CVT) |
| Electrical System | Starter/Generator. Solid State Regulator |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Fuel Capacity | 6 Gallon (22.7 L) Tank |
| Gear Selection | Forward - Reverse |
| Ground Clearance | 4.75 in (12 cm) |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Key or Pedal Start | Pedal |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Overall Height | 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) |
| Overall Length | 141.0 in (358 cm) |
| Overall Width | 48.5 in (123 cm) |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Power Source | 4-Cycle, 24.5 ci (401cc) |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) |
| Seating Capacity | 2-Person |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Speed | 14 mph +/- 0.5 mph (22.5 kph +/-0.8 kph) |
| Standard Color | Patriot Blue |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Tires | 18 x 8.5 - 8 (4 Ply Rated) |
| Transaxle | Differential w/ Helical Gears |
| Valve Train | Single Cylinder OHV |
| Vehicle Load Capacity | 1200 lb (544 kg) |
| Weight w/o Batteries | 926 lb (420 kg) |
| Wheel Base | 93.5 in (237 cm) |
| Wheel Track | 34.2 in (87 cm) Front 38.0 in (97 cm) Rear |
- 1,000-lb Vehicle Load Capacity
- 1,200-lb Vehicle Load Capacity
- 13.5-hp EFI Gas Engine
- 2-Passenger Seating
- 20.9-sq-ft Cargo Deck
- 48V Electric Drivetrain
| Shuttle 2 EFI Gas | Shuttle 2 Electric | |
|---|---|---|
| Ground Clearance | 4.75 in (12 cm) | 4.3 in (11 cm) |
| Power Source | 4-Cycle, 24.5 ci (401cc) | 48V DC |
| Valve Train | Single Cylinder OHV | – |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 18.1 hp (13.5 kW) @ 1900 rpm |
| Electrical System | Starter/Generator. Solid State Regulator | 48V |
| Battery (Qty/Type) | One, 12V Maintenance Free | Eight, 6V Deep Cycle |
| Battery Charger | – | 48 V, 120V AC, UL/CSA |
| Air Cleaner | Replaceable Dry Cartridge | – |
| Lubrication | Pressurized Oil System | – |
| Oil Filter | Spin-On | – |
| Cooling System | Air Cooled | – |
| Fuel Capacity | 6 Gallon (22.7 L) Tank | – |
| Speed Controller | – | 400 Amp Precision Drive System (PDS) |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward – Reverse | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) | 14.7:1 |
| Weight w/o Batteries | 926 lb (420 kg) | 810 lb (367 kg) |
| Curb Weight | – | 1300 lb (590 kg) |
| Vehicle Load Capacity | 1200 lb (544 kg) | 1000 lb (454 kg) |
| Outside Clearance Circle | – | 25.5 ft (7.8 m) |
| Speed | 14 mph +/- 0.5 mph (22.5 kph +/-0.8 kph) | 13 mph +/- 0.5 mph (21 kph +/-0.8 kph) |
