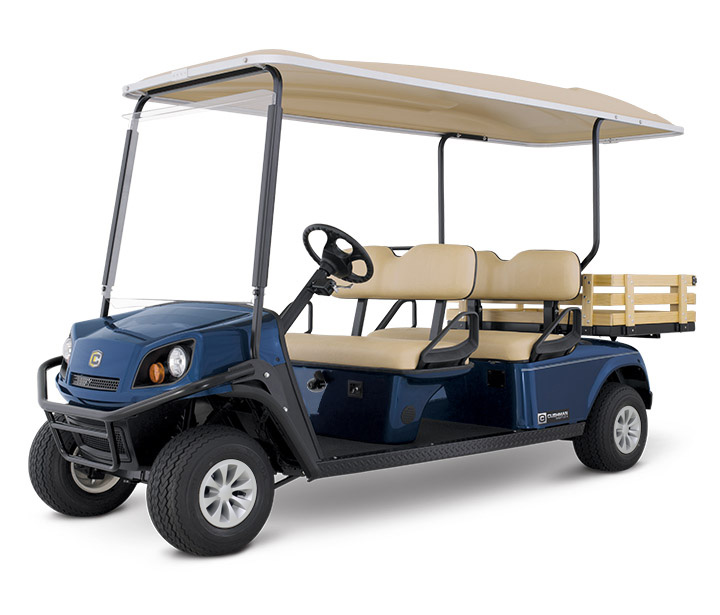

Cushman Shuttle 4
Electric Industrial Vehicles
Overview
Throw your bags and supplies in the back and let’s get moving. The Shuttle™ 4 offers extra space for luggage, gear and more, so you can help workers, guests and volunteers get all their stuff wherever it needs to go quickly.
Cushman equipment only available at our Concord, CA location.
| Air Cleaner | Replaceable Dry Cartridge |
|---|---|
| Battery (Qty/Type) | One, 12V Maintenance Free |
| Battery Charger | - |
| Bed Load Capacity | 400 lb (181 kg) |
| Body & Finish | Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) |
| Cargo Deck Capacity | 9-cu-ft (0.25 m3) |
| Cargo Deck Material | Wood Stake Sides |
| Cooling System | Air Cooled |
| Curb Weight | 936 lb (425 kg) |
| Drive Train | Continuously Variable Transmission (CVT) |
| Electrical System | Starter/Generator. Solid State Reg. |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Fuel Capacity | 6 Gallon (22.7 L) Tank |
| Gear Selection | Forward - Reverse |
| Ground Clearance | 4.3 in (11 cm) |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Key or Pedal Start | Pedal |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Overall Height | 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) |
| Overall Length | 135.0 in (343 cm) |
| Overall Width | 48.5 in (123 cm) |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Power Source | 4-Cycle, 24.5 ci (401cc) |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) |
| Seating Capacity | 4-Person |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Speed | 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) |
| Standard Color | Patriot Blue |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Tires | 18 x 8.5 - 8 (4 Ply Rated) |
| Transaxle | Differential w/ Helical Gears |
| Valve Train | Single Cylinder OHV |
| Vehicle Load Capacity | 1200 lb (544 kg) |
| Wheel Base | 93.5 in (237 cm) |
| Wheel Track | 34.2 in (87 cm) Front 38.0 in (97 cm) Rear |
- 1,200-lb Vehicle Load Capacity
- 13.5-hp EFI Gas Engine
- 4-Passenger Seating
- 72V Electric Drivetrain
- 9-cu-ft Cargo Deck
| Shuttle 4 EFI Gas | Shuttle 4 Electric | |
|---|---|---|
| Body & Finish | Injection Molded TPO (Front) Steel Base Coat/Clear Coat (Rear) | Injection Molded TPO |
| Standard Color | Patriot Blue | Ivory |
| Overall Length | 135.0 in (343 cm) | 133.5 in (339 cm) |
| Overall Width | 48.5 in (123 cm) | 46.5 in (119 cm) |
| Power Source | 4-Cycle, 24.5 ci (401cc) | 72V DC |
| Valve Train | Single Cylinder OHV | – |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 22.4 hp (16.7 kW) Intermittent |
| Electrical System | Starter/Generator. Solid State Reg. | 72V |
| Battery (Qty/Type) | One, 12V Maintenance Free | Six, 12V Deep Cycle |
| Battery Charger | – | 1000 Watt, 72V, 120/230V VAC UL Listed |
| Air Cleaner | Replaceable Dry Cartridge | – |
| Lubrication | Pressurized Oil System | – |
| Oil Filter | Spin-On | – |
| Cooling System | Air Cooled | – |
| Fuel Capacity | 6 Gallon (22.7 L) Tank | – |
| Speed Controller | – | 350 Amp AC |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward – Reverse | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) | 17:1 |
| Weight w/o Batteries | – | 926 lb (420 kg) |
| Curb Weight | 936 lb (425 kg) | 1418 lb (643 kg) |
| Outside Clearance Circle | – | 25.5 ft (7.8 m) |
| Speed | 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) | High Speed 16.5 mph ± 0.5 mph (26.4 kph ± 0.8 kph), Low Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) |
| Tires | 18 x 8.5 – 8 (4 Ply Rated) | 18 x 8.50 – 8 (4 Ply Rated) |
