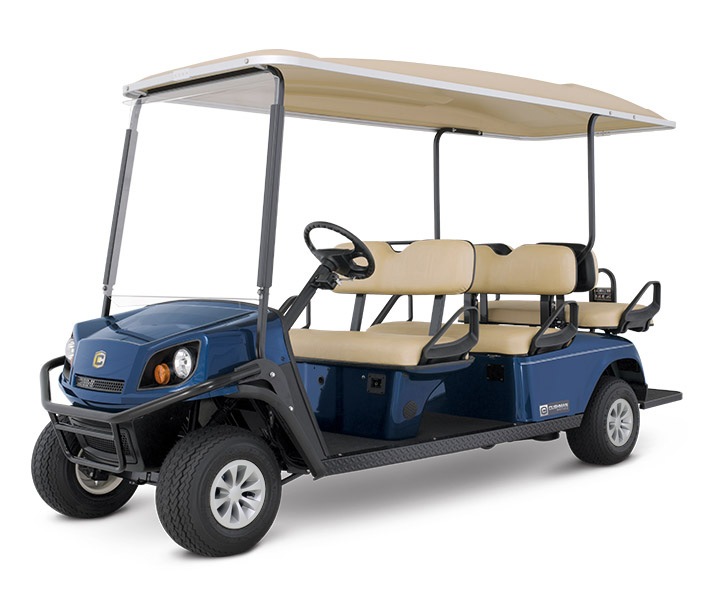

Cushman Shuttle 6
Electric Industrial Vehicles
Overview
Take your people-moving power to the next level with the six-passenger Shuttle™ 6 personnel carrier. With spacious bench seating, headlights for early morning or late nights, and your choice of gas or electric powertrains, it always delivers a safe and comfortable ride.
Cushman equipment only available at our Concord, CA location.
| Air Cleaner | Replaceable Dry Cartridge |
|---|---|
| Battery Charger | One, 12V Maintenance Free |
| Body & Finish | Injection Molded TPO |
| Cooling System | Air Cooled |
| Curb Weight | 1164 lb (528 kg) |
| Drive Train | Continuously Variable Transmission (CVT) |
| Electrical System | Starter/Generator. Solid State Reg. |
| Frame | Welded Steel w/ DuraShield™ Powder Coat |
| Fuel Capacity | 6 Gallon (22.7 L) Tank |
| Gear Selection | Forward - Reverse |
| Ground Clearance | 4.3 in (11 cm) |
| Horsepower (KW) | 13.5 hp (10.1 kW) |
| Key or Pedal Start | Pedal |
| Lubrication | Pressurized Oil System |
| Oil Filter | Spin-On |
| Outside Clearance Circle | 25.5 ft (7.8 m) |
| Overall Height | 48.6 in (123 cm) (w/o Roof) 72.0 in (183 cm) (w/ Struts & Roof) |
| Overall Length | 136.0 in (345 cm) |
| Overall Width | 48.5 in (123 cm) |
| Parking Brake | Self-Compensating, Single-Point Engagement |
| Power Source | 4-Cycle, 24.5 ci (401cc) |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) |
| Seating Capacity | 6-Person |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum |
| Speed Controller | - |
| Speed | 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) |
| Standard Color | Patriot Blue |
| Steering | Self-Compensating Rack & Pinion |
| Suspension | Leaf Springs w/ Hydraulic Shock Absorbers (Front) Leaf Springs w/ Hydraulic Shock Absorbers (Rear) |
| Tires | 18 x 8.5 - 8 (4 Ply Rated) |
| Transaxle | Differential w/ Helical Gears |
| Valve Train | Single Cylinder OHV |
| Vehicle Load Capacity | 1200 lb (544 kg) |
| Wheel Base | 93.5 in (237 cm) |
| Wheel Track | 34.2 in (87 cm) Front 38.0 in (97 cm) Rear |
- 1,200-lb Vehicle Load Capacity
- 13.5-hp EFI Gas Engine
- 6-Passenger Seating
- 72V Electric Drivetrain
| Shuttle 6 EFI Gas | Shuttle 6 Electric | |
|---|---|---|
| Standard Color | Patriot Blue | Ivory |
| Power Source | 4-Cycle, 24.5 ci (401cc) | 72V DC |
| Valve Train | Single Cylinder OHV | 22.4 hp (16.7 kW) Intermittent |
| Horsepower (KW) | 13.5 hp (10.1 kW) | 72V |
| Electrical System | Starter/Generator. Solid State Reg. | Six, 12V Deep Cycle |
| Battery Charger | One, 12V Maintenance Free | 1000 Watt, 72V, 120/230V VAC UL Listed |
| Air Cleaner | Replaceable Dry Cartridge | – |
| Lubrication | Pressurized Oil System | – |
| Oil Filter | Spin-On | – |
| Cooling System | Air Cooled | – |
| Fuel Capacity | 6 Gallon (22.7 L) Tank | – |
| Speed Controller | – | 350 Amp AC |
| Drive Train | Continuously Variable Transmission (CVT) | Motor Shaft Direct Drive |
| Gear Selection | Forward – Reverse | Dash-Mounted Forward-Neutral-Reverse |
| Rear Axle Ratio | 11.47:1 (Forward) 14.35:1 (Reverse) | 17:1 |
| Weight w/o Batteries | – | 964 lb (437 kg) |
| Curb Weight | 1164 lb (528 kg) | 1456 lb (660 kg) |
| Speed | 14 mph ± 0.5 mph (22.5 kph ± 0.8 kph) | High Speed 16.5 mph ± 0.5 mph (26.4 kph ± 0.8 kph), Low Speed 12 mph ± 0.5 mph (19.3 kph ± 0.8 kph) |
| Service Brake | Rear Wheel Mechanical, Self-Adjusting Drum | Rear wheel mechanical self-adjusting drum, Regenerative braking |
| Tires | 18 x 8.5 – 8 (4 Ply Rated) | 18 x 8.50 – 8 (4 Ply Rated) |
