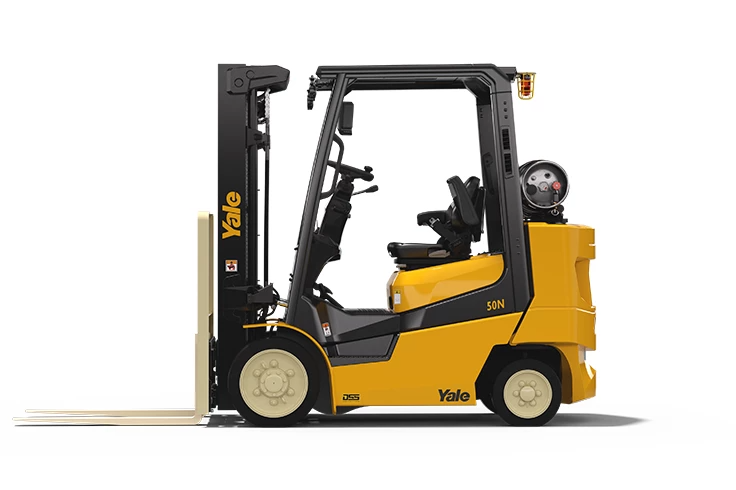

Yale GC40-70N
Forklifts
Built on a scalable platform, the Yale Series N can be easily configured to match your unique requirements. With a 4,000â7,000 lb. capacity range, the GC40-70N will raise the bar for what you expect from a lift truck in a wide range of applications and environments.
- Convenient entry and exit – A large, strategically located step, large grab handle, contoured hood and flip up armrests help make it easy for the operator to get in and out of the truck.
- Dependable high performance technology - Engineered with a reliable, aluminum transmission and robust steer axle with tapered roller bearings to help minimize downtime and simplify service.
- Dynamic Stability System (DSS) - An innovative, maintenance-free system, standard on all Series N trucks that promotes operating best practices by implementing truck performance limitations to help minimize forward and sideways tip-overs.
- Excellent visibility – A low dash and wide mast window provide excellent visibility through the mast, enhanced visibility of fork tips and load when picking at height, and excellent visibility when traveling forward.
- Heavy-duty industrial Yanmar engine - Utilizes a heavy-duty EPA-certified Yanmar 2.2L LPG engine designed with extended preventive maintenance service intervals for continuous, heavy use.
- Operator Assistance Systems (OAS) - A suite of options designed to support the behavior and awareness of both operators and pedestrians to promote safe practices and help prevent facility and product damage.
- Spacious operator compartment – Roomy operator compartment with ample floor space and a wide range of seat adjustment helps the operator to find a comfortable position, stretch their legs, and stay comfortable for long shifts.
| Model | Load Capacity | Load Center | Lift Height | Turning Radius | Overall Width | Engine Type | Transmission |
|---|---|---|---|---|---|---|---|
| GC40N | 4000lbs | 24in | 318 | 78.9 | 42.1 | Yanmar 2.2L LPG | Electric powershift |
| GC50N | 5000lbs | 24in | 318 | 80.9 | 42.1 | Yanmar 2.2L LPG | Electric powershift |
| GC55NS | 5500lbs | 24in | 318 | 76.3 | 44.1 | Yanmar 2.2L LPG | Electric powershift |
| GC60N | 6000lbs | 24in | 276 | 84.1 | 44.1 | Yanmar 2.2L LPG | Electric powershift |
| GC70N | 7000lbs | 24in | 276 | 86.2 | 46.2 | Yanmar 2.2L LPG | Electric powershift |
