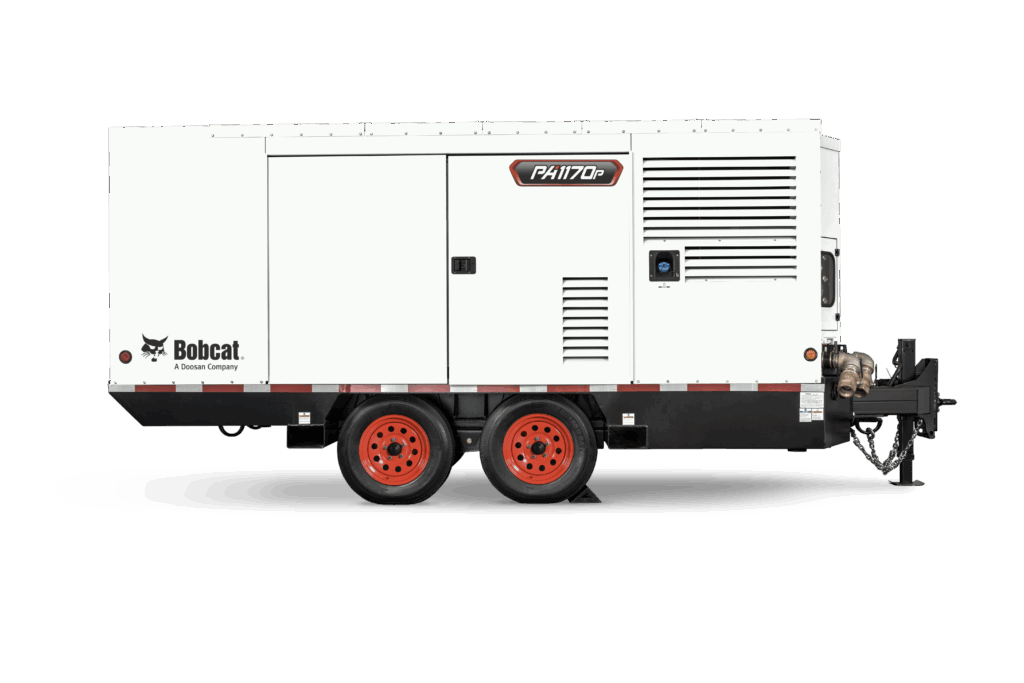

BOBCAT PA1170P Portable Air Compressor
Portable Power Equipment
Powered by the CAT C13B engine, the Bobcat PA1170P portable compressor delivers high-powered efficiency with best-in-class serviceability.
- Delivers 1,170 cfm at up to 365 psi
- Ideal for foundation drilling, mining, or oil and gas applications
- Large doors offer easy access for jobsite maintenance
- Available IQ System® option for clean air needs
| # of Cylinders | 6 |
|---|---|
| Air Discharge Outlet Quantity | 1 |
| Air Discharge Outlet Size (inches NPT/mm) | 3.0 / 76.2 |
| Altitude Capability (Feet/Meters) | 15,000 / 4572 |
| BHP @ Rated Speed - (kW) | 536 (400) |
| Displacement - cu in (L) | 763 (12.5) |
| Electrical | 24 V |
| Engine Oil Capacity US Quarts/Liters | 12 / 45.4 |
| Free-Air Delivery - cfm (m3/min) | 1170 / 33.1 |
| Fuel Tank Capacity - gal (L) | 200 (757) |
| Idle Speed (rpm) | 1300 |
| Engine Make/Model | CAT/C13B |
| Oil Capacity (US Gal/Liters) LUBE OIL | 55 / 209 |
| Operating Time at Full Load - hr | 8 |
| Overall Height without Running Gear - in (mm) | 96.5 (2451) |
| Overall Height with Running Gear - in (mm) | 102 (2591) |
| Overall Length without Running Gear - in (mm) | 209 (5309) |
| Overall Length with Running Gear - in (mm) | 235 (5969) |
| Overall Width - in (mm) | 90.1 (2289) |
| Pressure Range (psig/bar) | 140-365 (9.7-25.1) |
| Radiator Coolant Capacity US Gal/Liters | 24.6 / 93 |
| Rated Operating Pressure - psig (bar) | 365 (25.1) |
| Rated Speed (rpm) | 1825 |
| Shipping Weight without Running Gear - lb (kg) | 16650 (7552) |
| Shipping Weight with Running Gear - lb (kg) | 17625 (7995) |
| Track Width - in (mm) | 71 (1803) |
| Working Weight without Running Gear - lb (kg) | 18050 (8187) |
| Working Weight with Running Gear - lb (kg) | 19025 (8630) |
| Equipment Brochure | View Link |
|---|
The Bobcat PA1170P delivers heavy-duty air power with adjustable pressure to fit your varied jobsite needs. Powered by the reliable CAT C13B engine, this newly redesigned towable compressor features a more compact design, an efficient airend with a wider pressure range, and best-in-class serviceability.
The PA1170P was engineered for maximum jobsite productivity with easy serviceability in mind. Large extra-wide doors and thoughtful placement of service items ensure minimal downtime during routine maintenance and on-the-job service.
The proprietary airend, custom designed for this machine, offers a highly efficient rotor profile that requires less horsepower to deliver the high-volume cfm output you need for big jobs. Yet the compact design makes it easy to maneuver around the jobsite with exceptional towability and cooling performance. It can also be mounted to a flatbed for easier transportation or long-term placement.
For specialized jobs requiring cleaner air, the PA1170P can be equipped with the patented IQ System, which adds an onboard aftercooler, a coalescing dual filtration system and an exclusive zero-discharge condensate removal system. These components work together to produce clean air that protects the tools downstream from contaminants, such as aerosol oil vapors and microscopic dust particles.
For heavy-duty jobs, rely on the Bobcat PA1170P to increase uptime and maximize your jobsite productivity.
