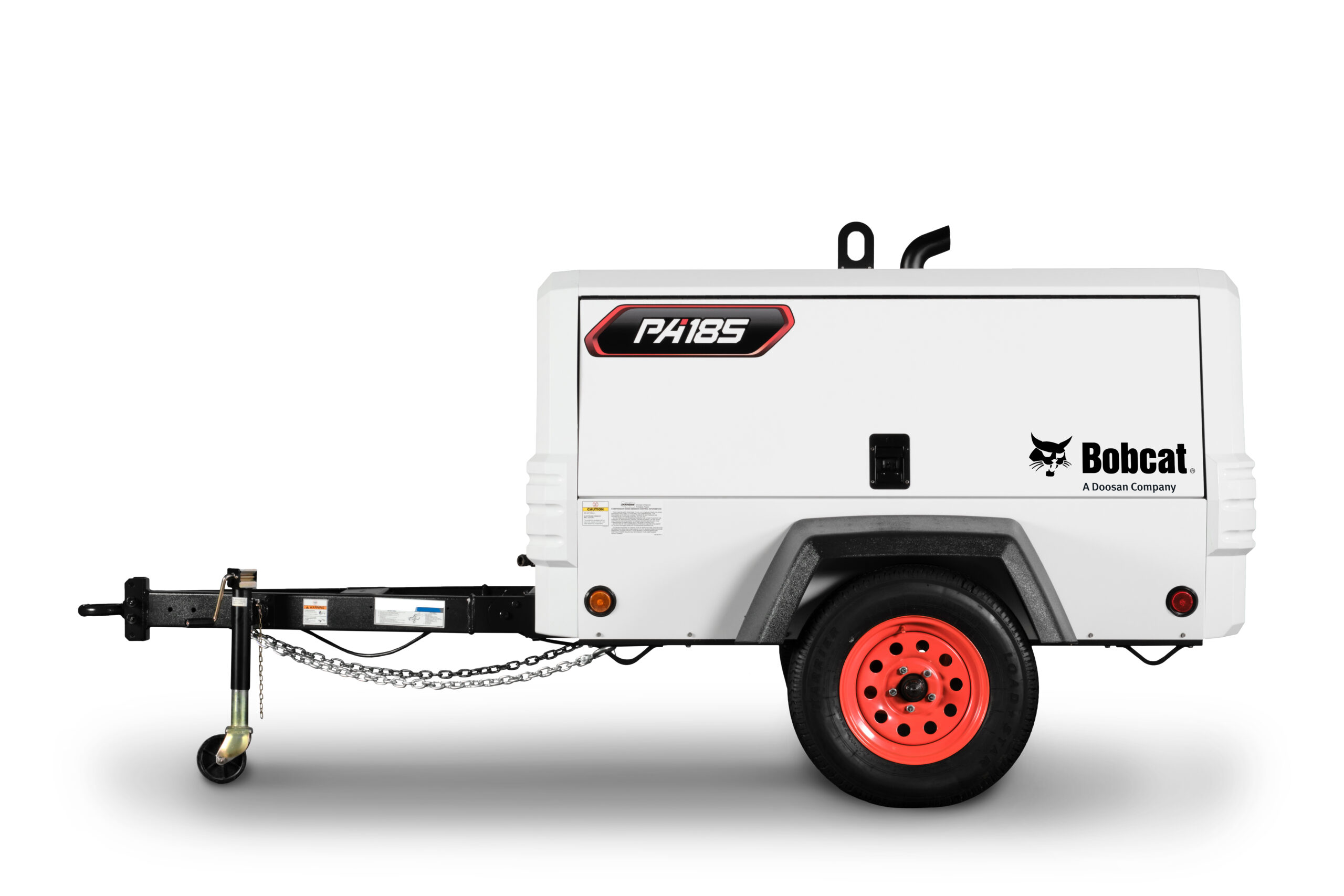

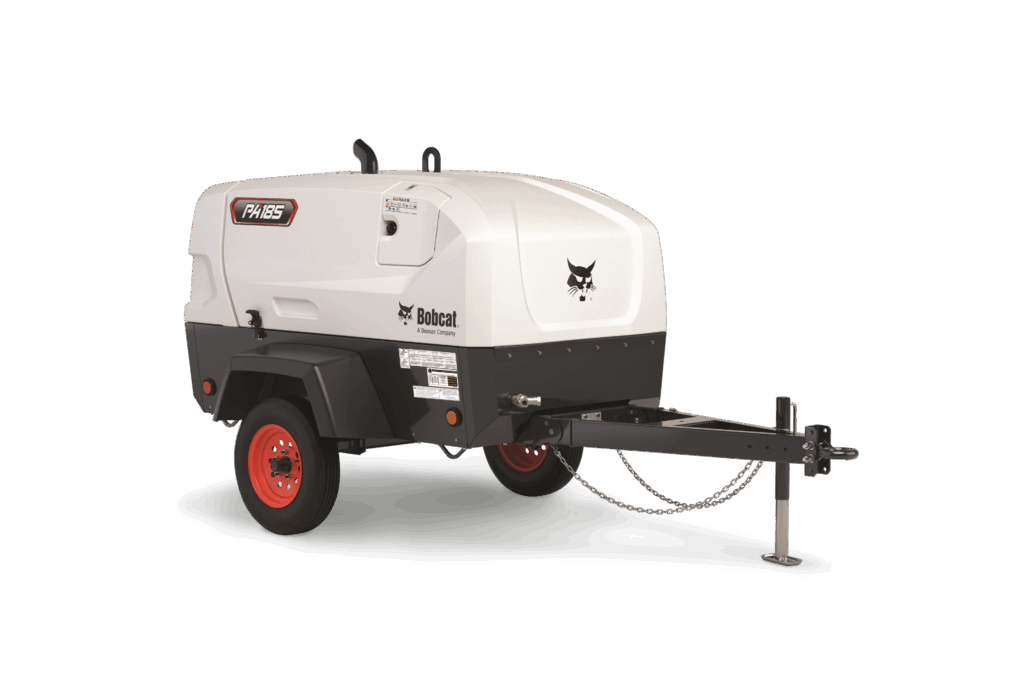

BOBCAT PA185WDO-T4F Portable Air Compressor
Air Compressors
The Bobcat PA185 portable air compressor is the perfect tow-behind compressor for any rental fleet operation, combining fuel efficiency, durability and convenient serviceability with its easy-lift canopy design.
| Air Discharge Outlet Quantity | 2 |
|---|---|
| Air Discharge Outlet Size | 0.8 in |
| Bhp @ Rated Speed (kW) | 49 (36.4) |
| Displacement - cu in (L) | 110 (1.8) |
| Electrical - volts | 12 |
| Emissions Tier Level | Tier 4 Final (T4F) |
| Free-Air Delivery - cfm (m3/min) | 185 (5.2) |
| Fuel Tank Capacity - gal (L) | 34.5 (130.6) |
| Height without Running Gear - in (mm) | 57.8 (1468) |
| Height with Running Gear - in (mm) | 67.5 (1714) |
| Hours of Operation @ Full Load | 12.6 |
| Idle Speed - rpm | 1700 |
| Length without Running Gear - in (mm) | 86.7 (2202) |
| Length with Running Gear - in (mm) | 137.4 (3490) |
| Limiting Ambient Temp F (Celsius) | 120 (48) |
| Make/Model | Doosan D18 |
| Number of Cylinders | 3 |
| Pressure Range - psig (bar) | 80-100 (5.5-6.9) |
| Rated Operating Pressure- psig (bar) | 100 (6.9) |
| Rated Speed - rpm | 2600 |
| Shipping Weight without Running Gear - lb (kg) | 1905 (864) |
| Shipping Weight with Running Gear - lb (kg) | 2120 (962) |
| Tire Size - in | 13 |
| Track Width - in (mm) | 60 (1524) |
| Width without Running Gear - in (mm) | 52.3 (1328) |
| Width with Running Gear - in (mm) | 68.5 (1740) |
| Working Weight without Running Gear | 2144 (973) |
| Working Weight with Running Gear | 2359 (1070) |
- Overview
- The Bobcat PA185 leads the portable air power industry in serviceability, durability, and convenience, making it one of the most popular rental fleet models on the market. With easy-to-use curbside controls, a 12-hour run-time and an impressive 8,700 cubic inch toolbox, the PA185 is a reliable workhorse on any jobsite. Its unique clamshell canopy design makes it easier than ever to perform routine maintenance, maximizing your uptime and productivity. Powered by a dependable 3-cylinder, fuel-efficient engine, the PA185 provides plenty of power for various applications, while saving you money at the pump. For reliable air power with U.S.-based customer support and local service options, hook on to the PA185 portable air compressor to get the job done.
