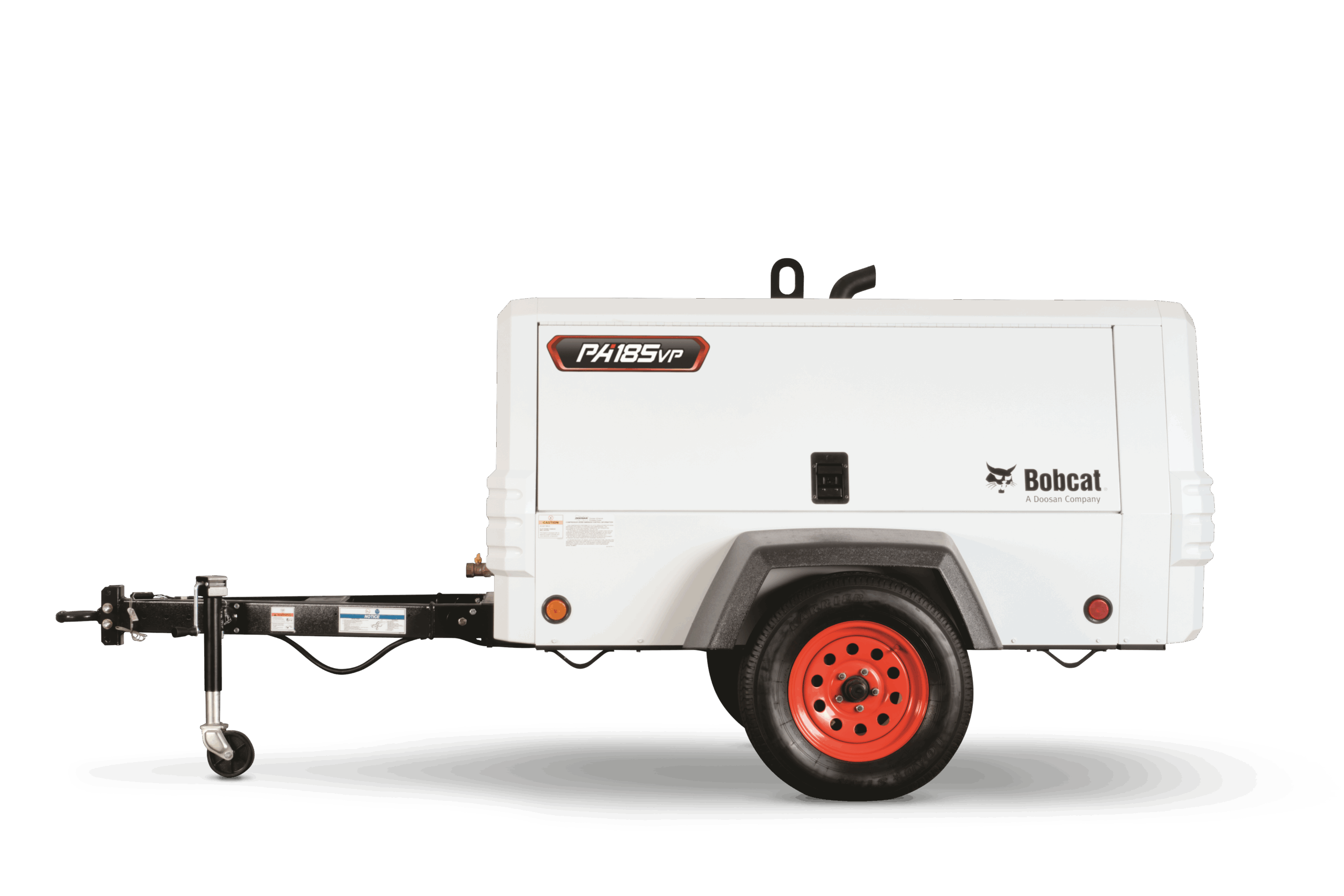

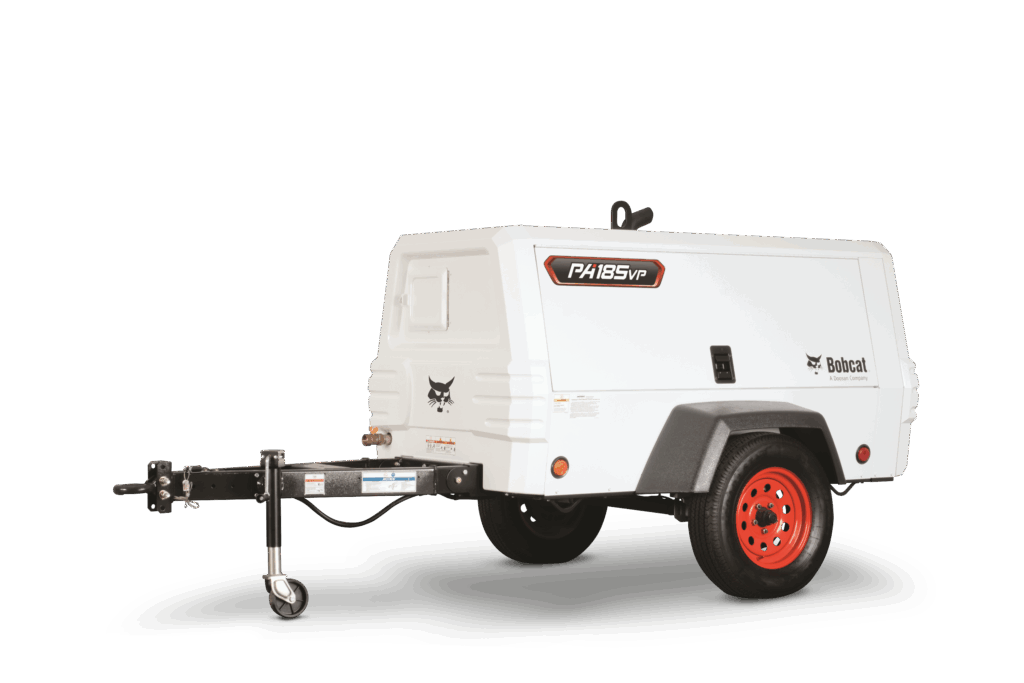

BOBCAT PA185VP Portable Air Compressor
Portable Power Equipment
The Bobcat PA185VP portable air compressor gives you high-powered versatility with the legendary FlexAir system, allowing you to easily adjust the pressure to dial in your air power needs.
- FlexAir system provides tool-free adjustable air power
- Optional 4 kW on-board generator with 120V duplex outlets
- Ideal for high power needs across various applications
- Hand-held air tools, sandblasting, sprinkler blowout, cable laying, fiber optic cable laying and pipeline testing
| Air Discharge Outlet Quantity | 2 |
|---|---|
| Air Discharge Outlet Size | 0.75 in |
| Bhp @ Rated Speed (kW) | 74 (55.2) |
| Displacement - cu in (L) | 147 (2.4) |
| Electrical - volts | 12 |
| Emissions Tier Level | Tier 4 Final (T4F) |
| Free-Air Delivery - cfm (m3/min) | 185 (5.2) |
| Fuel Tank Capacity - gal (L) | 34.5 (130.6) |
| Height without Running Gear - in (mm) | 56.3 (1430) |
| Height with Running Gear - in (mm) | 67.5 (1714) |
| Hours of Operation @ Full Load | 11 |
| Idle Speed - rpm | 1400 |
| Length without Running Gear - in (mm) | 94.6 (2403) |
| Length with Running Gear - in (mm) | 142.9 (3630) |
| Limiting Ambient Temp F (Celsius) | 120 (48) |
| Make/Model | Doosan D24 |
| Number of Cylinders | 4 |
| Pressure Range - psig (bar) | 80-200 (5.5-13.7) |
| Rated Operating Pressure- psig (bar) | 125 (8.6) |
| Rated Speed - rpm | 2550 |
| Shipping Weight without Running Gear - lb (kg) | 2143 (972) |
| Shipping Weight with Running Gear - lb (kg) | 2353 (1067) |
| Tire Size - in | 15 |
| Track Width - in (mm) | 60 (1524) |
| Width without Running Gear - in (mm) | 49.3 (1252) |
| Width with Running Gear - in (mm) | 68.5 (1740) |
| Working Weight without Running Gear | 2384 (1081) |
| Working Weight with Running Gear | 2594 (1177) |
| Equipment Brochure | View Link |
|---|
The Bobcat PA185VP portable air compressor was designed for ultimate jobsite flexibility to maximize your productivity.
With the FlexAir System, you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor’s operational range. The FlexAir System gives you ultimate versatility to power a variety of jobsite applications all with a single machine.
The control panel, hose connections, spacious 8,700-cubic-inch toolbox and optional 4 kW generator with 120V duplex outlets are all safely located on the curb side of the air compressor.
The premium control panel’s intuitive design ensures ease of use, and the spin-on separator element makes for quick and easy maintenance without having to enter the separator tank itself.
The PA185VP comes with a trusted track record, U.S.-based customer support and local service options for maximum uptime. Expand your jobsite opportunities by increasing your productivity with the ultra-versatile and high-powered PA185VP portable air compressor.
