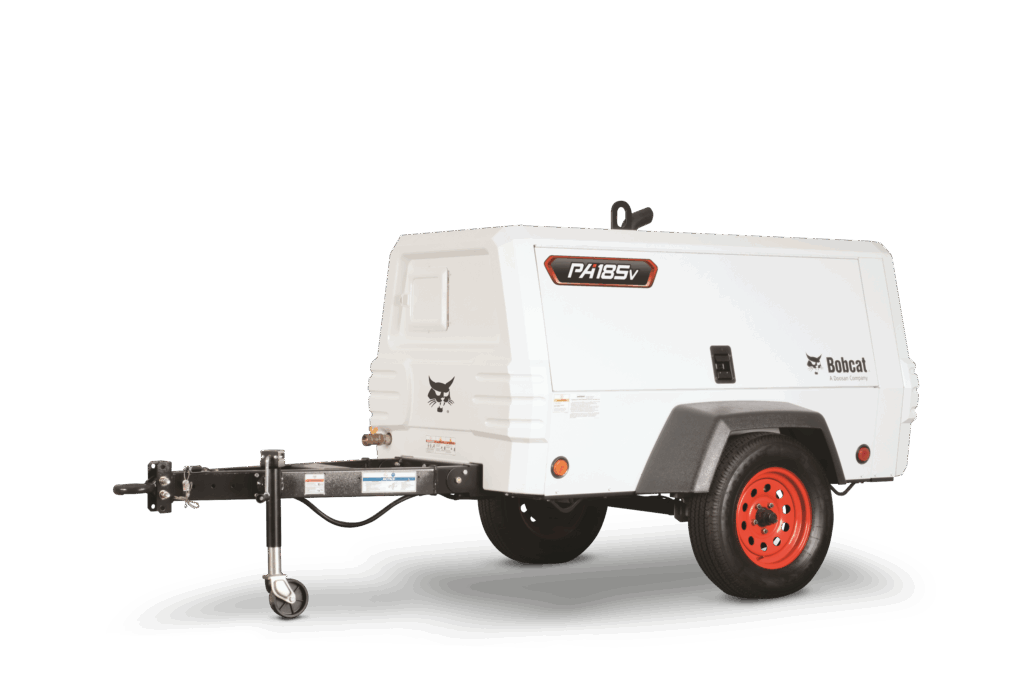

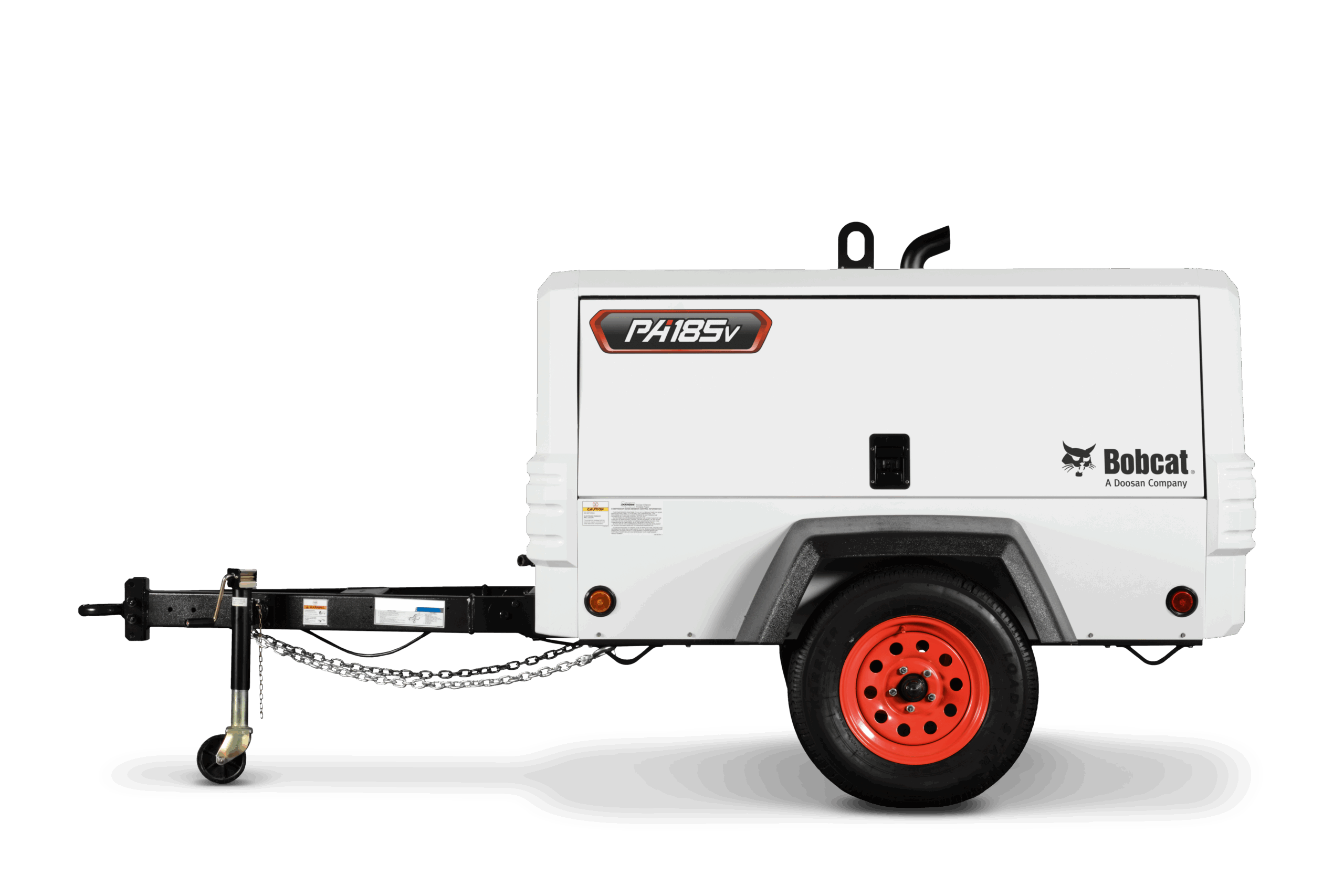

BOBCAT PA185VWDO-T4F Portable Air Compressor
Air Compressors
The Bobcat PA185V portable air compressor gives you ultimate versatility at the jobsite thanks to the legendary FlexAir system, allowing you to easily adjust the flow rate from the curbside control panel to dial in your air power needs.
- FlexAir system provides tool-free adjustable air power
- Just one button to adjust flow and pressure settings
- Suitable for hand-held air tools, sandblasting, sprinkler blowout, cable laying, pipeline testing and much more
| Air Discharge Outlet Quantity | 2 |
|---|---|
| Air Discharge Outlet Size | 0.8 in |
| Bhp @ Rated Speed (kW) | 49 (36.4) |
| Displacement - cu in (L) | 147 (2.4) |
| Electrical - volts | 12 |
| Emissions Tier Level | Tier 4 Final (T4F) |
| Free-Air Delivery - cfm (m3/min) | 185 (5.2) |
| Fuel Tank Capacity - gal (L) | 34.5 (130.6) |
| Height without Running Gear - in (mm) | 56.3 (1431) |
| Height with Running Gear - in (mm) | 67.5 (1714) |
| Hours of Operation @ Full Load | 12.2 |
| Idle Speed - rpm | 1400 |
| Length without Running Gear - in (mm) | 88.5 (2248) |
| Length with Running Gear - in (mm) | 137.4 (3490) |
| Limiting Ambient Temp F (Celsius) | 120 (48) |
| Make/Model | Doosan D24 |
| Number of Cylinders | 4 |
| Pressure Range - psig (bar) | 80-150 (5.5-10.3) |
| Rated Operating Pressure- psig (bar) | 100 (6.9) |
| Rated Speed - rpm | 2600 |
| Shipping Weight without Running Gear - lb (kg) | 2059 (934) |
| Shipping Weight with Running Gear - lb (kg) | 2269 (1029) |
| Tire Size - in | 15 |
| Track Width - in (mm) | 60 (1524) |
| Width without Running Gear - in (mm) | 49.3 (1252) |
| Width with Running Gear - in (mm) | 68.5 (1740) |
| Working Weight without Running Gear - lb (kg) | 2267 (1029) |
| Working Weight with Running Gear - lb (kg) | 2477 (1123) |
- Overview
- The Bobcat PA185V towable air compressor, featuring FlexAir technology, is a versatile and reliable machine that gives you a range of air power to meet your varying jobsite needs. With the FlexAir System, you maintain complete control of both air pressure and airflow. From the control panel, you can dial in the exact combination of pressure and flow within the compressor’s operational range. The FlexAir System gives you ultimate versatility to power a variety of jobsite applications, all with a single machine. From hand-held air tools and sandblasting to irrigation blowouts and pipeline testing, the FlexAir System allows you to adjust the pressure from 100-150 psi right at the curbside control panel (with just one button). Powered by a Doosan D24 diesel engine, refined with expert engineering, the PA185V comes with a trusted track record, U.S.-based customer support and local service options for maximum uptime.
| Equipment Brochure | View Link |
|---|
