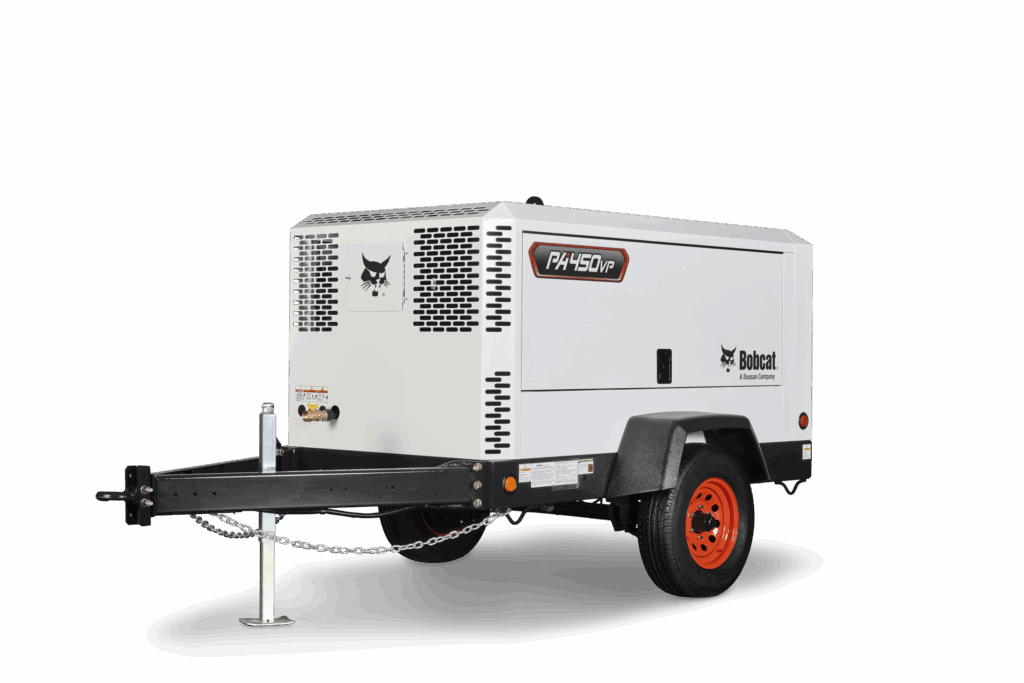

BOBCAT PA450VP Portable Air Compressor
Air Compressors
The Bobcat PA450VP dual pressure portable air compressor delivers versatile air power in a compact, easy-to-maneuver footprint.
- Two-in-one performance with programmable HI/LO pressure options
- 400 to 450 cfm at 150 to 200 psi
- Compact design with large access doors for easy serviceability

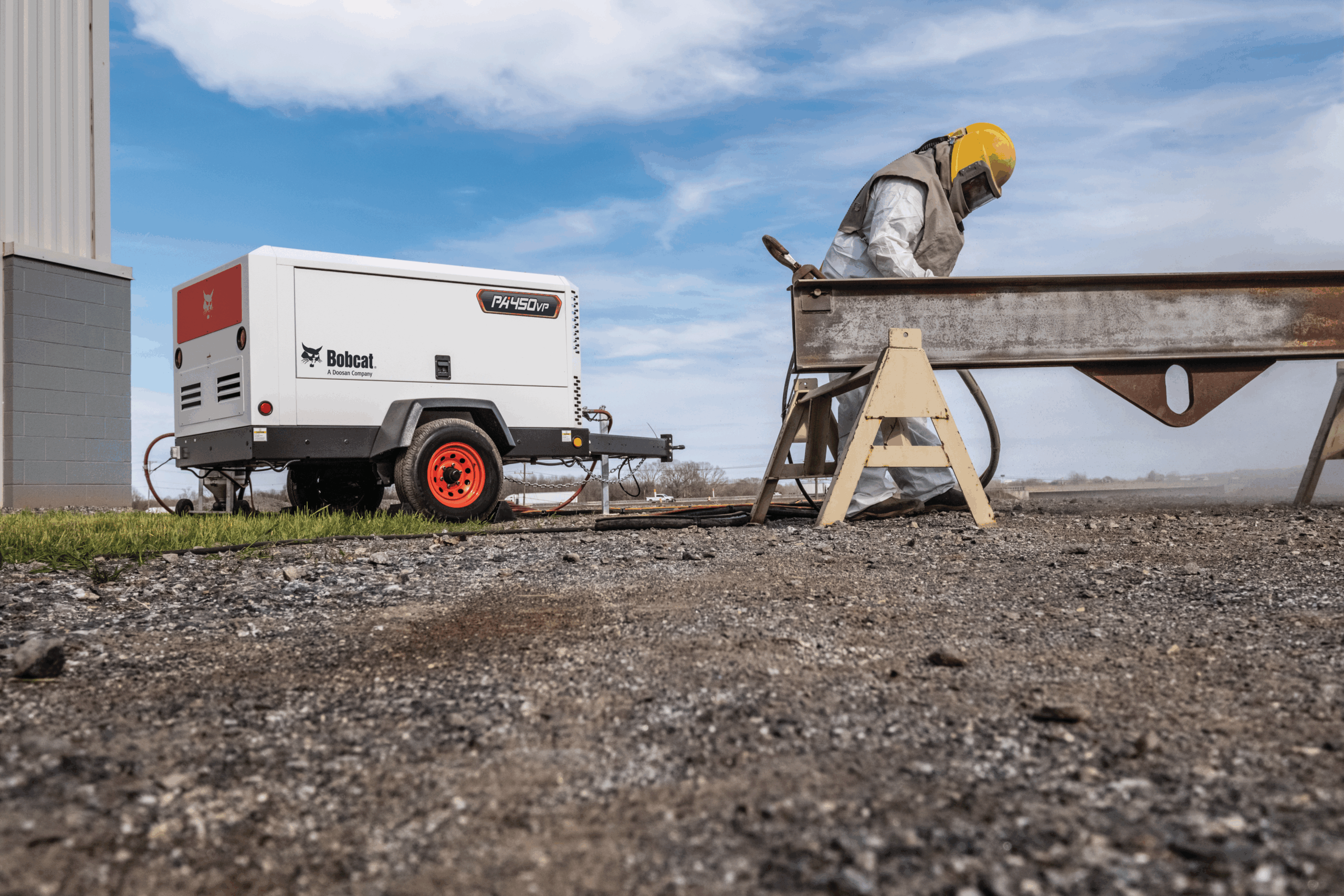

- Ideal for construction, abrasive blasting and fiber optic cable installation
| Air Discharge outlet Quantity | 1 |
|---|---|
| Air Discharge outlet size - in (mm) | 1.25 (31.75) |
| Bhp @ rated speed (kW) | 173 (129) |
| DEF Tank Capacity - gal (L) | 5 (19) |
| Displacement - cu in (L) | 14.1 (3.8) |
| Electrical | 24 |
| Emissions Tier Level | Tier 4 Final (T4F) |
| Free-Air Delivery - cfm (m³/min) | 450 (12.7) |
| Fuel Tank Capacity - gal (L) | 60 (227) |
| Height without Running Gear - in (mm) | 61 (1549) |
| Height with Running Gear - in (mm) | 73.3 (1862) |
| Hours of operation @ Full Load | 8,5 |
| Idle speed - rpm | 1500 |
| Length without Running Gear - in (mm) | 107 (2718) |
| Length with Running Gear - in (mm) | 154.2 (3917) |
| Engine Make/Model | Cummins/F3.8L |
| Number of Cylinders | 4 |
| Pressure range - psig (bar) | 80-225 (5.5-15.5) |
| Rated operating Pressure - psig (bar) | 150 (10.3) / 200 (13.8) |
| Rated speed - rpm | 2500 (low flow) / 2250 (high flow) |
| Shipping Weight without Running Gear - lb (kg) | 4071 (1847) |
| Shipping Weight with Running Gear - lb (kg) | 4334 (1966) |
| Tire size - in | 15 |
| Track Width - in (mm) | 66.6 (1692) |
| Width without Running Gear - in (mm) | 60.7 (1542) |
| Width with Running Gear - in (mm) | 78.2 (1986) |
| Working Weight with Running Gear - lb (kg) | 4513 (2047) |
| Working Weight with Running Gear - lb (kg) | 4776 (2166) |
| Equipment Brochure | View Link |
|---|
The Bobcat PA450VP portable air compressor offers two-in-one versatility thanks to its dual pressure/airflow capability, which delivers either low airflow with high pressure or low pressure and high flow. Operators can make the adjustment on the fly (while the compressor is operating) with a single switch on the intuitively designed control panel. It’s an ideal setup for jobsites requiring support of multiple applications.
The dual pressure technology from Bobcat gives you the versatile air power you need to maximize productivity. With the HI/LOW options on the control panel, you can easily select between the two adjustable air flow and air pressure combinations to power multiple applications (without needing multiple compressors).
Service points on the PA450VP are easily accessible – and its simplified wiring and piping design makes servicing even easier. Automatic shutdowns (relative to several critical operational parameters) help avoid costly damage and subsequent repairs, increasing your overall uptime and productivity.
The PA425V delivers air power you can depend on with its power dense Tier 4 Final Cummins engine, engineered with DOC and SCR emissions technology. The Mini-Port full gauge control panel displays engine and airend temperature and pressure, as well as the percentage of fan speed and engine load. You can change the pressure and flow settings during compressor operation – delivering low airflow with high pressure or high airflow with low pressure. Automatic shutdowns, relative to several critical operational parameters, help avoid downtime for repairs.
The included mini-port full gauge control panel makes the PA450VP easy to operate in the field with selectable languages and display features. The machines intuitive control panel displays a wide variety of key machine parameters.
