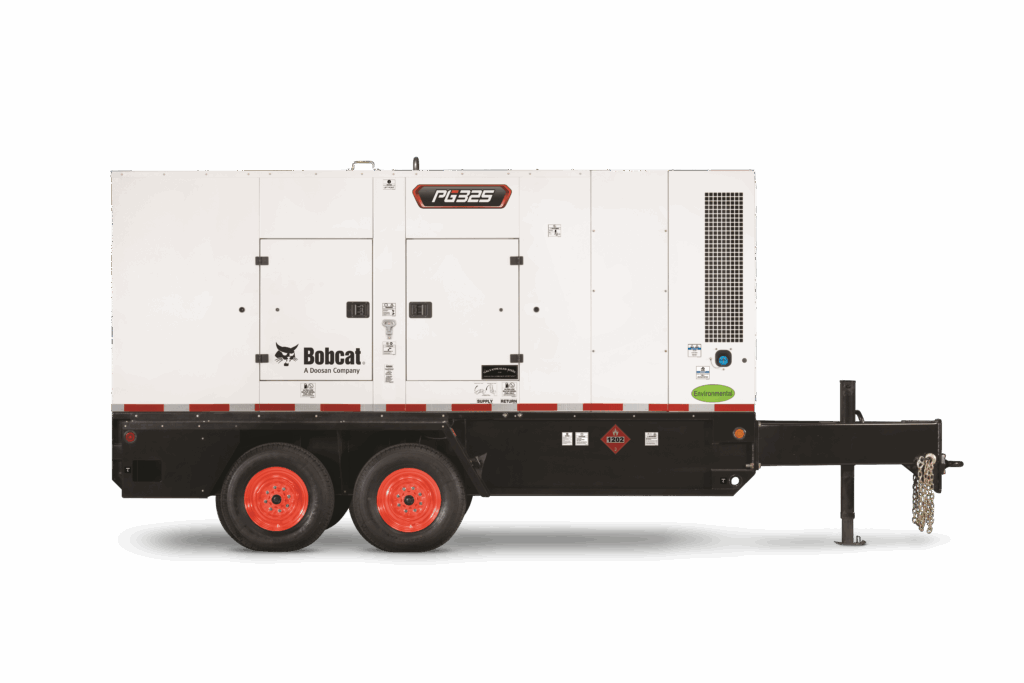

BOBCAT PG325 Portable Generator
154-570 kVA
Powered by a Cummins QSL9-G9 engine, the Bobcat PG325 portable generator offers heavy-duty power capable of operating in extreme conditions.
- Delivers 334 kVA/267 kW output at a quiet 76 dB(A)
- 24-hour runtime even at 100% load
- Easy-to-read analog control panel for quick monitoring
- Easily accessible connection panel for improved safety
- Capable of running in parallel for expanded power needs
| @ 400V-3-phase, 0.8PF, 50Hz | 280 kVA (224 kW), 404 Amps |
|---|---|
| @ 480V-3-phase, 0.8PF, 60Hz | 334 kVA (267 kW), 401 Amps |
| @ 240V-3-phase, 0.8PF, 60Hz | 334 kVA (267 kW), 803 Amps |
| @ 120V-single-phase, 1.0PF, 60Hz | 197 kVA (197 kW), 821 x 2 Amps |
| @ 240V-single-phase, 1.0PF, 60Hz | 197 kVA (197 kW), 821 Amps |
| @ 208V-3-phase, 0.8PF, 60Hz | 316 kVA (253 kW), 877 Amps |
| Emissions Tier Level | Tier 4 Final |
| Engine Make / Model | Cummins/QAL9-G9 |
| Frequency Capability | 50Hz/60Hz Switchable |
| Fuel Tank Capacity - Gal (L) | 480 (1817) |
| Height - in (mm) | 113.0 (2870) |
| Length - in (mm) | 240 ( |
| Power Output @ 1800RPM - HP (kWm) | 393 (293) |
| Runtime @ 75% Load - Hr | 32.5 |
| Sound Level - dB(A) | 76 |
| Voltage Configuration | Link Board |
| Weight (Ready to Run) - lb (kg) | 14032 (6378) |
| Width - in (mm) | 83.0 (2108) |
| Equipment Brochure | View Link |
|---|
