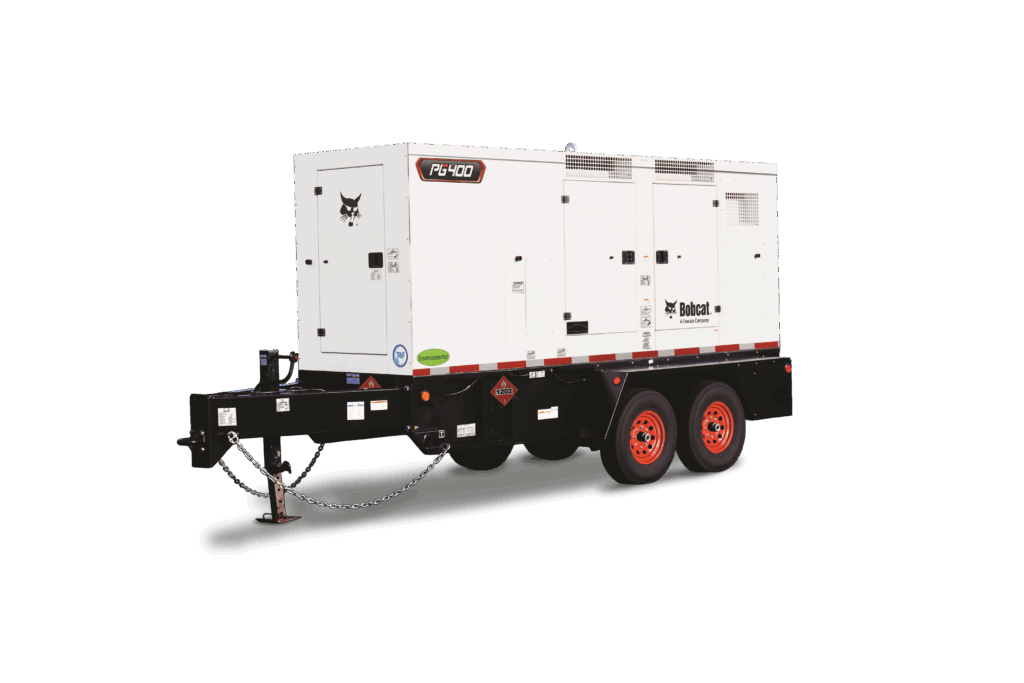

BOBCAT PG400 Portable Generator
Generators
The PG400 is one of the most powerful towable generators on the market, yet its compact footprint allows for easy jobsite maneuverability.
- Powered by a reliable Cummins QSG12 engine
- 20-hour runtime at 100% load
- Delivers 402 kVA (322 kW) at 79 dB(A)
| @ 400V-3-phase, 0.8PF, 50Hz | 387 kVA (310 kW), 559 Amps |
|---|---|
| @ 480V-3-phase, 0.8PF, 60Hz | 402 kVA (321 kW), 484 Amps |
| @ 240V-3-phase, 0.8PF, 60Hz | 402 kVA (321 kW), 969 Amps |
| @ 120V-single-phase, 1.0PF, 60Hz | 216 kVA (216 kW), 900 x 2 Amps |
| @ 240V-single-phase, 1.0PF, 60Hz | 216 kVA (216 kW), 900 Amps |
| @ 208V-3-phase, 0.8PF, 60Hz | 402 kVA (321 kW), 1118 Amps |
| Emissions Tier Level | Tier 4 Final |
| Engine Make / Model | Cummins/QSG12 |
| Frequency Capability | 50Hz/60Hz Switchable |
| Fuel Tank Capacity - Gal (L) | 470 (1779) |
| Height - in (mm) | 115 (2921) |
| Length - in (mm) | 241 (6121) |
| Power Output @ 1800RPM - HP (kWm) | 475 (354) |
| Runtime @ 75% Load - Hr | 27 |
| Sound Level - dB(A) | 76 |
| Voltage Configuration | Link Board |
| Weight (Ready to Run) - lb (kg) | 15450 (7022) |
| Width - in (mm) | 83 (2108) |
| Equipment Brochure | View Link |
|---|
For heavy-duty jobs that require mobility and versatility, choose the Bobcat® PG400 portable generator. It leads its class in power density, delivery ruggedly reliable power in a compact footprint made for maneuvering around difficult jobsites.
Built in the frame, the PG400 is not just another standby generator that’s been placed on a trailer. It’s a true towable generator built with the intent to be moved around your jobsite even in the toughest conditions.
Featuring the proven CoolBox Plus galvanized steel enclosure, the variable speed cooling fan ensures precision package cooling, reduced noise levels and improved fuel economy. The powerful Cummins QSG12 engine features advanced engineering to reduce sludge build up at load operating loads, reducing your overall maintenance costs and keeping you up and running for maximum productivity.
And like all Bobcat portable generators, the PG400 was built for ease of operation. With all service components easily accessible, on-the-job maintenance can be completed quickly and efficiently. Its analog gauges are easy-to-read, allowing operators to keep an eye on machine performance and diagnostics with a quick glance.
The PG400 is powerful and versatile enough to support any application.
