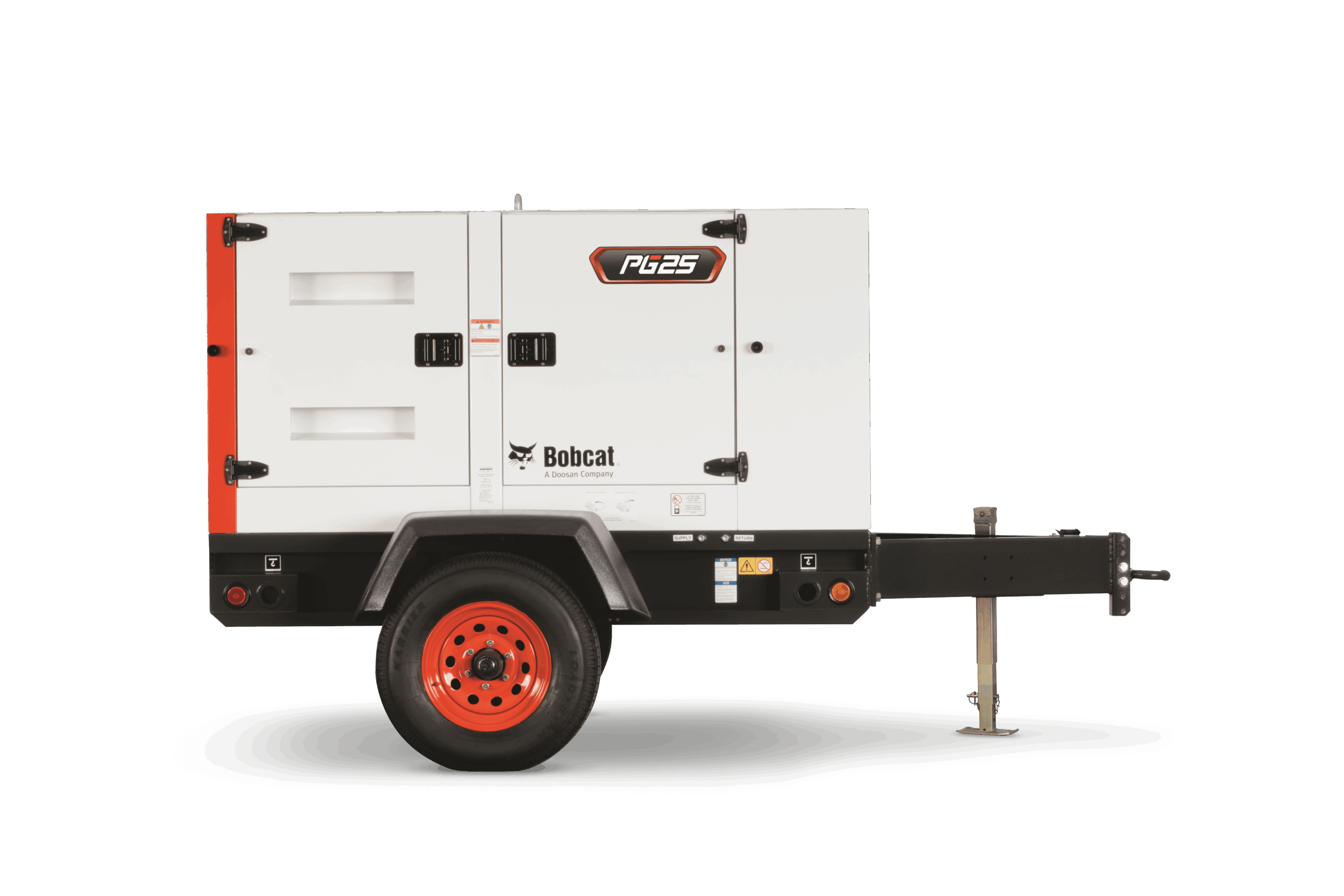

BOBCAT PG25 Portable Generator
25-125 kVA
The Bobcat PG25 portable generator gives you dependable power in an impressively compact design thatâs capable of handling the toughest jobsite conditions.
- Delivers 25 kVA (20 kW) at a quiet 63 dB(A)
- Easy-to-read analog gauges for quick performance monitoring
- 25-hour maximum runtime at 100% load
- User-friendly control panel
- Ideal for events, emergency backup power and construction sites
| @ 400V-3-phase, 0.8PF, 50Hz | 25 kVA (20KW), 36 Amps |
|---|---|
| @ 480-3-phase, 0.8PF, 60Hz | 25 kVA (20kW), 30 Amps |
| @ 240V-3-phase, 0.8PF, 60Hz | 25 kVA (20 kW), 60 Amps |
| @ 120V-single-phase, 1.0PF, 60 Hz | 20 kVA (20 kW), 83 x 2 Amps |
| @ 240V-single-phase, 1.0PF, 60Hz | 20 kVA (20 kW), 83 Amps |
| @ 208V-3-phase, 0.8PF, 60Hz | 25 kVA (20 kW), 69 Amps |
| Emissions Tier Level | Tier 4 Final |
| Engine Make / Model | Doosan D18 |
| Frequency Capability | 50Hz/60Hz Switchable |
| Fuel Tank Capacity - Gal (L) | 47 (177) |
| Height - in (mm) | 76.6 (1947) |
| Length - in (mm) | 130.5 (3315) |
| Power Output @ 1800RPM - hp (kW) | 33 (24.6) |
| Runtime at 75% Load - hr | 30 |
| Sound Level - db(A) | 62 |
| Voltage Configuration | 3-Position Switch |
| Weight (Ready to Run) - lb (kg) | 3060 (1388) |
| Width - in (mm) | 68.3 (1735) |
| Equipment Brochure | View Link |
|---|
The PG25 portable generator from Bobcat delivers dependable power in a small package. Built tough with a rugged enclosure and running gear, the PG25 can withstand the toughest conditions to keep you up and running, maximizing your jobsite productivity. Its user-friendly control panel, easy-to-read analog gauges, 25-hour runtime and quiet operation make the PG25 ideal for events, emergency backups and construction sites.
Bobcat designed the compact PG25 generator to be easy to operate for you and your crew or for rental applications. The simple control panel comes with neatly laid out gauges and diagnostic displays that allow users to quickly monitor the generator and make adjustments as needed. From heavy-duty construction needs to music festivals, the PG25 also offers multiple connection options for ultimate versatility.
The reliable Doosan D18 engine ensures longer runtime and maintenance intervals, while the Marelli alternator further enhances overall reliability and efficiency with strong motor starting capability, stable voltage regulation and fast transient response.
For low-load operation, the optional built-in Intelligent Load Management System (ILMS) automatically protects the PG25’s engine and exhaust after-treatment system during unfavorable operating conditions. The ILMS creates a mechanical load on the engine to substantially – and immediately – heat the engine coolant to reach ideal operational temperature and minimize wet stacking. This prolongs the life of your generator and reduces maintenance costs.
