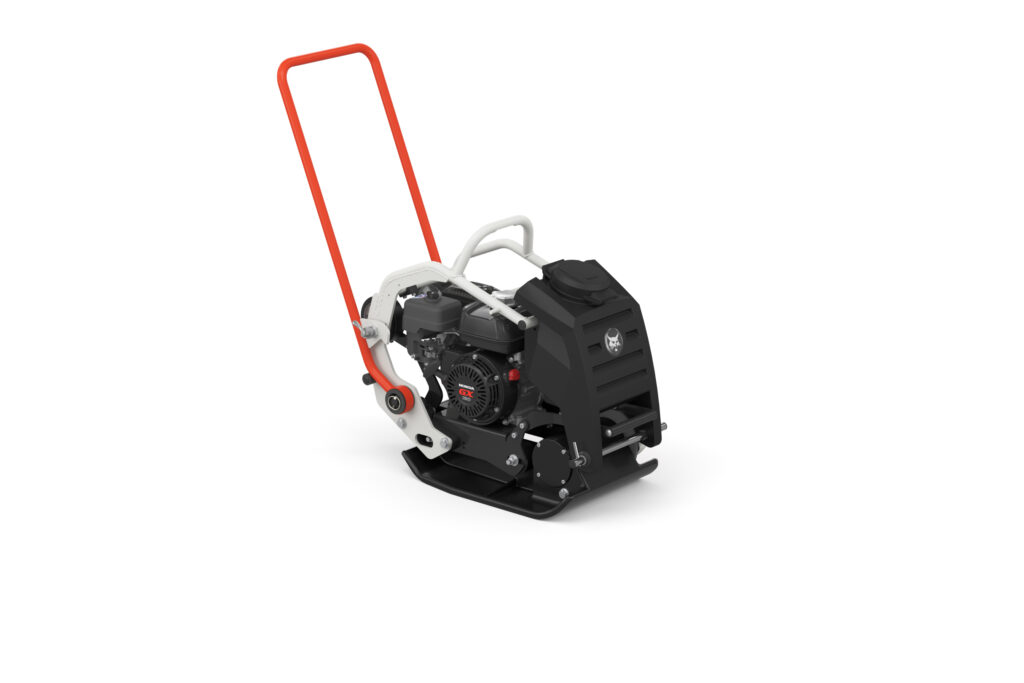

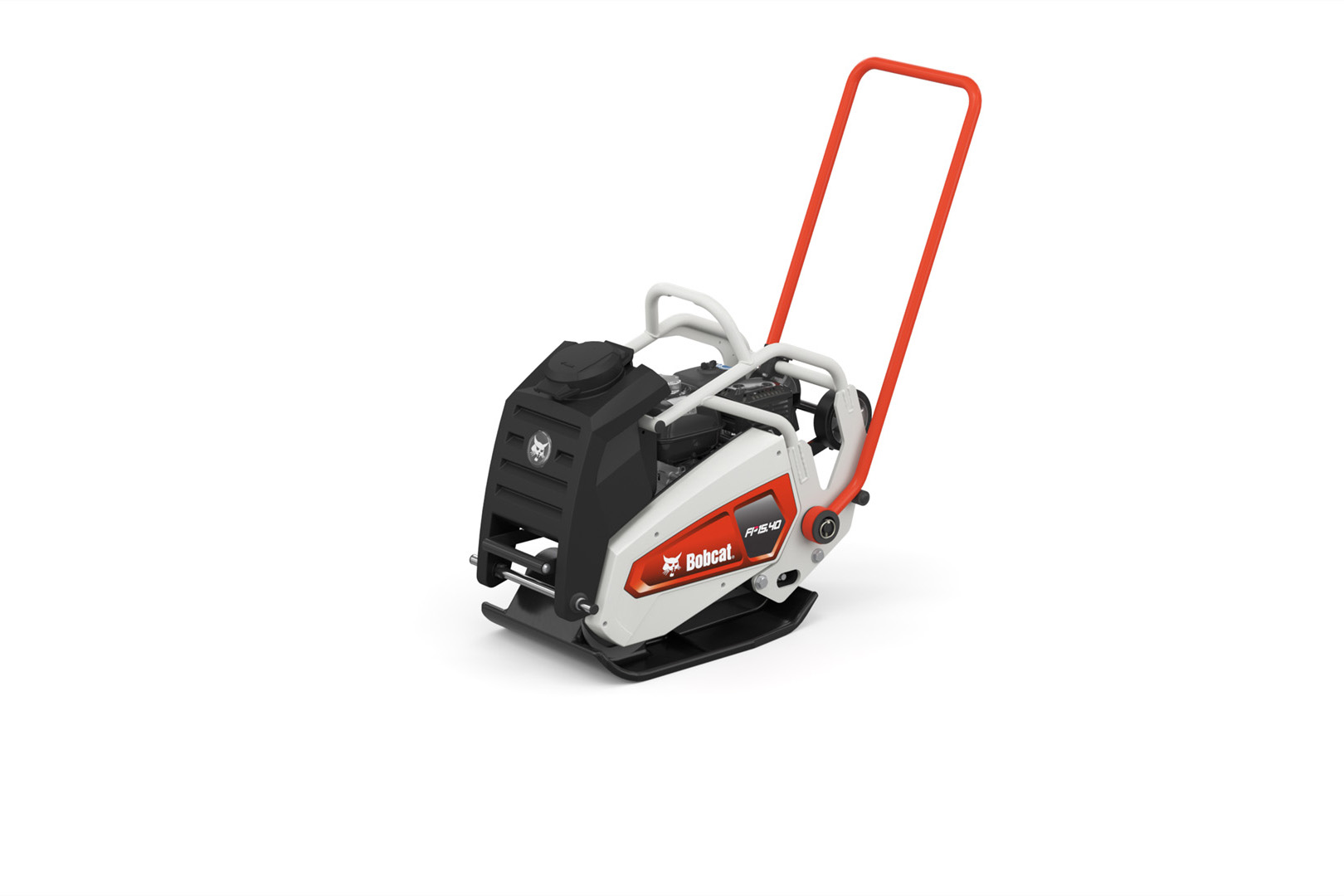

BOBCAT FP15.40 Forward Plate Compactor
Forward Plate Compactors
The versatile FP15.40 forward vibratory plate compactor achieves optimal compaction results on a variety of granular materials including sand, gravel and hot-mix asphalt.
- Reliable Honda engine
- Easy transport with optional, toolless wheels
- Industry-leading forward movement
- Standard water tank and sprayer kit
| Surface Capacity Per Hour - sq ft/hr | 6975 |
|---|---|
| Centrifugal Force - lbf (kN) | 3372 (15) |
| Height - in (mm) | 26.3 (668) |
| Length - in (mm) | 27.6 (701) |
| Engine Make/Model | Honda/GX120 |
| Horsepower - hp (kW) | 3.5 (2.6) |
| Operating Weight - lb (kg) | 176 (80) |
| Plate Size - (w x l) in (mm) | 15.7 x 22 (400 x 559) |
| Travel Speed - mph | 1 |
| Width - in (mm) | 15.7 (399) |
| Equipment Brochure | View Link |
|---|
- Put this Bobcat forward vibratory plate compactor to work in a wide range of applications, including base compaction within trenches or surface material compaction.
- The FP15.40 forward plate compactor is equipped with a durable and efficient Honda engine that provides easy starts and maximum power while minimizing fuel consumption.
- Quickly attach the optional, toolless mat to operate the plate compactor on paving stones without cracking or chipping the surface.
- Designed to isolate plate vibrations from the operator’s handle, Bobcat forward plate compactors minimize hand-arm vibration and fatigue.
- Control dust or keep the vibratory base plate free of hot asphalt buildup with the standard water tank and sprinkler system.
