BOBCAT FP15.50 Forward Plate Compactor
Forward Plate Compactors
The FP15.50 forward plate compactor is equipped with a durable and efficient Honda engine that provides easy starts and maximum power while minimizing fuel consumption.
- Consistent compaction results on a variety of materials
- Easy access to service points
- Extended service intervals reduce operation costs
- A robust tubular frame surrounds the engine
- Standard water tank and sprayer kit
| Surface Capacity Per Hour - sq ft/hr | 7750 |
|---|---|
| Centrifugal Force - lbf (kN) | 3372 (15) |
| Height - in (mm) | 26.3 (668) |
| Length - in (mm) | 27.6 (701) |
| Engine Make/Model | Honda/GX120 |
| Horsepower - hp (kW) | 3.5 (2.6) |
| Operating Weight - lb (kg) | 185 (84) |
| Plate Size - (w x l) in (mm) | 19.7 x 27.6 (500 x 700) |
| Travel Speed - mph | 0.9 |
| Width - in (mm) | 19.7 (500) |
| Equipment Brochure | View Link |
|---|

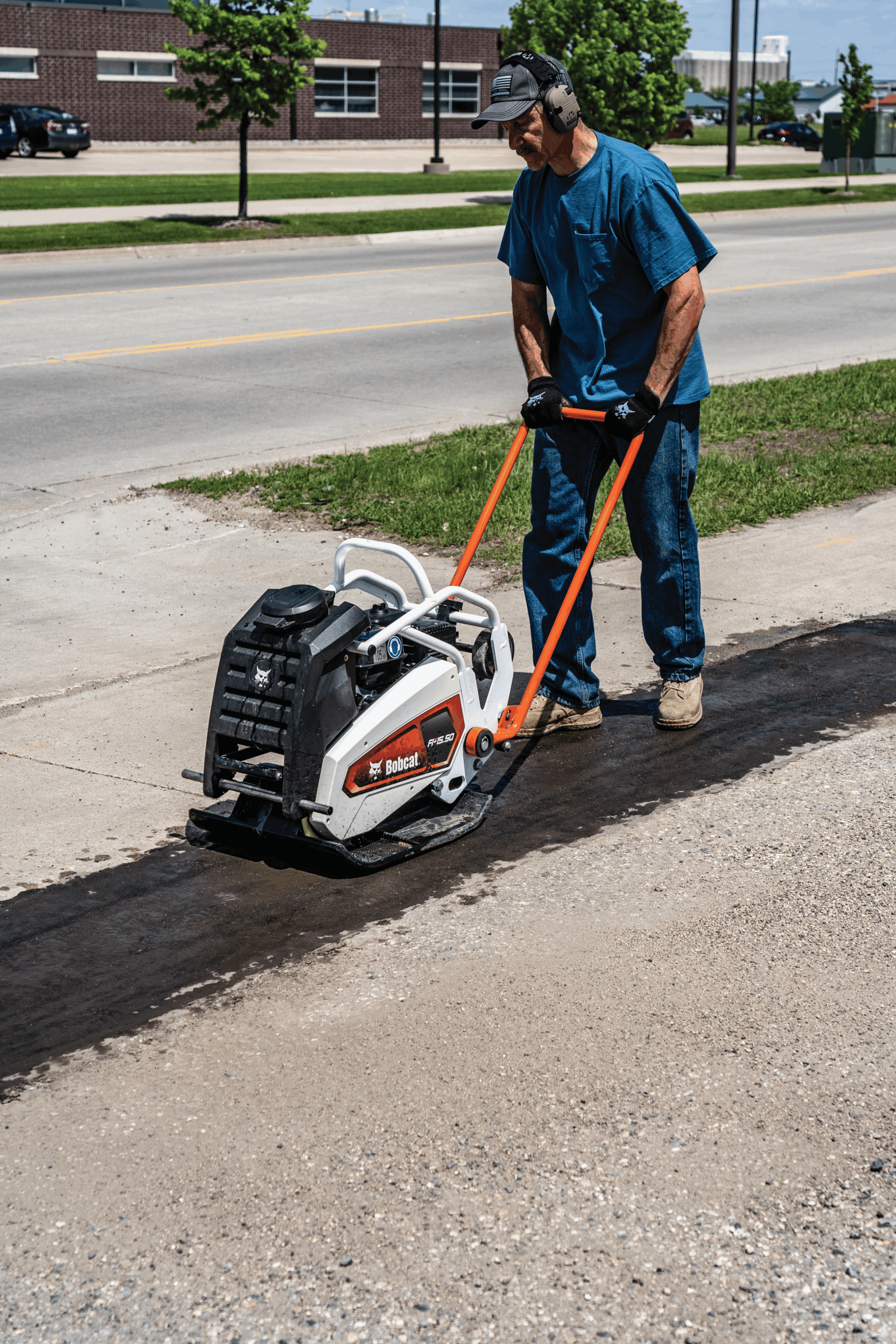

- Put the FP15.50 forward plate compactor to work in a wide range of applications and leave behind high-compaction results.
- Designed to isolate plate vibrations from the operator’s handle, Bobcat forward plate compactors minimize hand-arm vibration and fatigue.
- Moving a Bobcat forward plate compactor from one jobsite to another is easy with the optional, toolless transport wheels and central lift bar.
- Control dust or keep the vibratory base plate free of hot asphalt buildup with the standard water tank and sprinkler system.
- The one-piece cast base plate is designed with no connection points that can weaken over time. The base plate is also thicker in the rear, where most wear occurs.
