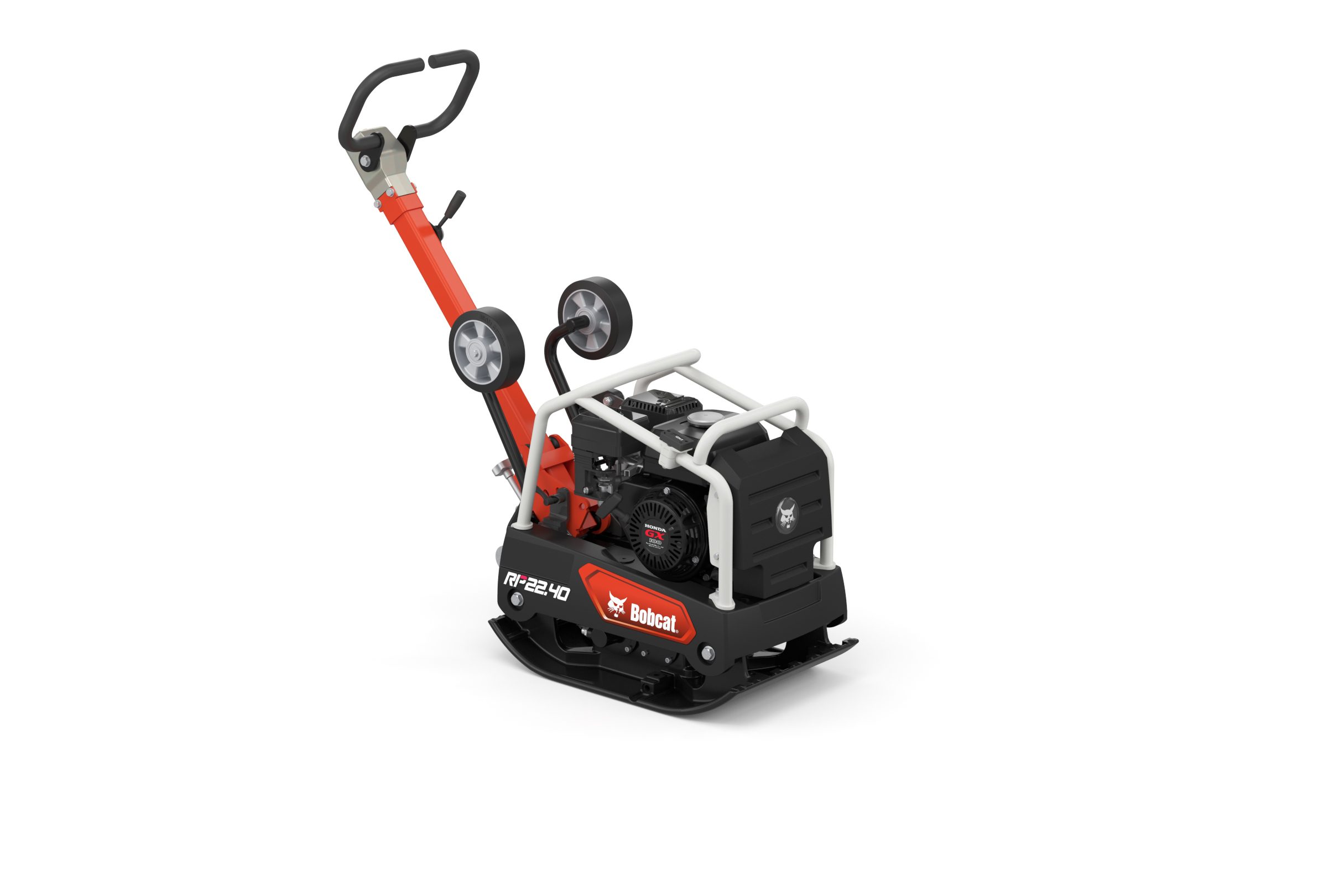

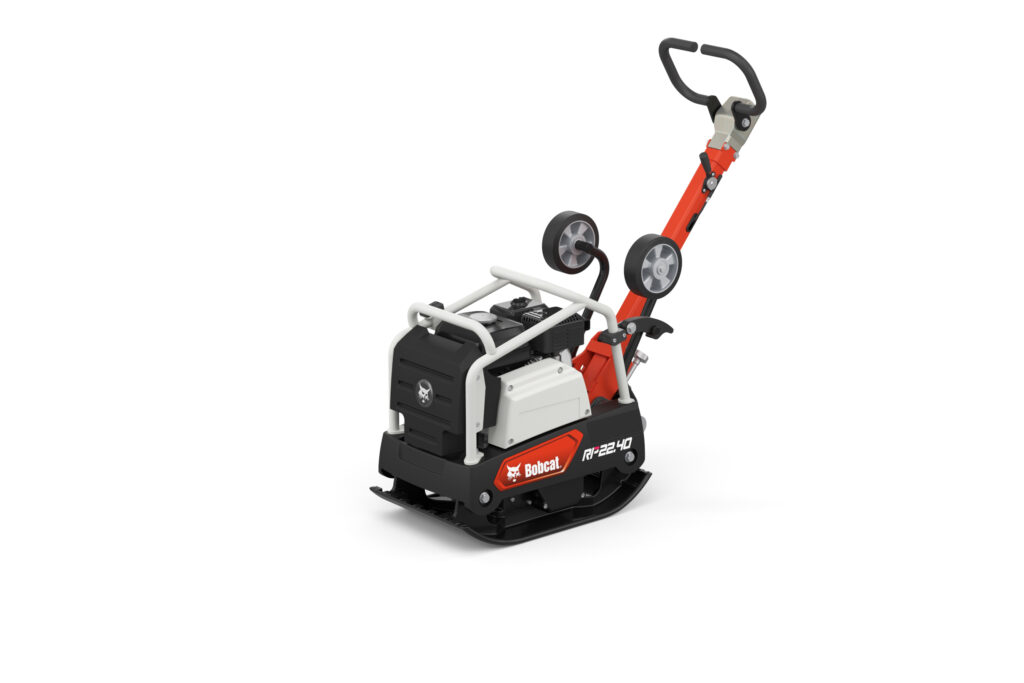

BOBCAT RP22.40 Reversible Plate Compactor
Light Compaction
The Bobcat RP22.40, the smallest reversible vibratory plate compactor in the Bobcat lineup, delivers great compaction results in a wide range of applications.
- Quick directional changes
- Built to last
- Easy to operate and transport
- Optimum compaction forces
| Surface Capacity Per Hour - sq ft/hr | 5683 |
|---|---|
| Centrifugal Force - lb (kN) | 5170 (23) |
| Height - in (mm) | 24.6 (625) |
| Length - in (mm) | 23.6 (600) |
| Engine Make/Model | Honda/GX160 |
| Max. Horsepower - hp (kW) | 4.8 (3.6) |
| Operating Weight - lb (kg) | 220 (100) |
| Plate Size - (w x l) in (mm) | 14 x 19 (350 x 470) |
| Width - in (mm) | 15.7 (399) |
| Equipment Brochure | View Link |
|---|
- Equipped with a durable, 4.8-hp Honda engine, the Bobcat RP22.40 reversible plate compactor delivers powerful compaction forces in a small package.
- The operator handle is designed for intuitive machine operation and minimal hand-arm vibration.
- With optimum machine balance, the base plate distributes power evenly.
- Continuous movement compaction and stationary work are equally productive, efficient and easy on the operator.
- Optional features include toolless transport wheels, a rubber, slip-on mat for compaction work on paving stones, and a vibration-activated hour meter.
