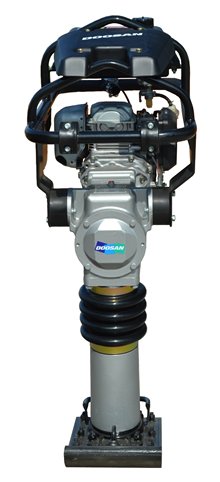

Doosan RX-264H Upright Rammer

RX-264H Upright Rammer

Doosan
Upright Rammers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Doosan Portable Power has engineered the RX series of upright rammers to deliver the compaction power you need in an efficient, maneuverable design. The RX series of rammers provide compaction solutions for a wide array of applications. All of Doosan Portable Power’s light compaction equipment is manufactured to the highest quality and is backed by our legendary service and reputation. The RX series of upright rammers are tough enough for any jobsite and will deliver the high impact forces you need.

Compact in size, big on engineering; the RX-264H upright rammer is self-balancing, low profile, and light weight. The RX-264 has been engineered with a low center of gravity to maximize control and maneuverability around jobsite obstacles. The self-balancing feature reduces operator stress and fatigue, increasing operator safety.

Specifications
Documents

Height - in (mm): 43.3 (1100)
Narrow Foot Options - provide maximum versatility for all types of trench work:
Impact Force - lb (kN): 2600 (11.2)
Plate Size - (w x l) in (mm): 9 x 13 (230 x 330)
Length - in (mm): 26.6 (675)
Blows per Minute: 600 - 650
Operating Weight - lb (kg): 127 (58)
Engine Speed - rpm: 4000
Size (w x l) - in (mm)/CPN: 4 x 13 (102 x 330)/13373550
Max. Horsepower - hp (kW): 2.8 (2.1)
Fuel Tank Capacity - qt (L): 2.6 (2.5)
Width - in (mm): 15.2 (385)
Manufacturer, Type: Honda, gasoline
Size (w x l) - in (mm)/CPN: 8 x 13 (203 x 330)/58836974
Model: GX100
Max Recommended Compaction Depth - in (mm): 18 (460)
Travel Speed - fpm (m/min): 39 - 46 (12 - 14)
Area Capacity Per Hour - sq ft (m²): 2100 (195)
