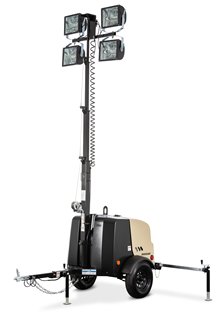

Doosan LCV8WKUB-60Hz-T4F Light Tower
Light Towers
Equipment Specifications
| 120V GFCI Duplex (NEMA 5-20R) | 2 × 20A |
|---|---|
| 240V Twist lock (NEMA L6-30R) | 1 × 30A |
| Available AC Voltage - Single Phase - V | 120/240 |
| Available Frequency - Hz | 60 |
| Cooling System | Water / Glycol |
| DC System Voltage / Battery Capacity | 12 VDC / 520 CCA |
| Fuel Type | #2 Ultra-Low Sulfur Diesel |
|---|---|
| Height (w/ Tower Deployed) - ft (m) | 23 (7) |
| Height (w/ Tower in Transport Position) - ft (m) | 8.4 (2.6) |
| Length (Drawbar Down) - in (mm) | 109 (2768) |
| Length (Drawbar Up) - in (mm) | 82 (2083) |
| Make/Model | Kubota D1105 |
| Number of Cylinders / Displacement – cu in (L) | 3 / 68.53 (1.123) |
| Operating Weight - lb (kg) | 1793 (815) |
| Power @ Rated Speed - bhp (kW) | 15.4 (11.5) @ 1800 RPM |
| Prime Power Rating, 1.0 PF - kW | 8 |
| Runtime Full Load - hrs | 75 |
| Runtime with 4 LED Lights - hrs | 180 |
| Runtime with 4 Metal Halide Lights - hrs | 97 |
| Shipping Weight - lb (kg) | 1430 (650) |
| Track Width - in (mm) | 47.4 (1206) |
| Usable Fuel Capacity – gal (L) | 52.4 (198.4) |
| Width (Standard) - in (mm | 55 (1397) |
| Width (w/ Outriggers Deployed) - in (mm) | 121 (3084) |
Doosan Portable Power’s first vertical mast light tower, the LCV8, has a compact footprint for increased jobsite mobility and cost-effective transport. The LCV8 light tower features a Kubota engine paired with a high output 8 kW alternator, providing light and power concurrently with a class-leading run-time of 75 hours. Our clamshell-style canopy is made of a durable, lightweight composite material that lifts easily for access to service points. The engine’s 1000-hr oil change interval helps to reduce downtime and maintenance costs.
