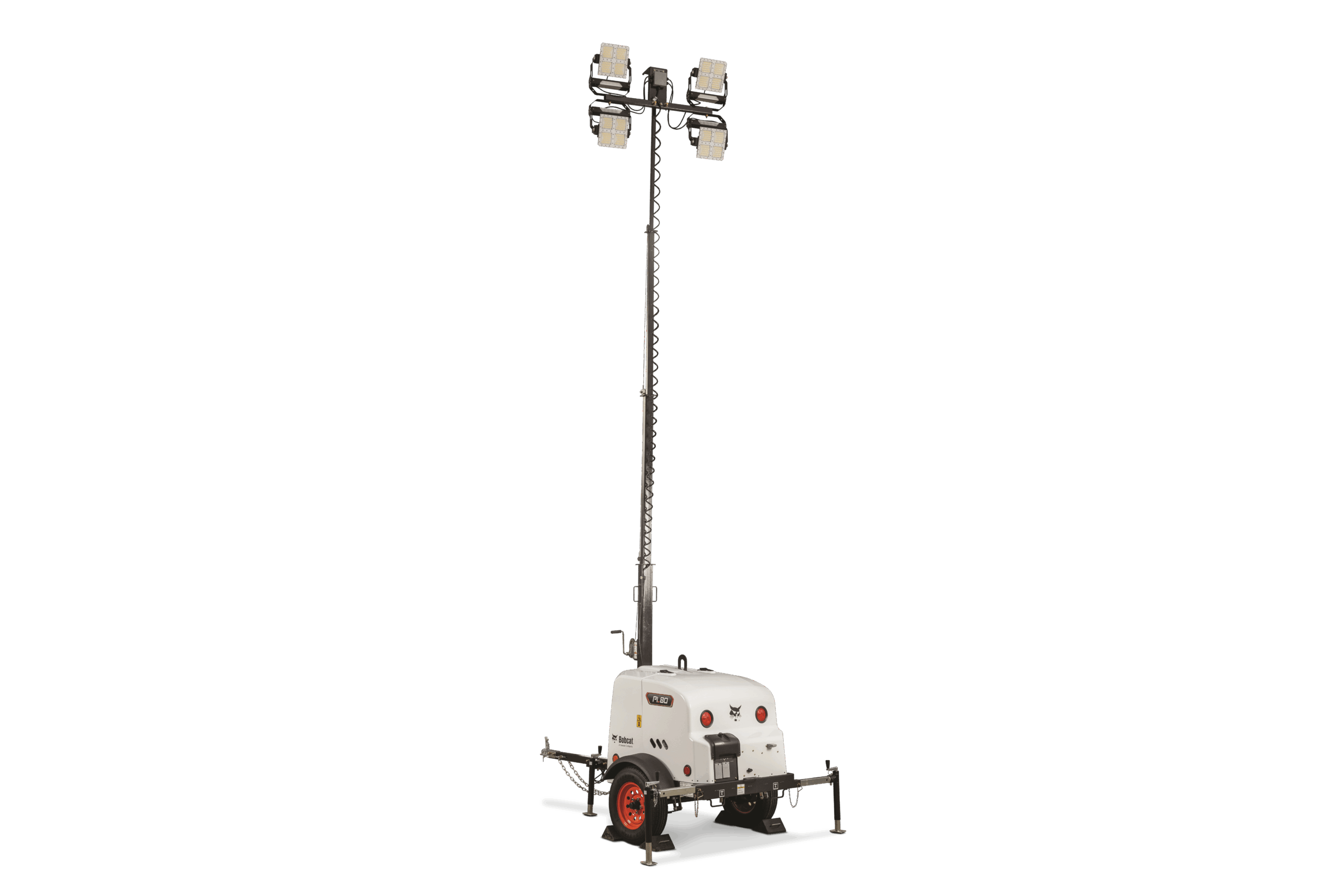

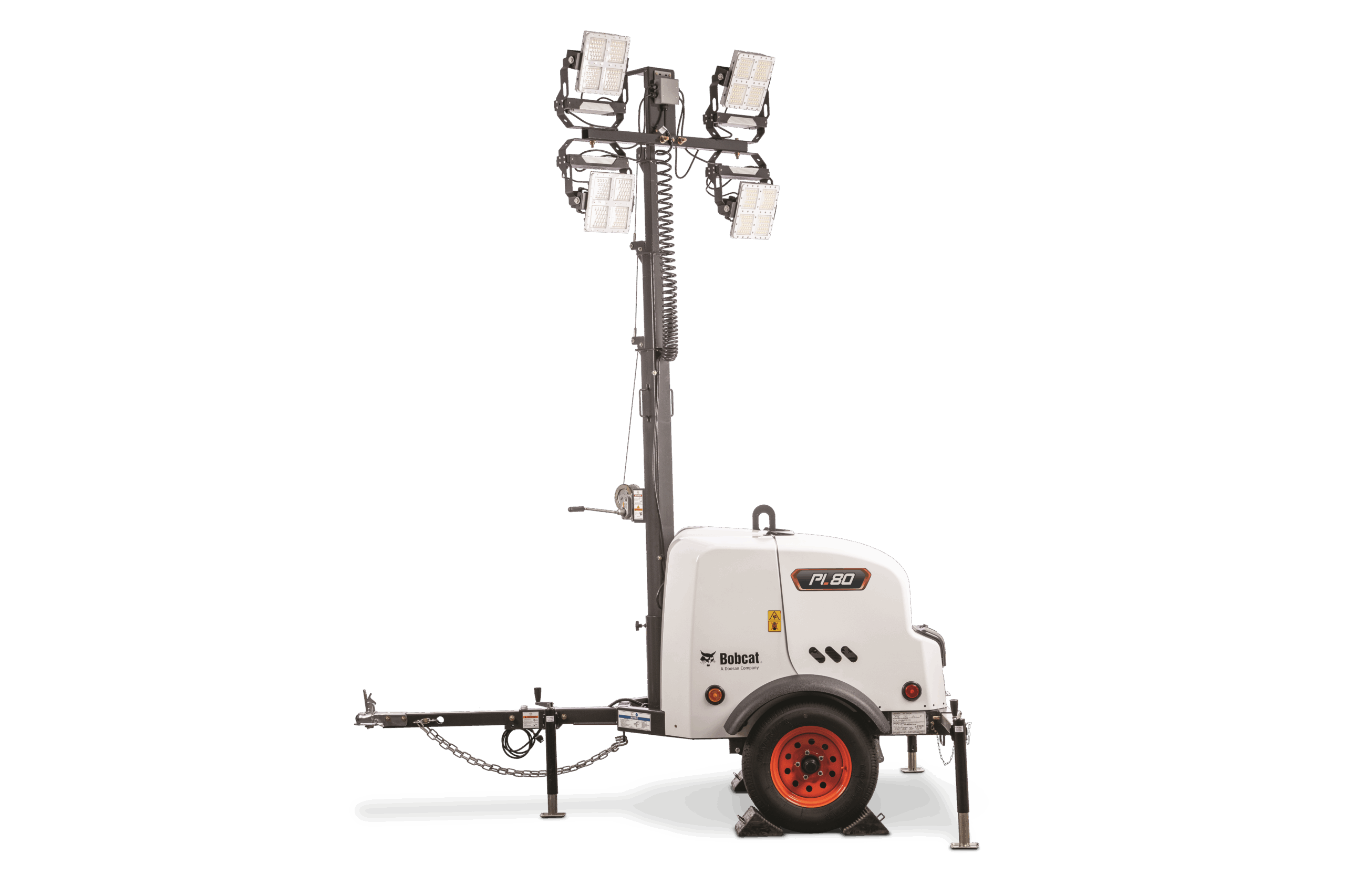

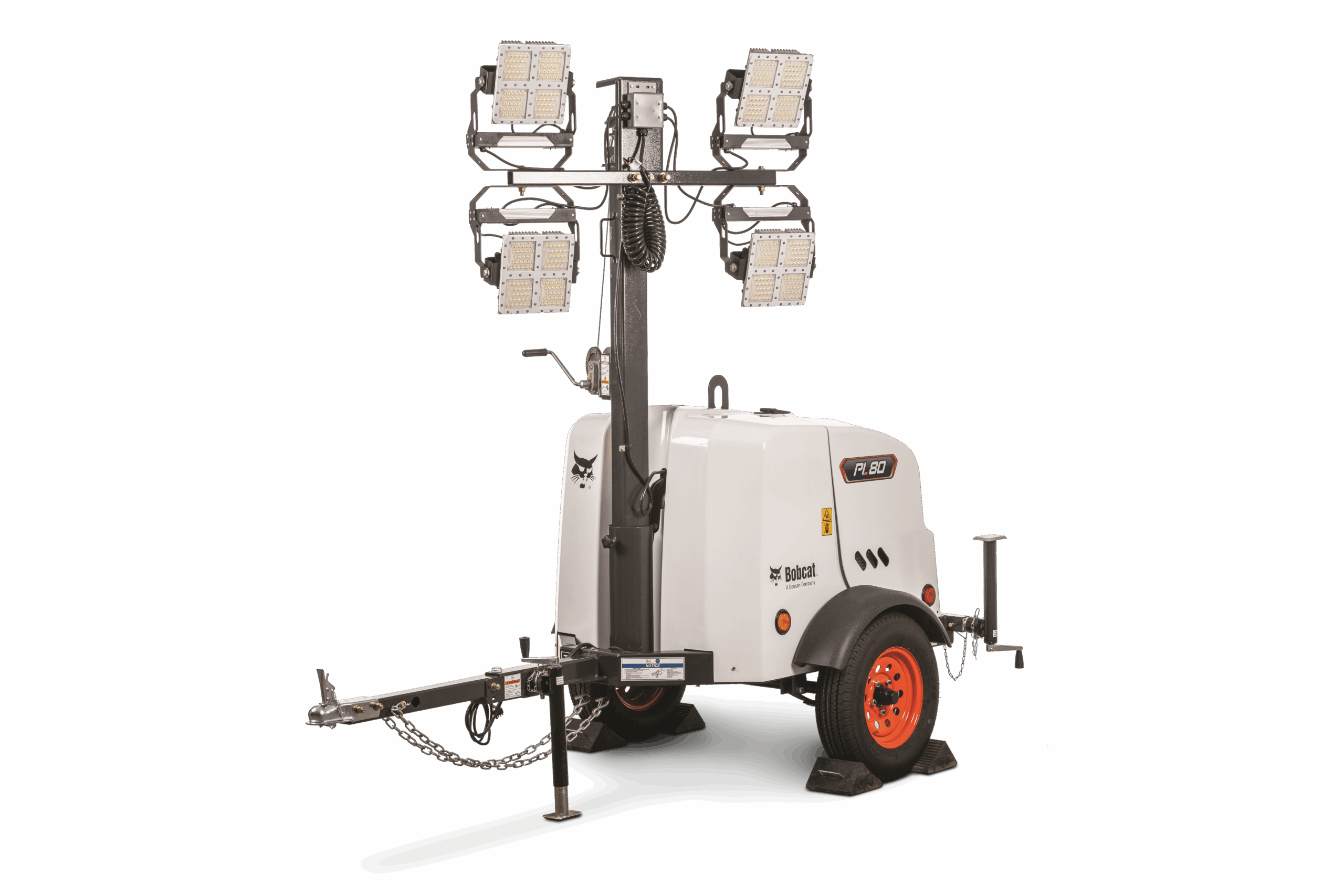

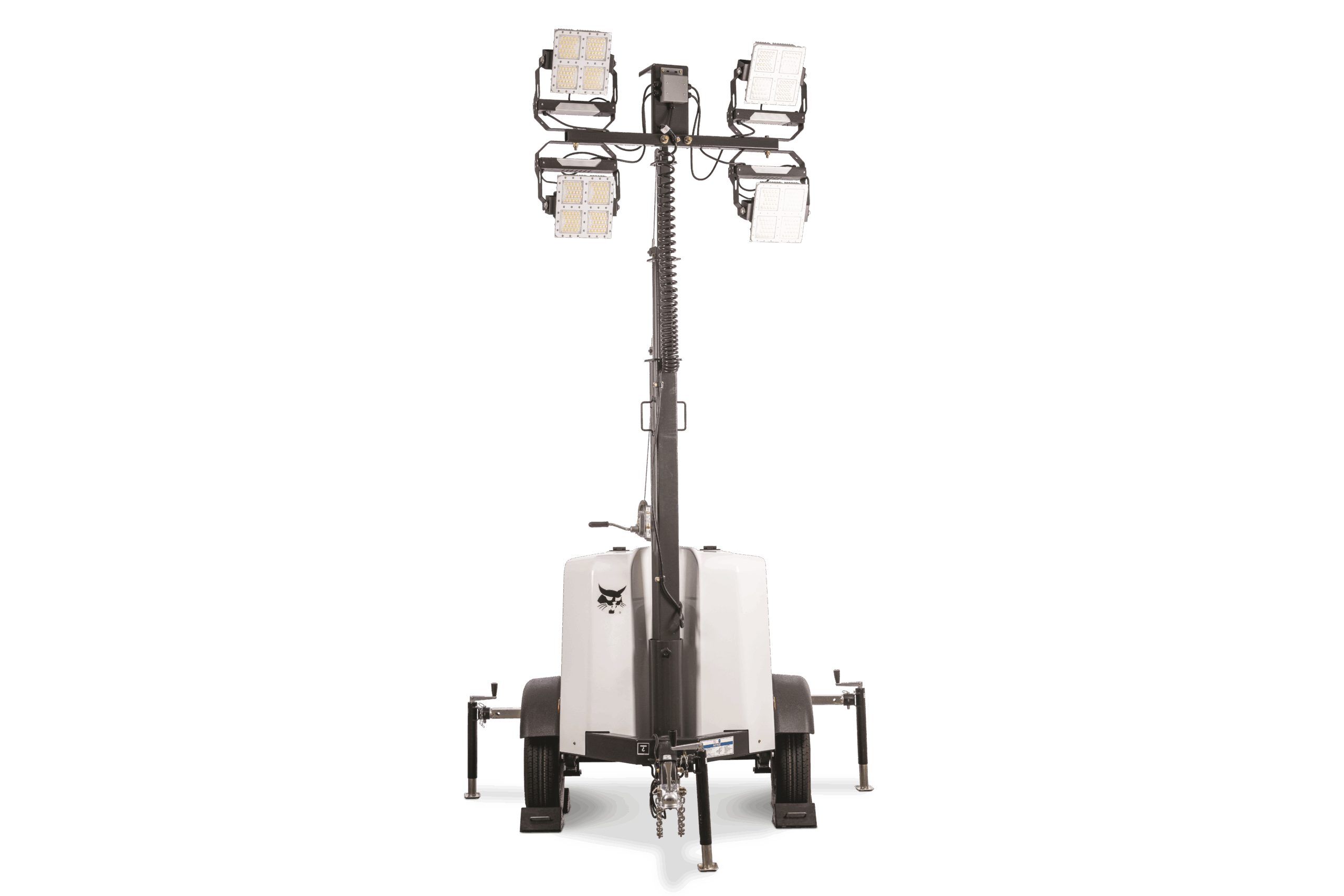

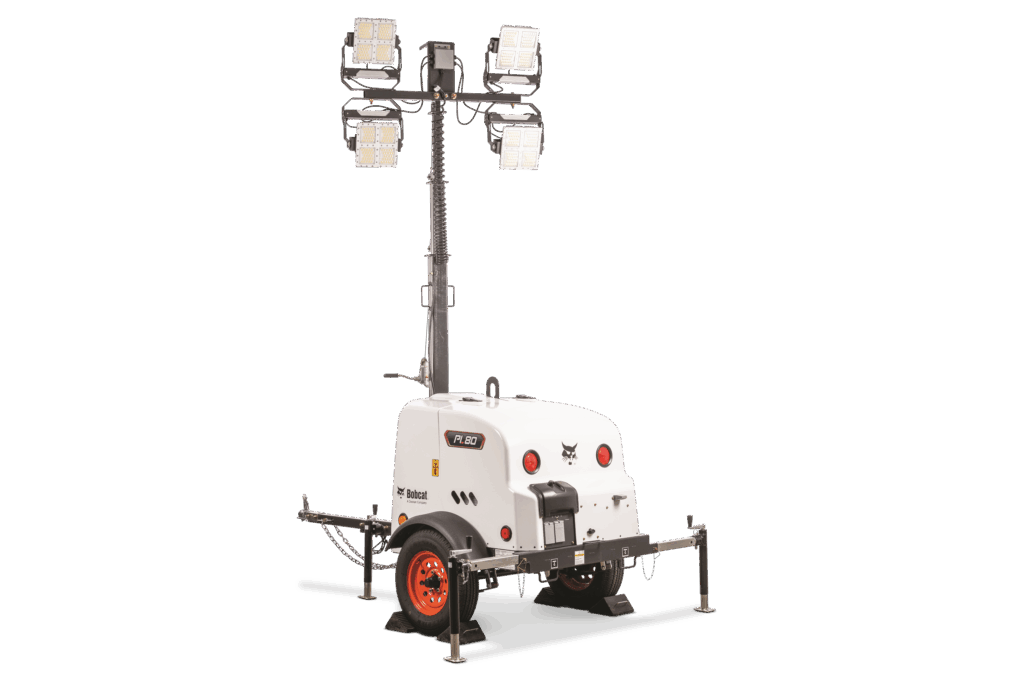

BOBCAT PL80 Light Tower
Light Towers
The Bobcat PL80 portable light tower provides long runtimes and even longer maintenance intervals for easy, hassle-free operation.
- One of the most compact light towers available
- Optional LED lamps extend runtime with a 50,000-hour lifespan
- Composite clamshell gives you easy access to all service components
- Ideal for construction, disaster relief, parking lots and special events
| 120V GFCI Duplex (NEMA 5-20R) | (2) Standard |
|---|---|
| Available AC Voltage - Single Phase - V | 120 |
| Cooling System | Water / Glycol |
| Emissions Tier Level | Tier 4 Final |
| Fuel Type | #2 Ultra-Low Sulfur Diesel |
| Height (w/ Tower Deployed) - ft (m) | 23 (7) |
| Height (w/ Tower in Transport Position) - ft (m) | 8.5 (2.6) |
| Length (Drawbar Down) - in (mm) | 109 (2768) |
| Length (Drawbar Up) - in (mm) | 82 (2083) |
| Engine Make/Model | Kubota/D1105 |
| Number of Cylinders / Displacement - cu cm (L) | 3 / 1123 (1.123) |
| Operating Weight - lb (kg) | 1793 (813) |
| Power @ Rated Speed - bhp (kW) | 15.4 (11.1) @ 1800 RPM |
| Prime Power Rating - hp | 10.7 |
| Runtime with 4 LED Lights - hrs | 180 |
| Runtime with 4 Metal Halide Lights - hrs | 97 |
| Track Width - in (mm) | 47.4 (1206) |
| Fuel Capacity - gal (L) | 52.4 (198.4) |
| Width (Standard) - in (mm) | 55 (1397) |
| Width (w/ Outriggers Deployed) - in (mm) | 82 (2083) |
| Equipment Brochure | View Link |
|---|

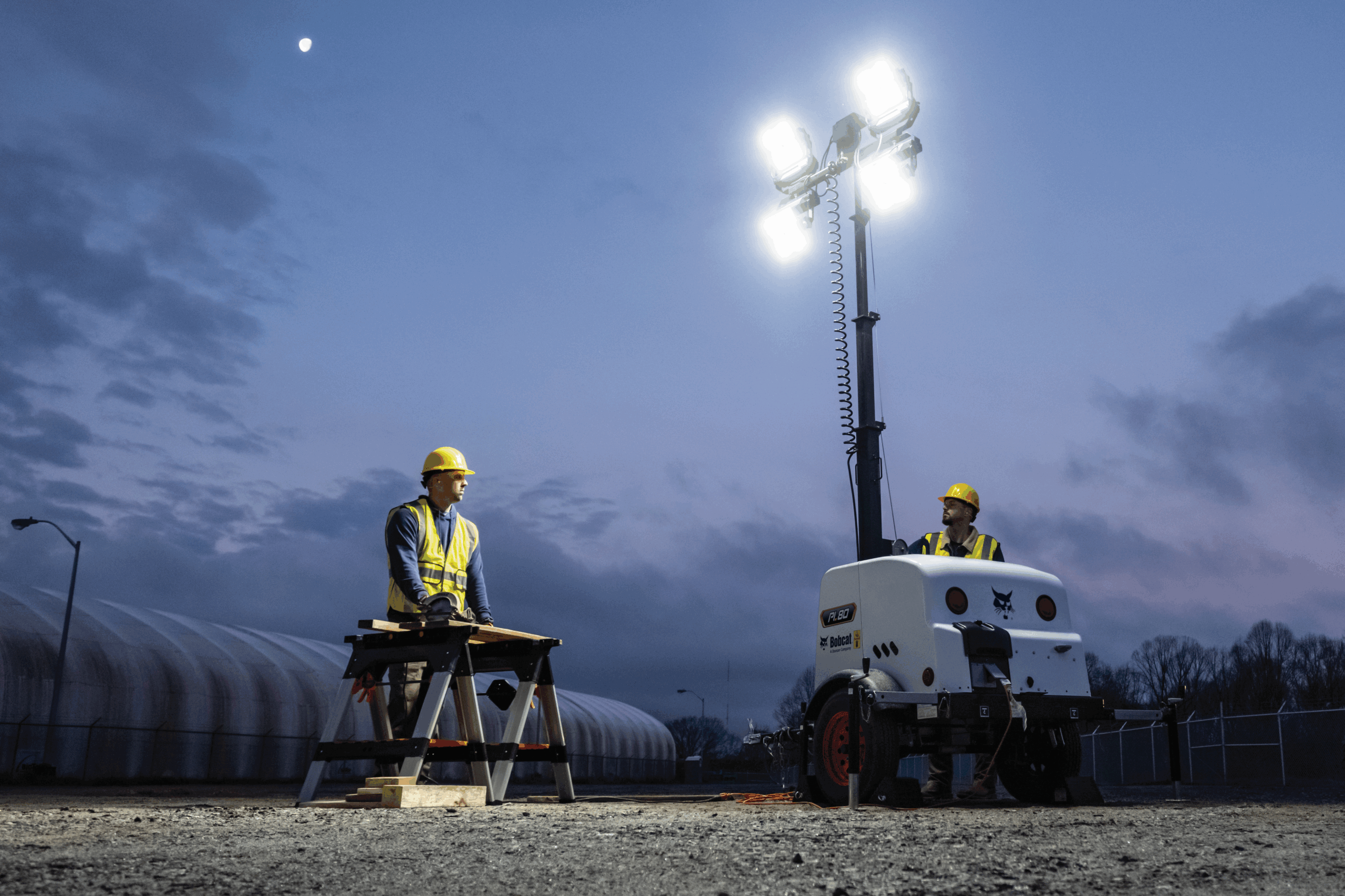

From illuminating construction sites for 24-hour productivity to bringing much-needed light to assist with emergency disaster relief operations, count on the Bobcat PL80 portable light tower and its impressive 180-hour run time.
The PL80 is a programmable light tower that can be set to turn on at dusk and turn off at dawn for uninterrupted productivity. The mast rotates a full 360 degrees and extends up to 23 feet high for broad coverage, while each of the lights can be pointed independently. When it comes time to reposition, the PL80 is compact and light enough to be maneuvered by hand.
The Bobcat PL80 vertical mast light tower features a compact footprint for increased jobsite mobility and cost-effective transport – you can fit 17 on a single flatbed truck. It’s powered by a reliable Kubota® engine paired with a high-output 8-kilowatt alternator, giving you both light and power at the same time.
Like all Bobcat products, the PL80 was engineered for maximum productivity, ease of use and low lifetime cost of operation. The innovative clamshell-style canopy is made of a durable, lightweight composite material that lifts easily for quick access to all service points. The Kubota engine has one of the longest maintenance intervals on the market, capable of running for 1,000 hours in between oil changes, reducing downtime and maintenance costs.
If your workday doesn’t end, or your event heats up after the sun goes down, trust the Bobcat PL80 to provide safe working conditions with zero interruptions.
