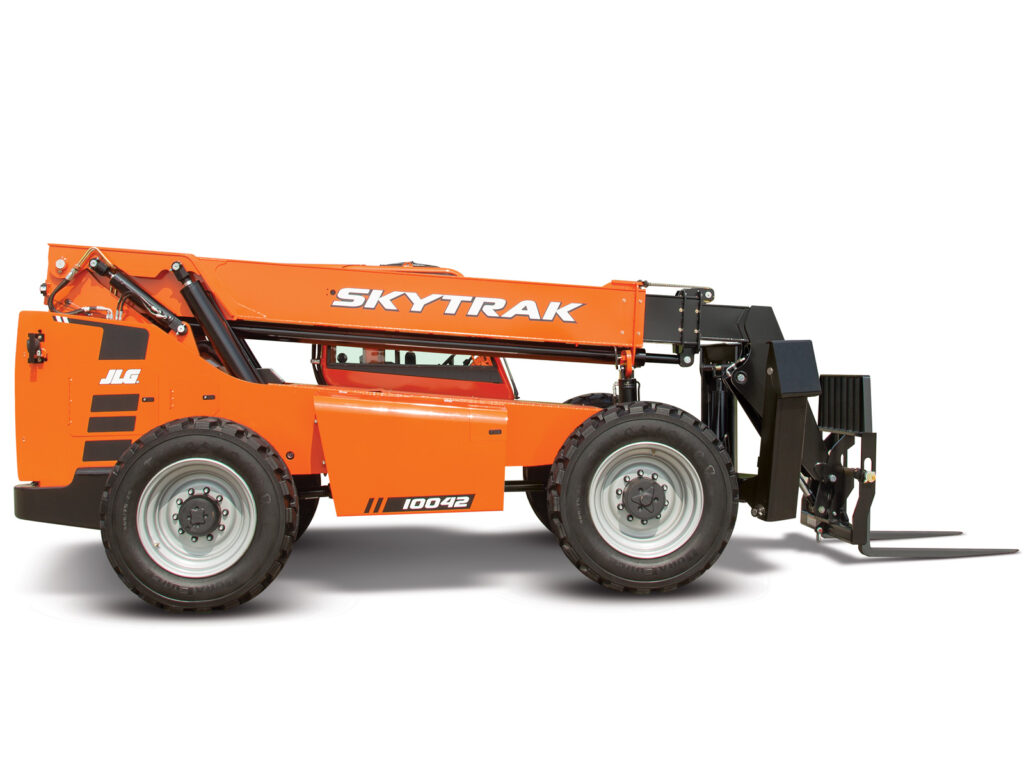

JLG 10042
Telehandlers
Equipment Features
- Greater job site versatility—rear counterweight includes an integrated tow hitch
- Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
- Maximize productivity with improved boom speeds
| Axle-Front | High Bias, Limited Slip |
|---|---|
| Axle-Rear | Oscillating |
| Capacity - Fuel Tank | 35 gal. / 132.49 L |
| Drawbar Pull | 24500 lb / 11113.01 kg |
| Engine Horsepower | 110 hp / 82.06 kW |
| Engine Manufacturer | Cummins |
| Engine Model | QSB3.8L Tier 4 Final |
| Frame Leveling | 10 Degrees |
| Function Pump Type | Var Load Sensing Piston |
| Ground Clearance | 1 ft 6 in. / 0.46 m |
| Load Center | 2 ft / 0.61 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Length | 20 ft 8 in. / 6.3 m |
| Machine Width | 8 ft 6 in. / 2.59 m |
| Maximum Engine RPM | 1500 rpm |
| Maximum Lift Capacity | 10000 lb / 4535.92 kg |
| Maximum Lift Height | 42 ft 1 in. / 12.83 m |
| Operating Vehicle Weight | 27300 lb / 12383.07 kg |
| Outriggers or Stabilizers | Yes |
| Outriggers Up Lift Capacity Full Height | 6000 lb / 2721.55 kg |
| Outriggers Up Lift Capacity Full Reach | 2000 lb / 907.18 kg |
| Outriggers Up Max Forward Reach | 26 ft 7 in. / 8.1 m |
| Outside Turning Radius | 14 ft 2 in. / 4.32 m |
| Service Brake Type | Wet Multi-Disc |
| Speed - Maximum Lift | 16.4 sec. |
| Speed - Maximum Lower | 15 sec. |
| Speed - Maximum Telescope In | 15.1 sec. |
| Speed - Maximum Telescope Out | 17.2 sec. |
| Speed - Maximum Travel | 20 mph / 32.19 km/h |
| Tire Size | 400/75-28 |
| Transmission - Nr Forward Gears Standard | 4 |
| Transmission - Nr Reverse Gears | 3 |
| Transmission Type | Powershift |
| Wheelbase | 10 ft / 3.04 m |
- New, intuitive single joystick controls all boom functions
- Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
- Take a virtual tour of the SkyTrak telehandlers
| Equipment Document | View Link |
|---|
Key Specs
- Maximum Lift Capacity: 10000 lb / 4535.92 kg
- Outriggers Up Max Lift Height: 42 ft 1 in. / 12.83 m
- Maximum Lift Height: 42 ft 1 in. / 12.83 m
- Maximum Reach: 26 ft 7 in. / 8.1 m
Key Features
- New, intuitive single joystick controls all boom functions
- Maximize productivity with improved boom speeds
- Redesigned cab includes new dashboard, integrated arm rest and optional air conditioning
- Increased operator confidence with Stabil-Trak rear axle stabilization system when placing a load
- Greater job site versatility—rear counterweight includes an integrated tow hitch
- Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Take a virtual tour of the SkyTrak telehandlers
